Push-Pull Video Wall Mount for Displays Up to 120", Up to 130 kg (VSVW13-610TW) | VSYS

Screen Size Up to 120"
Max VESA 1000x600mm
Max Weight 130 kg

Need a push-pull video wall mount for a larger-format display than our standard range? Request a quote for the VSVW13-610TW below.

Overview

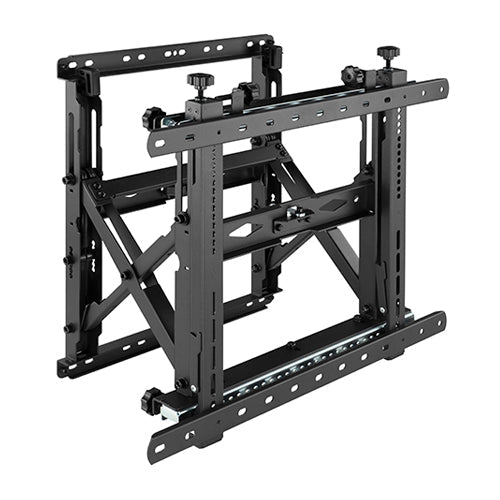

The VSVW13-610TW is the large-format sibling of our VSVW13-46T push-pull video wall mount, built for displays up to 120" and 130 kg with VESA support up to 1000x600mm. It keeps the same push-pull pop-out mechanism, portrait or landscape orientation, and anti-theft locking design, scaled up for bigger commercial video wall panels.

Key Features

Push-pull pop-out access: a push or pull on the display extends it off the wall for full rear cable access, then locks back into its slim retracted profile.
Large-format VESA support: fits VESA patterns up to 1000x600mm, covering big commercial and video wall panels.
Portrait or landscape orientation: supports both layouts for flexible video wall and digital signage planning.
Micro-adjustment: fine-tune depth and height after installation for a perfectly aligned video wall array.

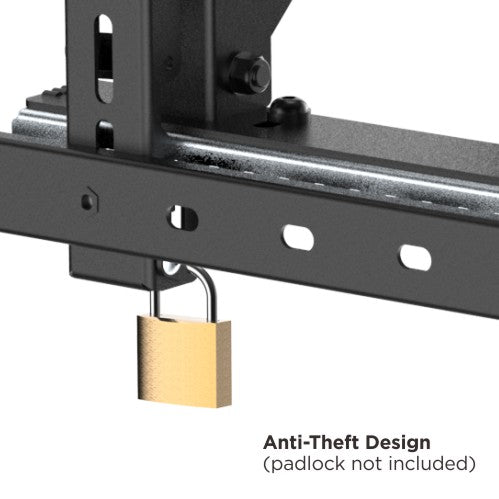

Anti-theft locking design: secures the display in place, suited to public-facing commercial installations.

Applications

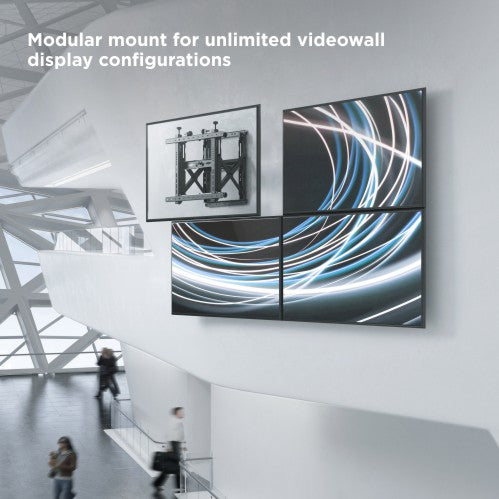

Built for large-format video wall arrays in retail, transit, and corporate lobbies, digital signage installations where panels need rear access for servicing, and any commercial display over 70" that needs push-pull convenience with a larger VESA pattern.

Installation & Setup

Mounts to a solid wall or stud array using the included wall plate and heavy-duty hardware. Given the size and weight involved, professional installation is strongly recommended and available UAE-wide on request through the quote form below.

Why Buy from Mounts.ae?

Commercial-grade mounting hardware backed by our own 1-year replacement warranty
Fast delivery across Dubai, Abu Dhabi, and the wider UAE and GCC
Optional professional installation available UAE-wide, requested on the same quote form
Dedicated support for AV integrators and facilities teams sourcing at scale
Flexible quotes for bulk, corporate, and project-based orders

Ready to fit a large-format display with push-pull convenience? Request a quote for the VSVW13-610TW today.

View full details

Technical specifications

Load capacity	Up to 130 kg
VESA compatibility	200x200mm - 1000x600mm
Screen size range	Up to 120"
Mount movement	Push-pull pop-out extension, tilt +2 to -3 degrees, portrait or landscape orientation, micro-adjustment (13.5mm depth, 13mm height)
Material	Cold-rolled steel bracket arm and wall plate, fine-texture black powder coating
Wall clearance	120mm - 325mm
Certifications	Strength tested 4x

Product details

Use the Request a Quote button on this page or message us on WhatsApp for more on the VSVW13-610TW.

Package Contents

Each VSVW13-610TW ships with the wall plate, the pop-out bracket arms, a full heavy-duty mounting hardware kit, an anti-theft lock fitting, and printed installation instructions.

Warranty

Every VSYS product from Mounts.ae is backed by a 1-year replacement warranty covering manufacturing defects and product malfunctions. This warranty does not cover damage or performance issues arising from normal usage, misuse, or improper installation. If a genuine manufacturing defect is confirmed within the warranty period, we will replace the product.

Sustainability

The VSVW13-610TW is built from cold-rolled steel, a fully recyclable material, with a durable powder-coated finish designed to resist corrosion and wear over years of use.

Expandability

The VSVW13-610TW's large VESA range (up to 1000x600mm), portrait/landscape orientation, and modular design mean it can accommodate a range of large-format display sizes and video wall layouts within its rated class.

Distribution

Mounts.ae holds VSYS stock in the UAE for fast dispatch, with delivery available across Dubai, Abu Dhabi, and the wider GCC.

For more information on the VSVW13-610TW, use the Request a Quote button on this page or message us on WhatsApp.

Frequently asked questions

What size displays does the VSVW13-610TW support?

The VSVW13-610TW is designed for large-format flat displays up to 120 inches. As long as your display falls within that range and its weight and VESA pattern match the mount's specifications, it will mount securely.

What is the maximum weight it can hold?

It carries displays up to 130 kg. The bracket is built from cold-rolled steel and strength-tested for a dependable safety margin on large, permanently installed commercial video wall panels.

How does the push-pull pop-out lock system work?

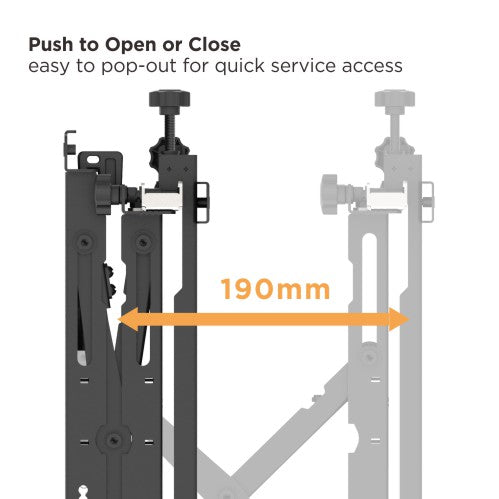

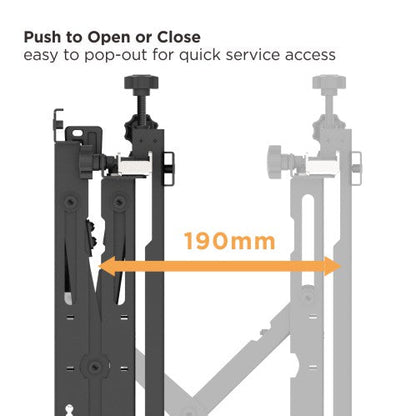

A push or pull on the display releases the pop-out mechanism, extending it off the wall for full rear access to cables and connections, with a clearance range of 120mm to 325mm. Once maintenance is done, push the display back and the lock secures it at its slim retracted profile.

What VESA patterns is it compatible with?

It supports VESA mounting patterns up to 1000x600mm, covering large-format commercial displays and video wall panels. Check the pattern on the back of your screen or in its manual to confirm the fit.

How does this compare to the smaller VSVW13-46T mount?

The VSVW13-610TW is the large-format version of the VSVW13-46T, sharing the same push-pull mechanism and anti-theft design but rated for larger displays up to 120 inches, 130 kg, and VESA patterns up to 1000x600mm, compared with the VSVW13-46T's 45-70 inch, 70 kg, 600x400mm rating.

Can it be mounted in portrait or landscape orientation?

Yes. The VSVW13-610TW supports both portrait and landscape orientation, giving installers flexibility when planning large-format video wall and digital signage layouts.

Does mounts.ae offer installation services?

Yes. Given the size and weight involved, professional installation is strongly recommended and available UAE-wide as an add-on. Select the installation option on the quote form, or mention it when messaging us on WhatsApp. See our installation services page for full details on residential and bulk installs.

Where can I buy the VSVW13-610TW in the UAE?

Directly from mounts.ae. Use the Request a Quote button on this page or message us on WhatsApp with the product name and SKU to get started.
