Heavy-Duty Extend-Out Tilt Wall Mount for 55"-105" TVs, Up to 80 kg (VS03P-610T) | VSYS

Screen Size 55" - 105"
Max VESA 1000x600mm
Max Weight 80 kg

Use the Request a Quote button on this page or message us on WhatsApp to check pricing and availability for the VS03P-610T.

Overview

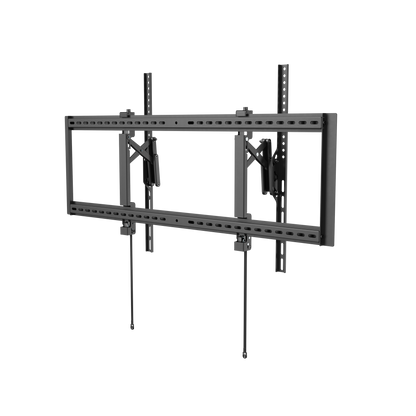

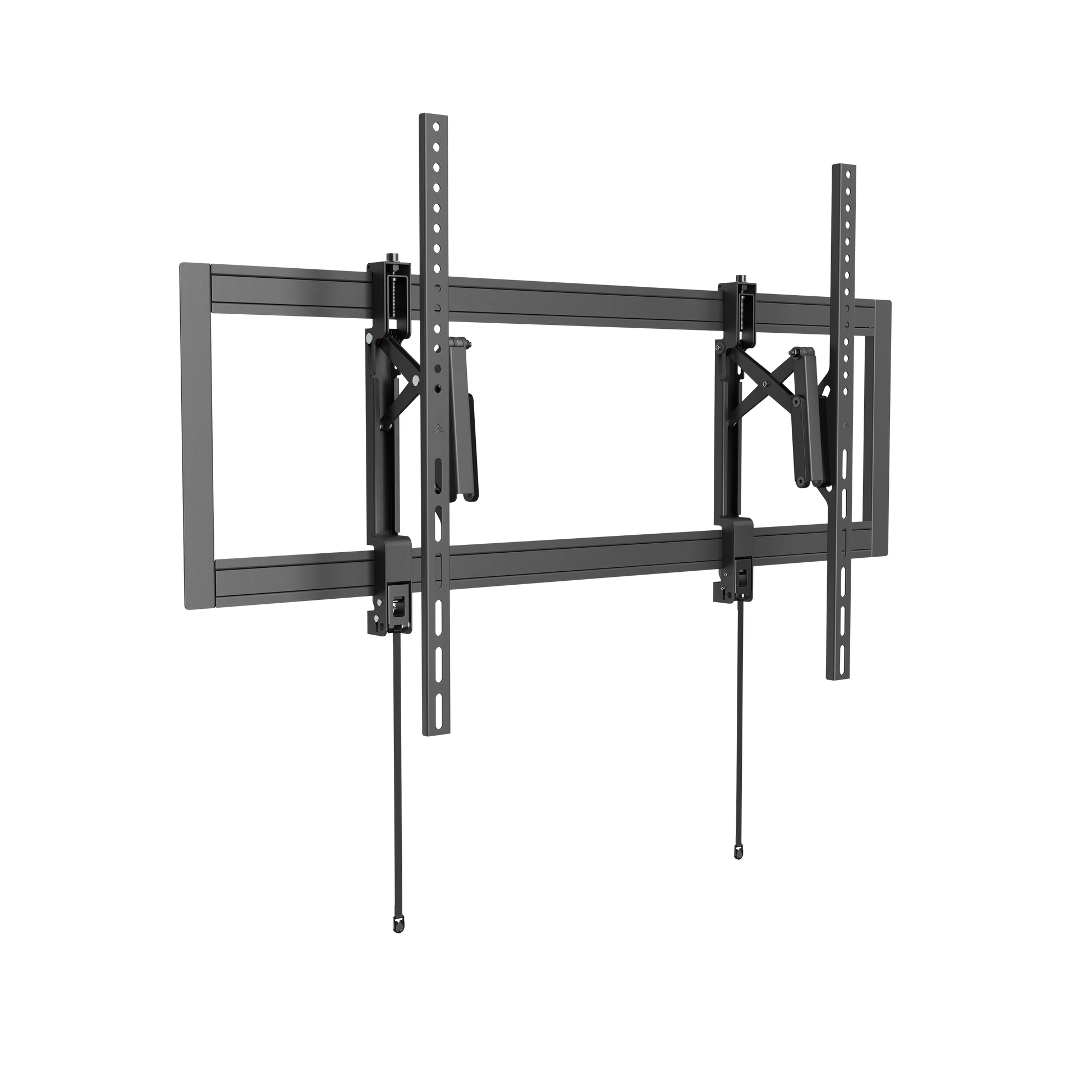

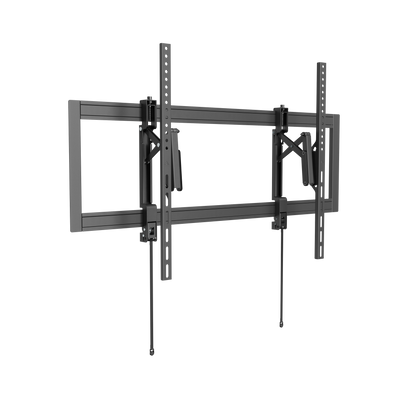

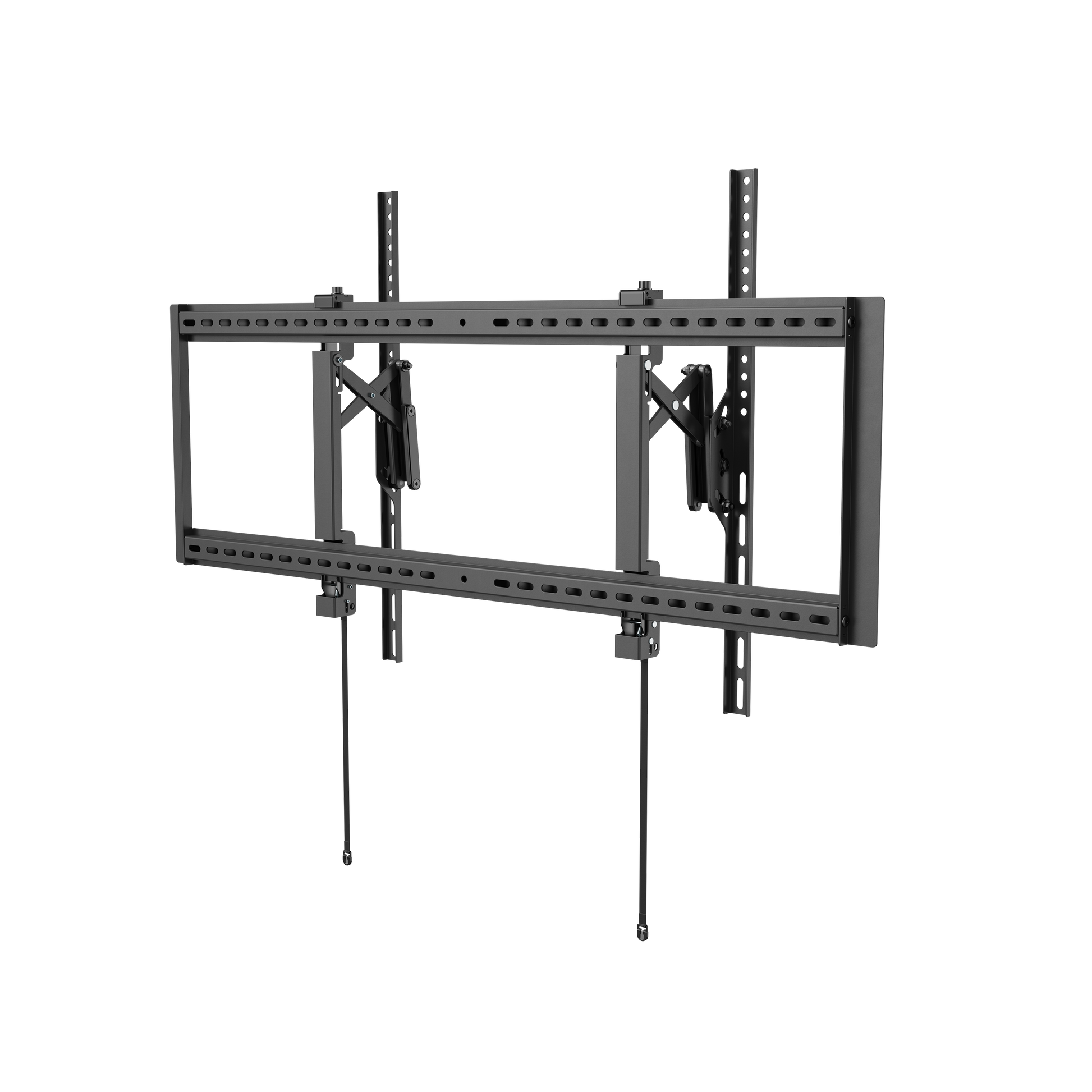

The VSYS VS03P-610T is a heavy-duty extend-out tilt wall mount built for large-format displays from 55" up to 105". A smooth extend-out structure pulls the display 172mm off the wall for full access to cabling and connections, while tilt of +10 to -15 degrees and swivel of +10 to -10 degrees let installers dial in the exact viewing angle, useful for above-fireplace or above-cabinet placements where a straight-on mount would leave the screen aimed too high.

A sliding lateral positioning design means the mount can shift left or right on its wall plate after installation, so it isn't locked to wherever the wall studs happen to fall. It carries screens up to 80 kg, and an anti-theft locking structure with quick-release spring locks adds security for public and commercial installations while keeping TV installation and removal straightforward.

Key Features

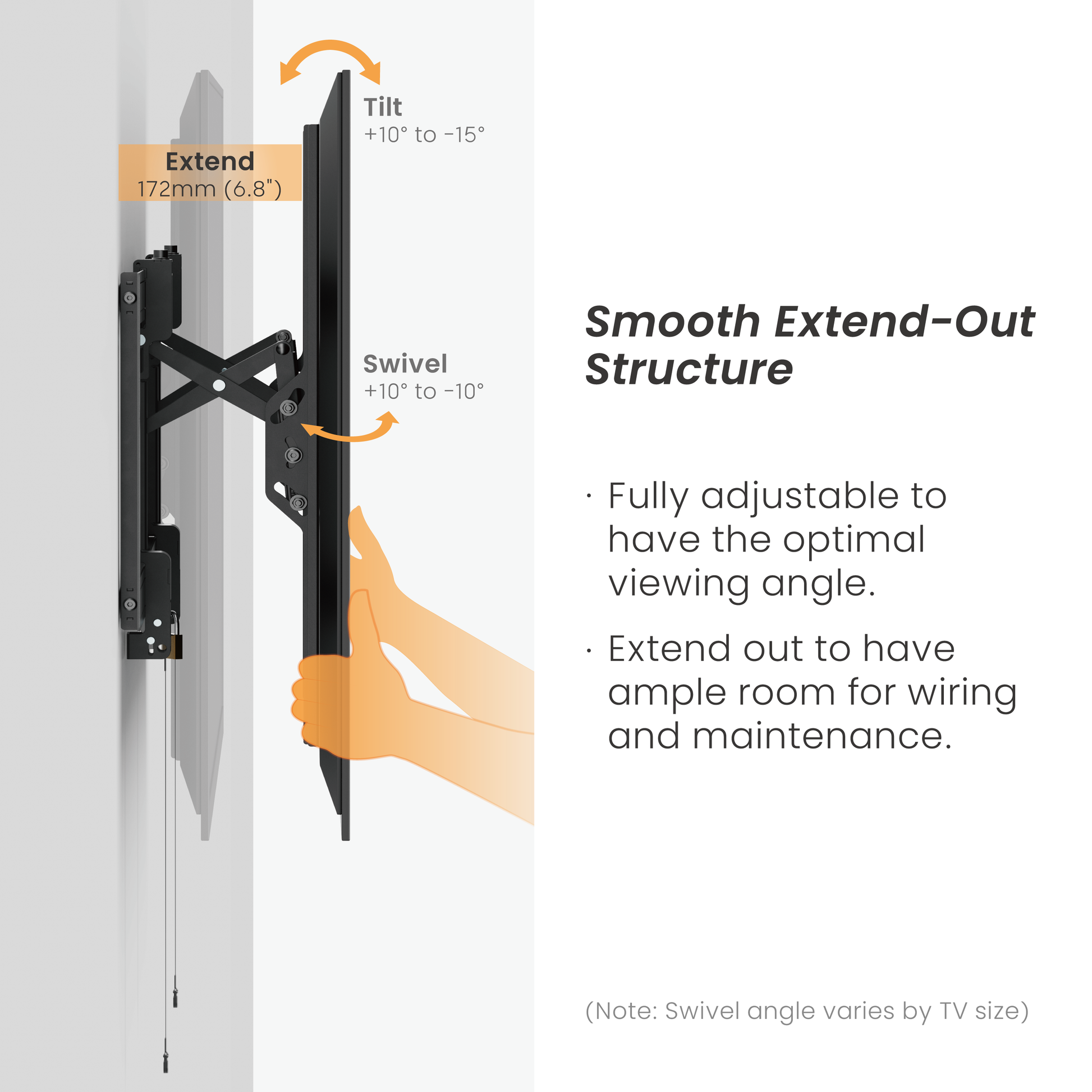

Extend-out structure: pulls the display 172mm off the wall for full access to cabling and connections, then pushes back flush.
Heavy-duty 80 kg load rating: 2mm cold-rolled steel construction, UL certified, for confident support of large commercial and residential panels.

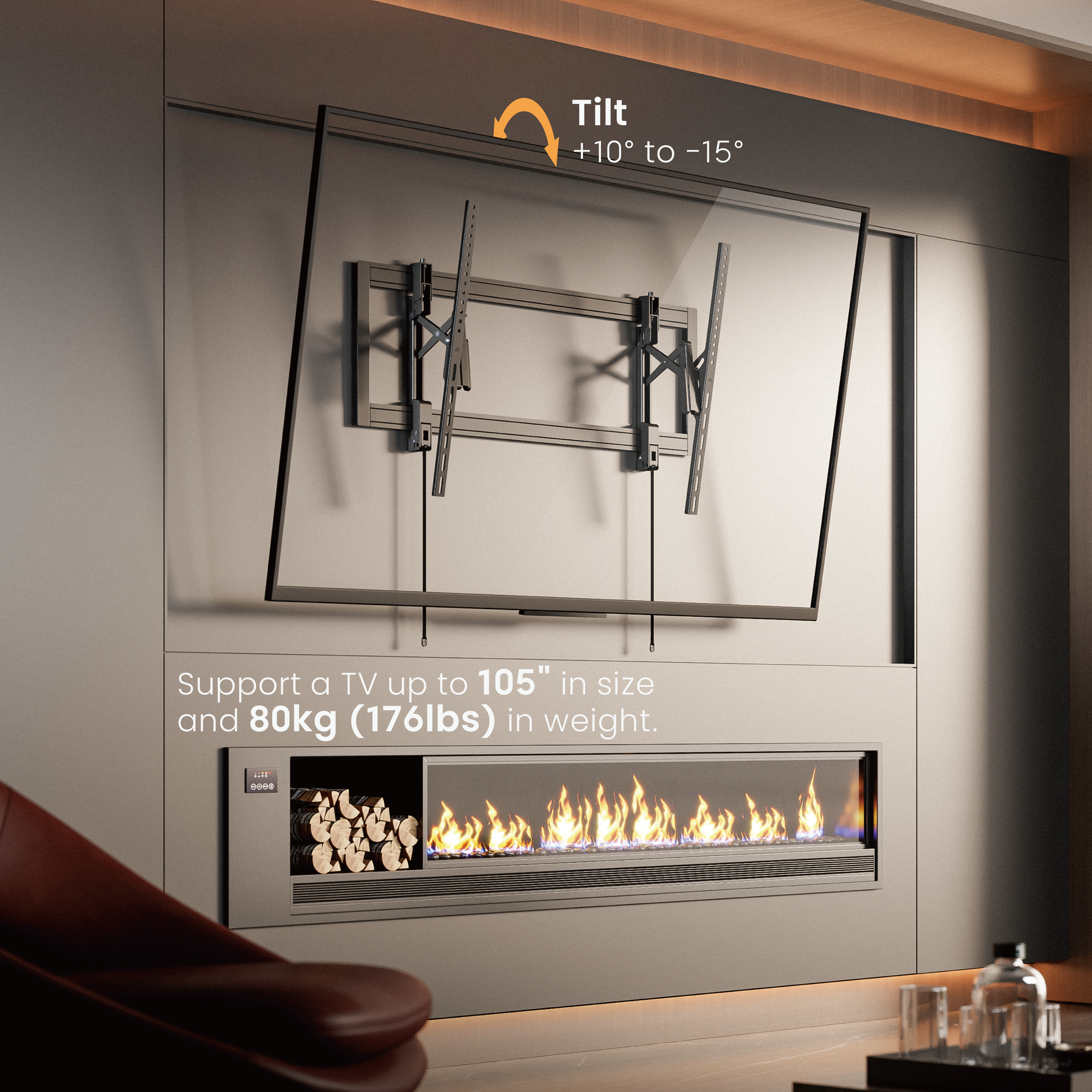

Tilt +10 to -15 degrees and swivel +10 to -10 degrees: fine-tunes the viewing angle, especially useful above fireplaces or cabinets.
Sliding lateral positioning: shifts the display left or right on the wall plate after installation, independent of wall stud spacing.

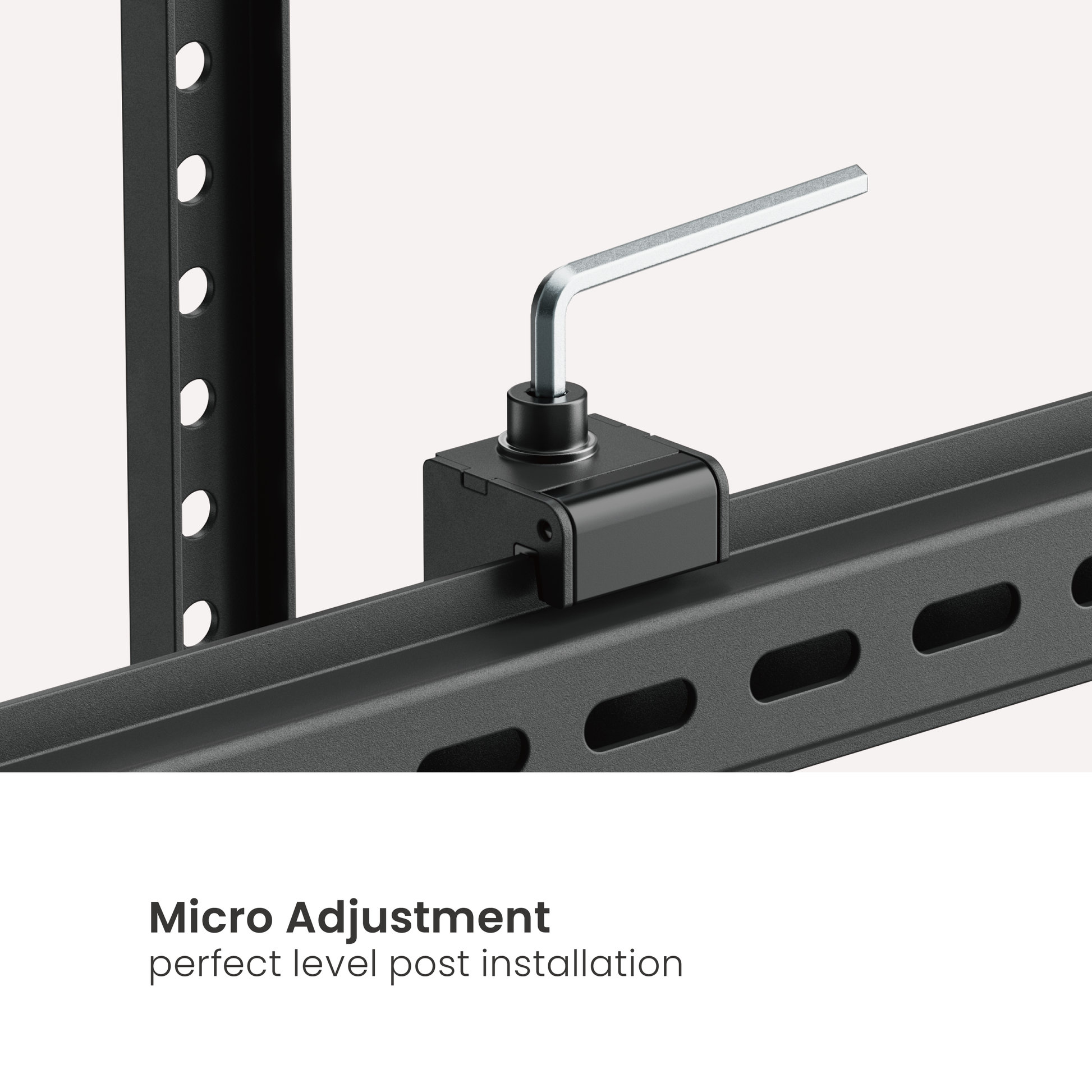

Micro-adjustment leveling: squares up the display perfectly after installation.

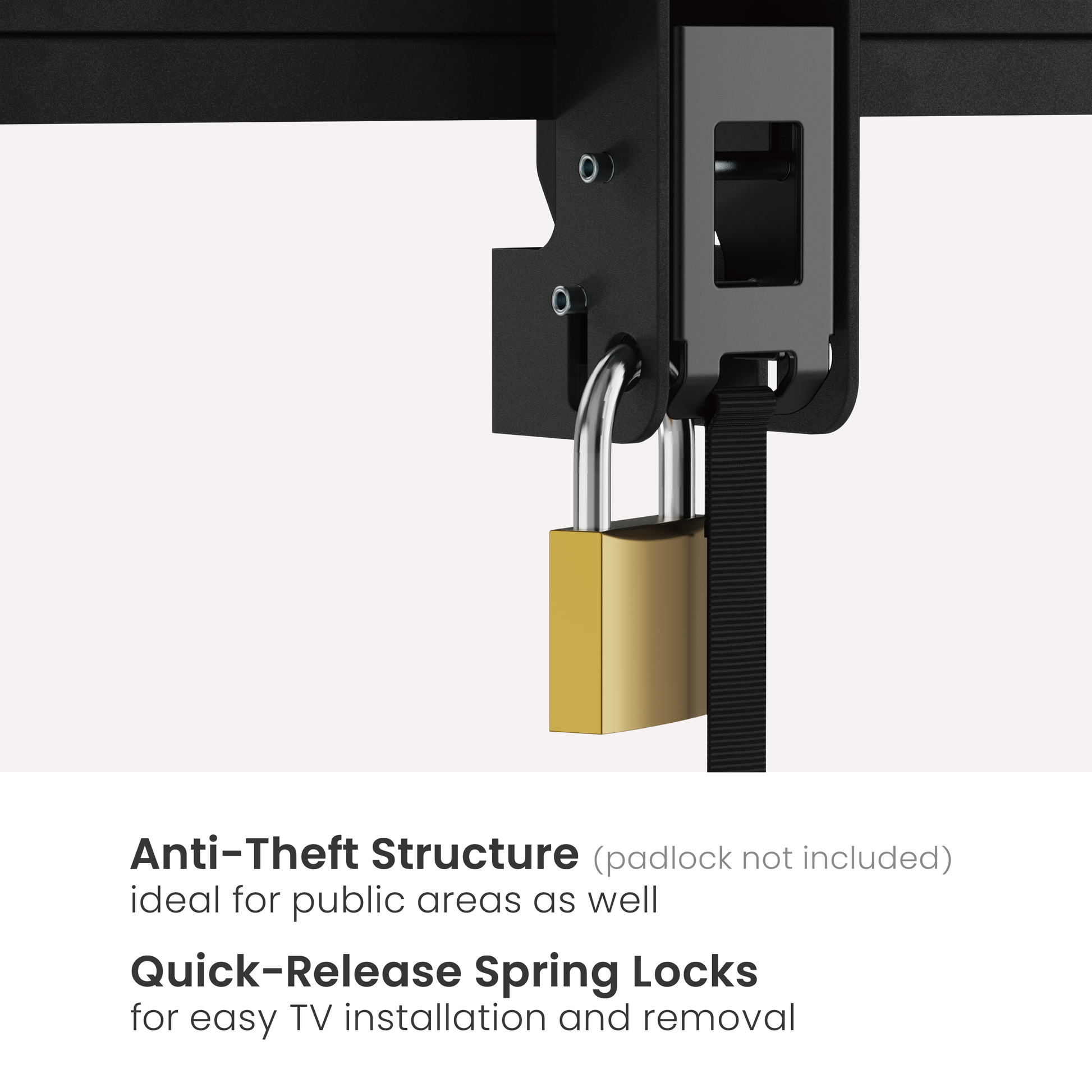

Anti-theft locking structure: adds security for public-facing and commercial installations.
Quick-release spring locks: for straightforward TV installation and removal.
Wide VESA range: supports patterns up to 1000x600mm with a max mounting hole of 1000x602mm, covering the largest displays in this size class.

Applications

The VS03P-610T is built for large-format display installations across the UAE and GCC where rear access for cabling and a fine-tuned viewing angle both matter: above-fireplace and above-cabinet TV placements, boardrooms, lobbies, showrooms, and any commercial space using 55" to 105" displays. Its extend, tilt, and swivel combination makes it well suited to spaces where the display can't be mounted at a perfectly straight-on eye level.

Because it spans a 55"-105" range, supports both solid-wall and dual-stud (406mm/450mm/600mm) installation, and carries up to 80 kg, a single mount model covers a broad mix of large displays and wall types across a project, simplifying specification for integrators.

Installation & Setup

Fix the wall plate to a solid wall or across dual studs (406mm, 450mm, or 600mm spacing) using the appropriate fixings, then attach the bracket arms to the display's VESA points using the quick-release spring locks. Use the sliding lateral positioning and micro-adjustment leveling to square up the panel, then pull the display out for cable access, or push it back and tilt or swivel it into the ideal viewing angle. No specialist tools are needed beyond the included hardware.

If you'd rather not handle the installation yourself, mounts.ae also offers professional installation across the UAE. Simply select the installation option when you submit the quote form.

Why Buy the VS03P-610T from Mounts.ae?

Genuine VSYS build quality, backed by our own warranty support
Fast delivery across Dubai, Abu Dhabi, and the wider UAE/GCC
Optional professional installation available UAE-wide, request it on the same quote form
Dedicated guidance for AV integrators, system integrators, and facilities teams sourcing at scale
Flexible quotes for bulk, corporate, and project-based orders

For project quantities or full technical documentation, use the Request a Quote button on this page or message us on WhatsApp.

View full details

Technical specifications

Load capacity	80 kg (176 lbs)
VESA compatibility	200x200mm - 1000x600mm (max mounting hole 1000x602mm)
Screen size range	55" - 105"
Mount movement	Push-pull extension 172mm, tilt +10 to -15 degrees, swivel +10 to -10 degrees, sliding lateral positioning
Material	2mm cold-rolled steel, powder-coated black
Wall clearance	53mm - 172mm (2.1" - 6.8")
Certifications	UL certified

Product details

Use the Request a Quote button on this page or message us on WhatsApp for more on the VS03P-610T.

Package Contents

Each VS03P-610T ships with the wall plate, the extend-out bracket arms, a full mounting hardware kit for solid-wall or dual-stud installation, an anti-theft lock fitting, and printed installation instructions.

Warranty

Every VSYS product from Mounts.ae is backed by a 1-year replacement warranty covering manufacturing defects and product malfunctions. This warranty does not cover damage or performance issues arising from normal usage, misuse, or improper installation. If a genuine manufacturing defect is confirmed within the warranty period, we will replace the product.

Sustainability

The VS03P-610T is built from cold-rolled steel, a fully recyclable material, with a durable powder-coated finish designed to resist corrosion and wear over years of use, reducing the need for replacement.

Expandability

The VS03P-610T's wide VESA range (up to 1000x600mm) and sliding lateral positioning mean it can accommodate a range of large display sizes and wall layouts within its rated class, giving you flexibility as an installation grows.

Distribution

Mounts.ae holds VSYS stock in the UAE for fast dispatch, with delivery available across Dubai, Abu Dhabi, and the wider GCC.

For more information on the VS03P-610T, use the Request a Quote button on this page or message us on WhatsApp.

Frequently asked questions

What size TVs and displays does this extend-out tilt mount support?

The VS03P-610T is designed for large-format flat displays from 55 up to 105 inches. As long as your screen falls within that size range and its weight and VESA pattern match the mount's specifications, it will mount securely.

What is the maximum weight it can hold?

It carries displays up to 80 kg (176 lbs). The bracket is built from 2mm cold-rolled steel and is UL certified, giving a dependable safety margin for large, permanently installed panels.

How far does the extend-out mechanism extend the display from the wall?

The extend-out structure pulls the display 172mm off the wall for full access to cabling and connections, then pushes back to a slimmer profile once the work is done.

Can this mount tilt and swivel the display?

Yes. It tilts from +10 to -15 degrees and swivels from +10 to -10 degrees, letting you dial in the exact viewing angle. This is especially useful for above-fireplace or above-cabinet placements where a straight-on mount would aim the screen too high.

What VESA patterns is it compatible with?

It supports VESA mounting patterns up to 1000x600mm, with a maximum mounting hole of 1000x602mm. That range covers most 55 to 105 inch displays; check the pattern on the back of your screen or in its manual to confirm the fit.

Does it need to be installed on wall studs in a specific position?

No. Its sliding lateral positioning design lets the mount shift left or right on the wall plate after installation, so it isn't locked to wherever the wall studs happen to fall. It also supports solid-wall or dual-stud installation at 406mm, 450mm, or 600mm spacing.

Does mounts.ae offer installation services?

Yes. Mounts.ae offers professional installation across the UAE as an add-on to your order. Simply select the installation option when you submit the Request a Quote form, or mention it when you message us on WhatsApp, and we'll include it in your quote alongside the mount itself. See our installation services page for full details on residential and bulk installs.

How do I order this for a bulk or project installation?

Use the Request a Quote button on this page, or message us on WhatsApp with your quantity and project details. We supply system integrators and businesses on a project basis across the UAE and GCC, and we'll follow up with next steps for your requirement.

Where can I buy VSYS TV wall mounts?

VSYS TV wall mounts are available through mounts.ae, based in the UAE and serving system integrators and businesses across the UAE and GCC. Use the Request a Quote button on this page, or message mounts.ae directly on WhatsApp, to get started with your order or enquiry.
