Push-Pull Video Wall Mount for 45"-70" TVs, Up to 70 kg (VSVW13-46T) | VSYS

Screen Size 45" - 70"
Max VESA 600x400mm
Max Weight 70 kg

Use the Request a Quote button on this page or message us on WhatsApp to check pricing and availability for the VSVW13-46T.

Overview

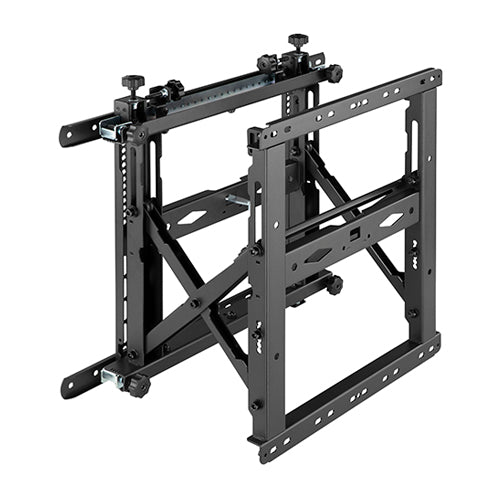

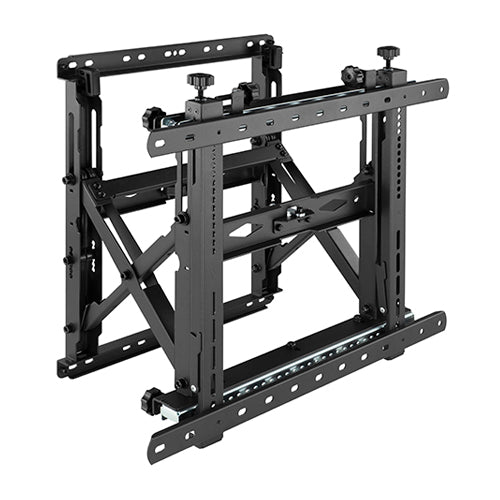

The VSYS VSVW13-46T is a push-pull pop-out video wall mount built for displays from 45" up to 70" in modular multi-screen video wall installations. A pop-out lock system extends the display off the wall for full rear access to cabling, then locks back to a slim retracted profile once the work is done, keeping the finished array flush and clean.

Micro-adjustment of 13.5mm in depth and 13mm in height lets installers square up each panel precisely within the array, and the mount supports both portrait and landscape orientation for flexible video wall layouts. An anti-theft locking design adds security for public and commercial installations, and it carries screens up to 70 kg, making it a dependable choice for larger-format panels in permanent video wall deployments.

Key Features

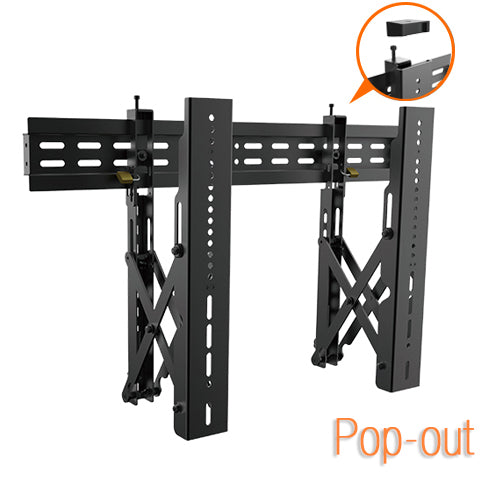

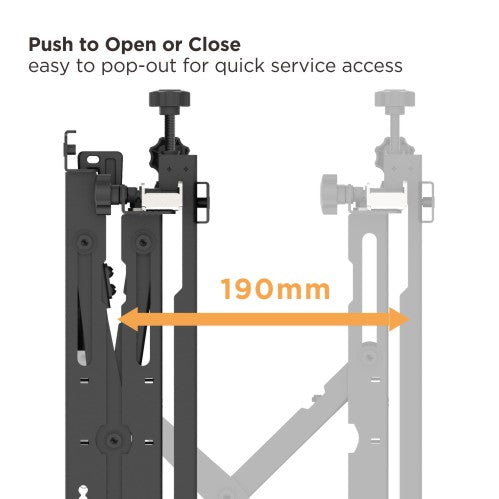

Push-pull pop-out lock system: extends off the wall with a simple push or pull for full rear cable access, then locks back flush for a slim installed profile.
Heavy-duty 70 kg load rating: steel bracket construction, strength-tested four times, for confident support of larger commercial panels.
Micro-adjustment: 13.5mm depth and 13mm height fine adjustment for precise panel alignment within a video wall array.
Portrait or landscape orientation: mounts displays either way for flexible video wall and signage layouts.

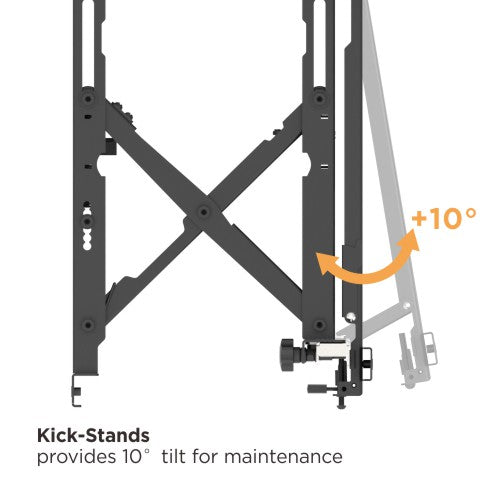

Toolless tilt, +2 to -3 degrees: fine-tunes the viewing angle after installation.

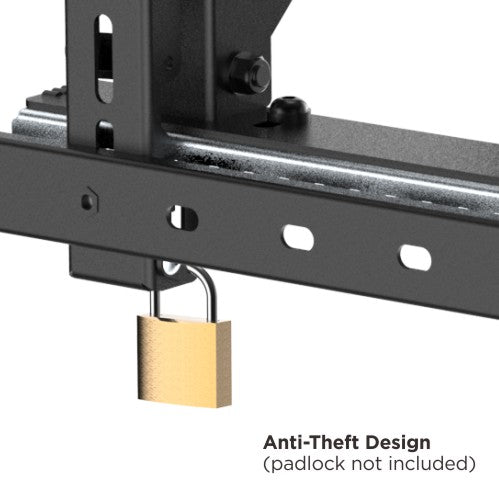

Anti-theft locking design: adds security for public-facing and commercial video wall installations.
Wide VESA range: supports patterns up to 600x400mm with a max mounting hole of 604x405mm, covering most large-format displays in this size class.

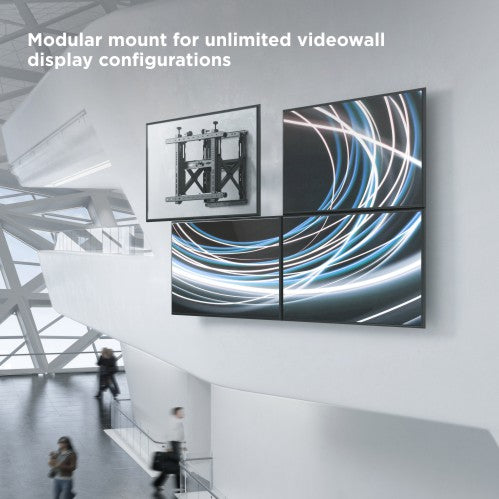

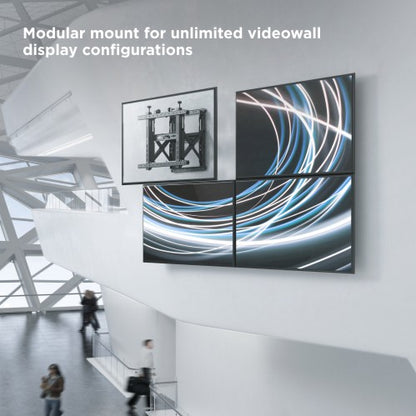

Modular system: built for unlimited video wall configurations across rows and columns.

Applications

The VSVW13-46T is built for video wall and digital signage installations across the UAE and GCC where rear access for cabling and maintenance matters: retail video walls, control rooms, exhibition and event displays, and multi-screen signage in malls, hotels, and corporate lobbies. Its pop-out lock system is especially valuable in tight video wall arrays where screens sit close together and need occasional access from behind.

Because it spans a 45"-70" range, supports both portrait and landscape orientation, and carries up to 70 kg, a single mount model covers a broad mix of larger displays and layouts across a project, simplifying specification for integrators building out multi-panel video walls.

Installation & Setup

Fix the wall plate to a solid wall using the appropriate fixings, then attach the bracket arms to the display's VESA points in either portrait or landscape orientation. Use the micro-adjustment knobs to square up the panel within the array, then push or pull the display to pop it out for cable access, or lock it back to its slim retracted profile. No specialist tools are needed beyond the included hardware.

If you'd rather not handle the installation yourself, mounts.ae also offers professional installation across the UAE. Simply select the installation option when you submit the quote form.

Why Buy the VSVW13-46T from Mounts.ae?

Genuine VSYS build quality, backed by our own warranty support
Fast delivery across Dubai, Abu Dhabi, and the wider UAE/GCC
Optional professional installation available UAE-wide, request it on the same quote form
Dedicated guidance for AV integrators, system integrators, and facilities teams sourcing at scale
Flexible quotes for bulk, corporate, and project-based orders

For project quantities or full technical documentation, use the Request a Quote button on this page or message us on WhatsApp.

View full details

Technical specifications

Load capacity	70 kg (154 lbs)
VESA compatibility	200x200mm - 600x400mm (max mounting hole 604x405mm)
Screen size range	45" - 70"
Mount movement	Push-pull pop-out extension, tilt +2 to -3 degrees, portrait or landscape orientation, micro-adjustment (13.5mm depth, 13mm height)
Material	2mm cold-rolled steel bracket arm, 2.5mm steel wall plate, fine-texture black powder coating
Wall clearance	120mm - 325mm (4.7" - 12.8")
Certifications	Strength tested 4x

Product details

Use the Request a Quote button on this page or message us on WhatsApp for more on the VSVW13-46T.

Package Contents

Each VSVW13-46T ships with the wall plate, the pop-out bracket arms, a full mounting hardware kit, an anti-theft lock fitting, and printed installation instructions.

Warranty

Every VSYS product from Mounts.ae is backed by a 1-year replacement warranty covering manufacturing defects and product malfunctions. This warranty does not cover damage or performance issues arising from normal usage, misuse, or improper installation. If a genuine manufacturing defect is confirmed within the warranty period, we will replace the product.

Sustainability

The VSVW13-46T is built from cold-rolled steel, a fully recyclable material, with a durable powder-coated finish designed to resist corrosion and wear over years of use, reducing the need for replacement.

Expandability

The VSVW13-46T's wide VESA range (up to 600x400mm), portrait/landscape orientation, and modular design mean it can accommodate a range of display sizes and video wall layouts within its rated class, giving you flexibility as an installation grows.

Distribution

Mounts.ae holds VSYS stock in the UAE for fast dispatch, with delivery available across Dubai, Abu Dhabi, and the wider GCC.

For more information on the VSVW13-46T, use the Request a Quote button on this page or message us on WhatsApp.

Frequently asked questions

What size TVs and displays does this push-pull mount support?

The VSVW13-46T is designed for flat displays from 45 up to 70 inches. As long as your screen falls within that size range and its weight and VESA pattern match the mount's specifications, it will mount securely, covering most large-format video wall and signage displays in this class.

What is the maximum weight it can hold?

It carries displays up to 70 kg (154 lbs). The bracket is built from cold-rolled steel and strength-tested four times, giving a dependable safety margin for larger, permanently installed commercial video wall panels.

How does the push-pull pop-out lock system work?

A push or pull on the display releases the pop-out mechanism, extending it off the wall for full rear access to cables and connections, with a clearance range of 120mm to 325mm. Once maintenance is done, push the display back and the lock secures it at its slim retracted profile.

What VESA patterns is it compatible with?

It supports VESA mounting patterns up to 600x400mm, with a maximum mounting hole of 604x405mm. That range covers most 45 to 70 inch displays; check the pattern on the back of your screen or in its manual to confirm the fit.

Which TV and display brands does this mount work with?

Because it covers VESA patterns up to 600x400mm and up to 70 kg, it fits most 45 to 70 inch displays from major brands including Samsung, LG, Sony, and commercial signage manufacturers. Always check your display's VESA pattern and weight in its manual, or send us the model number to confirm.

Can it be mounted in portrait or landscape orientation?

Yes. The VSVW13-46T supports both portrait and landscape orientation, giving installers flexibility when planning video wall and digital signage layouts across a project.

Does mounts.ae offer installation services?

Yes. Mounts.ae offers professional installation across the UAE as an add-on to your order. Simply select the installation option when you submit the Request a Quote form, or mention it when you message us on WhatsApp, and we'll include it in your quote alongside the mount itself. See our installation services page for full details on residential and bulk installs.

How do I order this for a bulk or project installation?

Use the Request a Quote button on this page, or message us on WhatsApp with your quantity and project details. We supply system integrators and businesses on a project basis across the UAE and GCC, and we'll follow up with next steps for your requirement.

Where can I buy VSYS video wall mounts?

VSYS video wall mounts are available through mounts.ae, based in the UAE and serving system integrators and businesses across the UAE and GCC. Use the Request a Quote button on this page, or message mounts.ae directly on WhatsApp, to get started with your order or enquiry.
