Push-Pull Video Wall Mount for 37"-70" TVs, Up to 45 kg (VSVW02-46T) | VSYS

Screen Size 37" - 70"
Max VESA 600x400mm
Max Weight 45 kg

Use the Request a Quote button on this page or message us on WhatsApp to check pricing and availability for the VSVW02-46T.

Overview

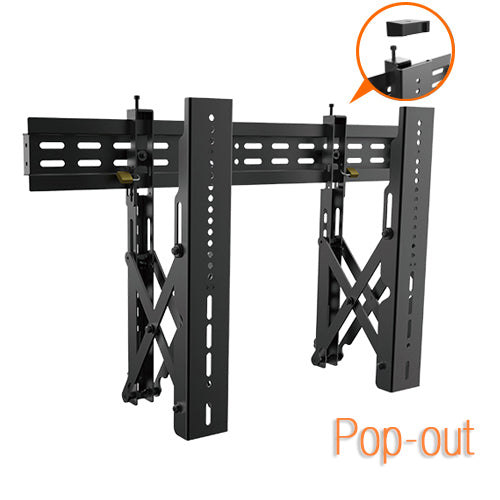

The VSYS VSVW02-46T is a push-pull pop-out video wall mount built for displays from 37" up to 70" in tightly spaced video wall and digital signage installations. A simple press releases the pop-out mechanism, extending the display 215mm off the wall for full rear access, then a quick-lock pulls it back to a slim 68mm profile once maintenance is done.

Lateral shift brackets and built-in leveling adjustment let installers align each panel precisely within a multi-screen array, and an anti-theft locking hole adds security for public and commercial installations. It carries screens up to 45 kg, making it a dependable choice for permanent video wall deployments that need occasional rear access.

Key Features

Push-pull pop-out mechanism: extends 215mm from the wall with a simple press, then locks back to a slim 68mm profile.
Heavy-duty 45 kg load rating: cold-rolled steel construction, strength-tested four times, for confident support of commercial panels.
Lateral shift brackets: align each screen precisely within a multi-panel video wall array.
Leveling adjustment: squares up the display after installation.
Toolless tilt, +3 to -3 degrees: fine-tunes the viewing angle across the array.
Anti-theft locking hole: adds security for public-facing and commercial video wall installations.
Wide VESA range: supports patterns from 200x200mm up to 600x400mm, covering most displays in this size class.

Applications

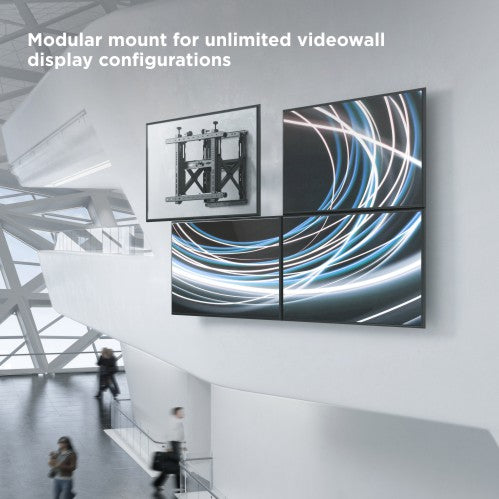

The VSVW02-46T is built for video wall and digital signage installations across the UAE and GCC where rear access for cabling and maintenance matters: retail video walls, control rooms, exhibition and event displays, and multi-screen signage in malls, hotels, and corporate lobbies. Its pop-out design is especially valuable in tight video wall arrays where screens sit close together.

Because it spans a 37"-70" range and a wide VESA window, a single mount model covers a broad mix of screen sizes across a project, simplifying specification for integrators building out multi-panel displays.

Installation & Setup

Fix the wall plate to a solid wall using the appropriate fixings, then attach the bracket arms to the display's VESA points. Use the lateral shift brackets and leveling adjustment to align the panel within the array, then press to pop the display out for cable access or push and lock it back to its slim retracted profile. No specialist tools are needed beyond the included hardware.

If you'd rather not handle the installation yourself, mounts.ae also offers professional installation across the UAE. Simply select the installation option when you submit the quote form.

Why Buy the VSVW02-46T from Mounts.ae?

Genuine VSYS build quality, backed by our own warranty support
Fast delivery across Dubai, Abu Dhabi, and the wider UAE/GCC
Optional professional installation available UAE-wide, request it on the same quote form
Dedicated guidance for AV integrators, system integrators, and facilities teams sourcing at scale
Flexible quotes for bulk, corporate, and project-based orders

For project quantities or full technical documentation, use the Request a Quote button on this page or message us on WhatsApp.

View full details

Technical specifications

Load capacity	45 kg (99 lbs)
VESA compatibility	200x200mm - 600x400mm
Screen size range	37" - 70"
Mount movement	Push-pull pop-out extension, tilt +3 to -3 degrees, lateral shift, leveling adjustment
Material	2mm-2.5mm cold-rolled steel, powder-coated black
Wall clearance	68mm retracted, 215mm extended (2.7"-8.5")
Certifications	Strength tested 4x

Product details

Use the Request a Quote button on this page or message us on WhatsApp for more on the VSVW02-46T.

Package Contents

Each VSVW02-46T ships with the wall plate, the pop-out bracket arms, a full mounting hardware kit, an anti-theft lock fitting, and printed installation instructions.

Warranty

Every VSYS product from Mounts.ae is backed by a 1-year replacement warranty covering manufacturing defects and product malfunctions. This warranty does not cover damage or performance issues arising from normal usage, misuse, or improper installation. If a genuine manufacturing defect is confirmed within the warranty period, we will replace the product.

Sustainability

The VSVW02-46T is built from cold-rolled steel, a fully recyclable material, with a durable powder-coated finish designed to resist corrosion and wear over years of use, reducing the need for replacement.

Expandability

The VSVW02-46T's wide VESA range (200x200mm to 600x400mm) and lateral shift brackets mean it can accommodate a range of display sizes and video wall layouts within its rated class, giving you flexibility as an installation grows.

Distribution

Mounts.ae holds VSYS stock in the UAE for fast dispatch, with delivery available across Dubai, Abu Dhabi, and the wider GCC.

For more information on the VSVW02-46T, use the Request a Quote button on this page or message us on WhatsApp.

Frequently asked questions

What size TVs and displays does this push-pull mount support?

The VSVW02-46T is designed for flat displays from 37 up to 70 inches. As long as your screen falls within that size range and its weight and VESA pattern match the mount's specifications, it will mount securely, covering most video wall and signage displays in this class.

What is the maximum weight it can hold?

It carries displays up to 45 kg (99 lbs). The bracket is made from cold-rolled steel and strength-tested four times, giving a dependable safety margin for permanently installed commercial video wall panels.

How does the push-pull pop-out mechanism work?

A simple press releases the display and extends it 215mm off the wall for full rear access to cables and connections. Once maintenance is done, push the display back and the quick-lock secures it at a slim 68mm retracted profile.

What VESA patterns is it compatible with?

It supports VESA mounting patterns from 200x200mm up to 600x400mm. That range covers most 37 to 70 inch displays; check the pattern on the back of your screen or in its manual to confirm the fit.

Which TV and display brands does this mount work with?

Because it covers VESA patterns up to 600x400mm and up to 45 kg, it fits most 37 to 70 inch displays from major brands including Samsung, LG, Sony, and commercial signage manufacturers. Always check your display's VESA pattern and weight in its manual, or send us the model number to confirm.

Can it be aligned precisely within a video wall array?

Yes. Lateral shift brackets let you slide the panel left or right, and a built-in leveling adjustment squares it up, so each screen lines up precisely with its neighbours in a multi-panel video wall.

Does mounts.ae offer installation services?

Yes. Mounts.ae offers professional installation across the UAE as an add-on to your order. Simply select the installation option when you submit the Request a Quote form, or mention it when you message us on WhatsApp, and we'll include it in your quote alongside the mount itself. See our installation services page for full details on residential and bulk installs.

How do I order this for a bulk or project installation?

Use the Request a Quote button on this page, or message us on WhatsApp with your quantity and project details. We supply system integrators and businesses on a project basis across the UAE and GCC, and we'll follow up with next steps for your requirement.

Where can I buy VSYS video wall mounts?

VSYS video wall mounts are available through mounts.ae, based in the UAE and serving system integrators and businesses across the UAE and GCC. Use the Request a Quote button on this page, or message mounts.ae directly on WhatsApp, to get started with your order or enquiry.
