X-Large Heavy-Duty Tilt TV Wall Mount for 60"-100" Displays, Up to 100 kg (VS01XL-810T) | VSYS

Screen Size 60" - 100"
Max VESA 1000x800mm
Max Weight 100 kg

Use the Request a Quote button on this page or message us on WhatsApp to check pricing and availability for the VS01XL-810T.

Overview

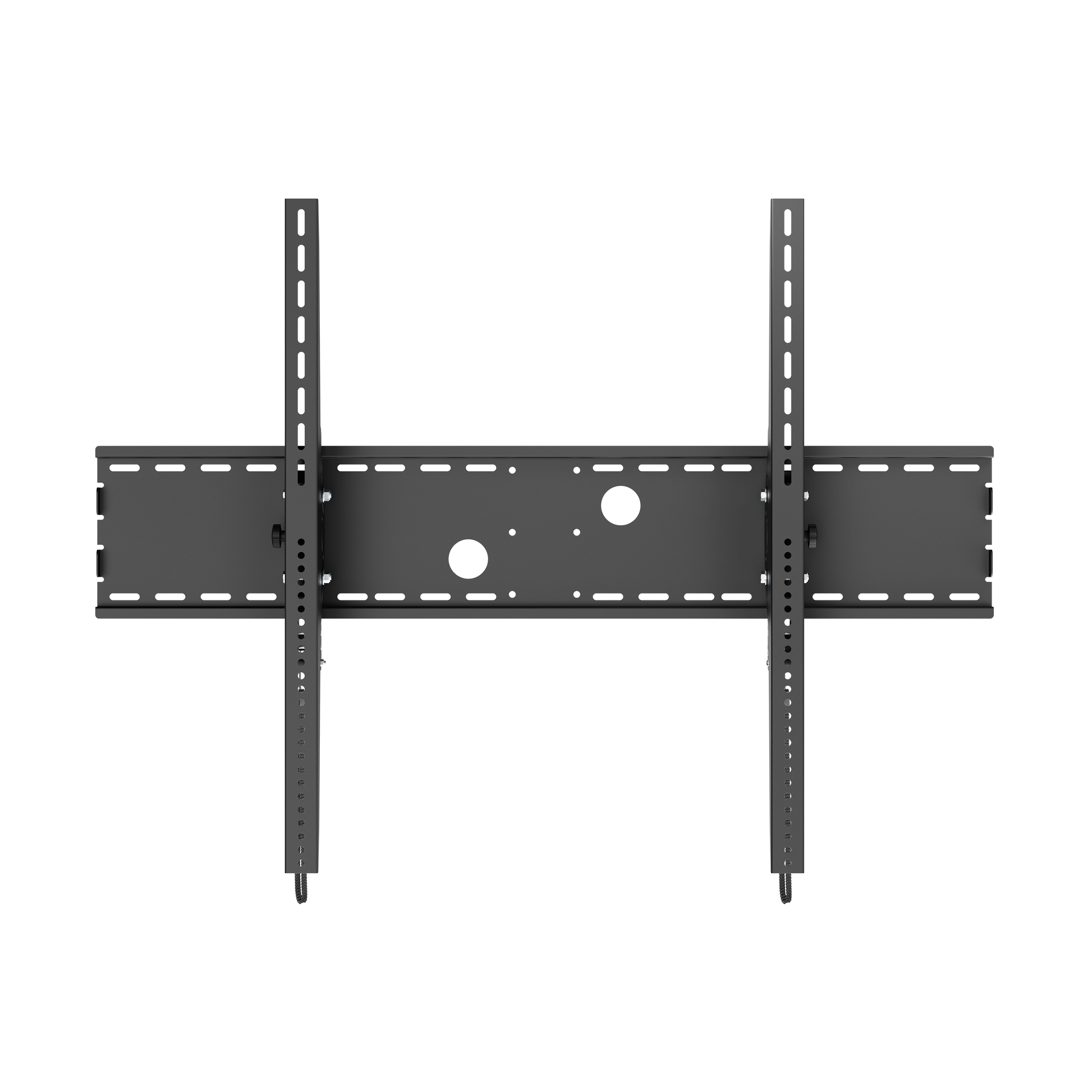

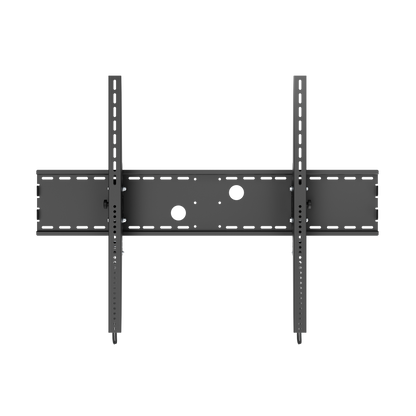

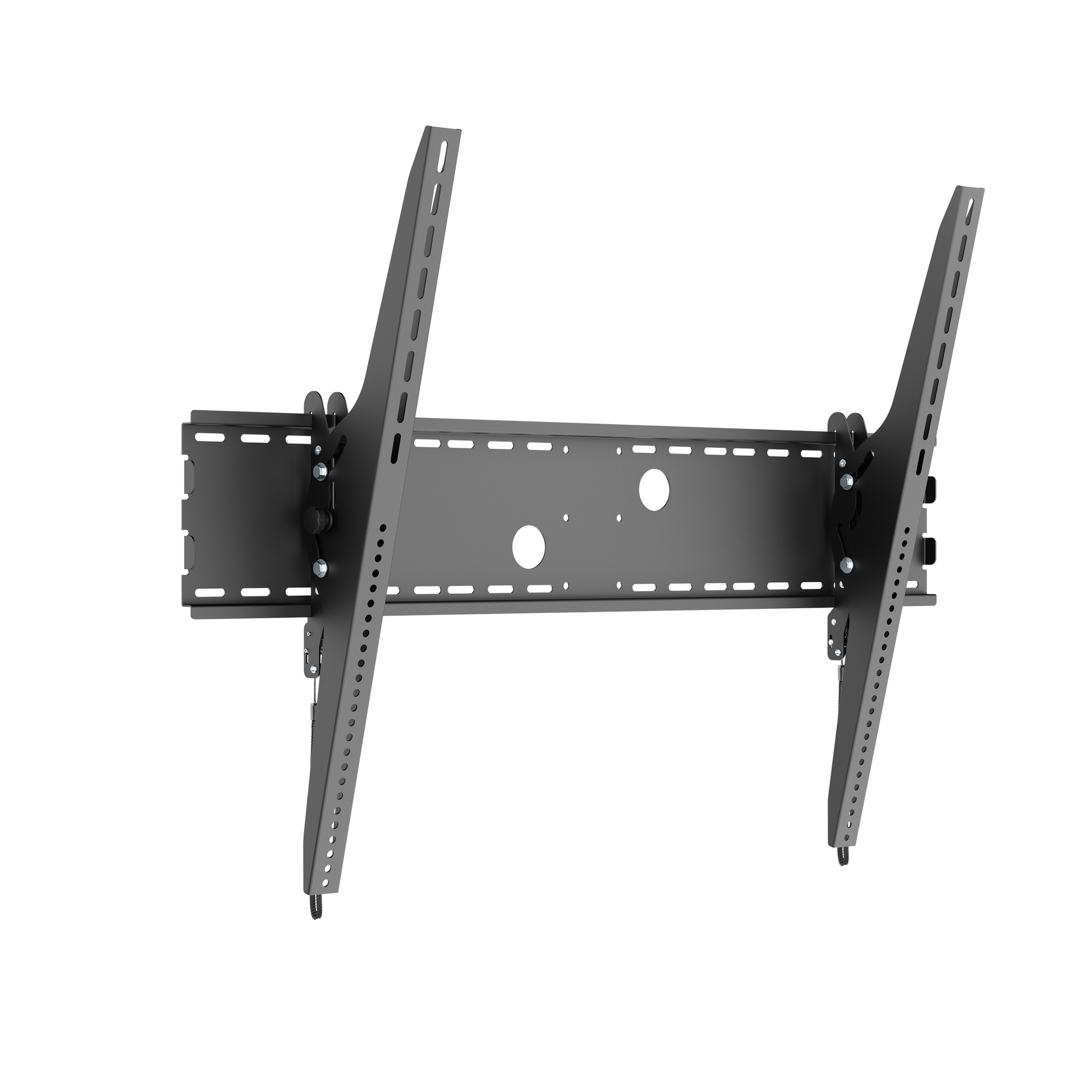

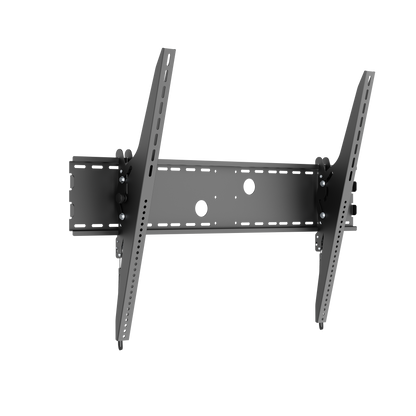

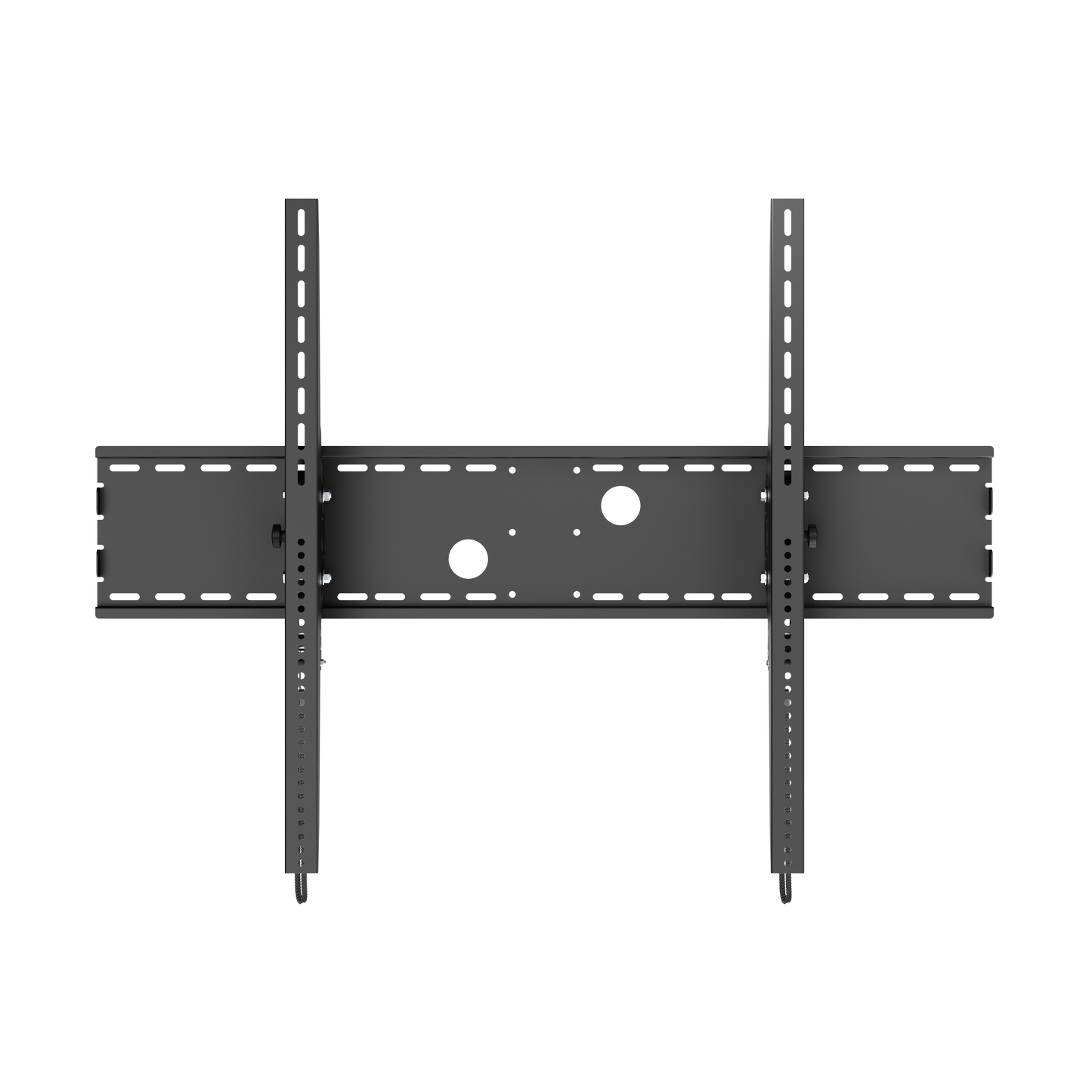

The VSYS VS01XL-810T is an extra-large heavy-duty tilt wall mount built for big-format displays from 60" up to 100", with a toolless tilt of up to 15 degrees in either direction. Made from 2mm powder-coated steel and UL-approved with a four-times strength-tested load rating, it holds screens up to 100 kg and features lateral shift brackets that let installers slide the display sideways to centre it perfectly on the wall after mounting.

A generous ±15° tilt range, wider than a standard tilt mount, makes it ideal for large screens placed high on a wall, and a quick-release spring-lock system with pull cords lets installers detach even a large panel for rear access. The wide, deep bracket structure spreads the load securely across dual studs.

Key Features

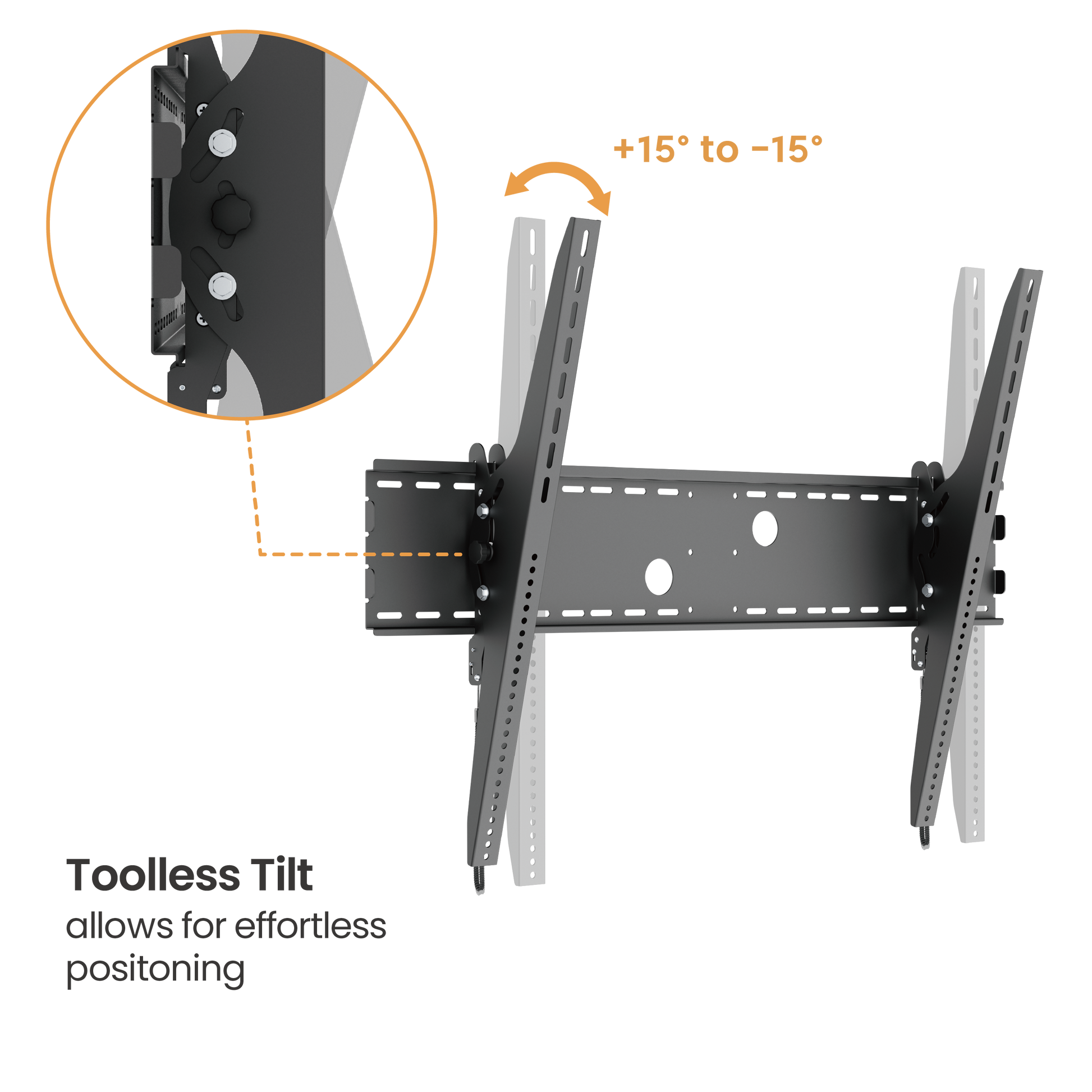

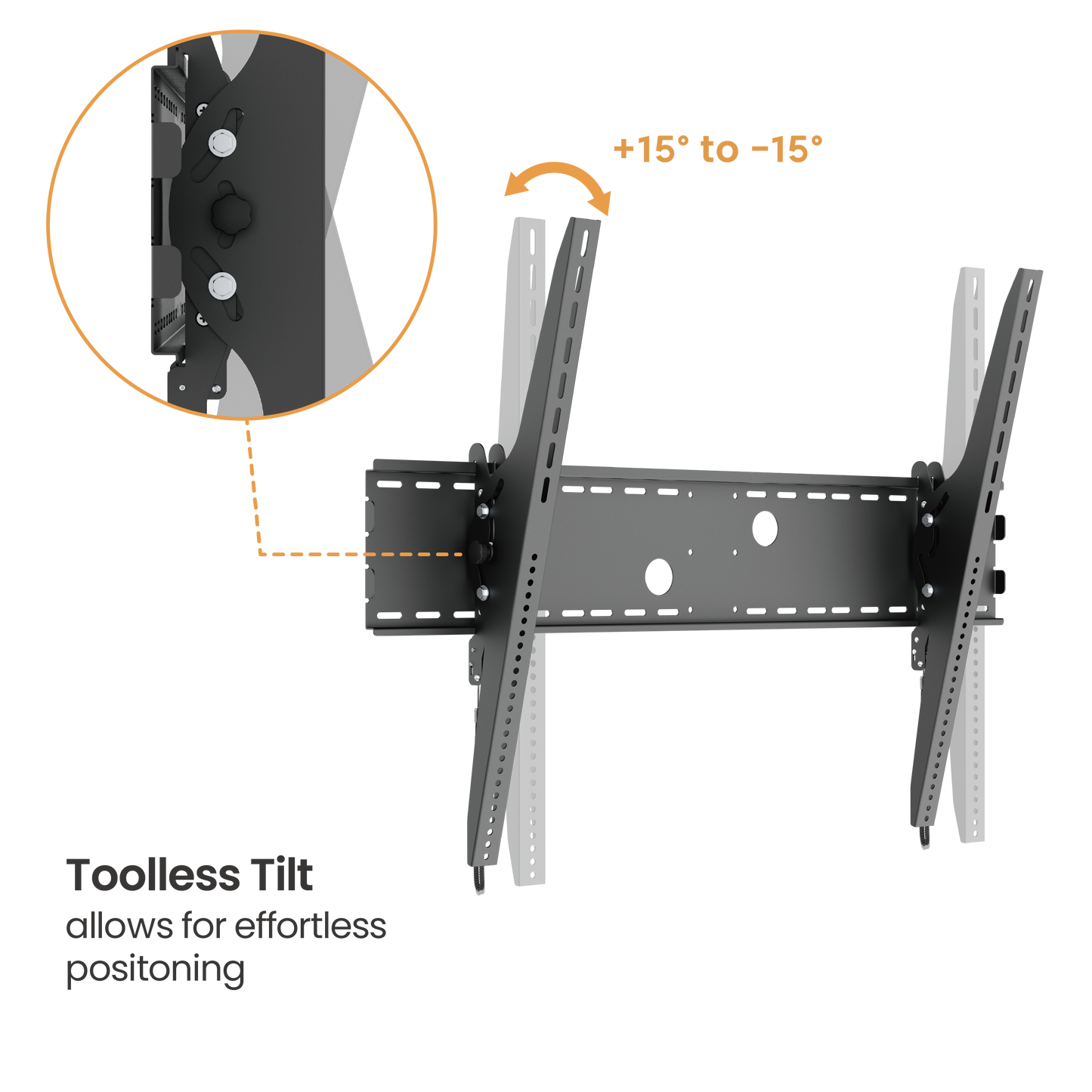

Extra-wide ±15° toolless tilt: a greater tilt range than standard mounts, ideal for large displays mounted high on a wall.
Heavy 100 kg load rating: 2mm steel, UL-approved and strength-tested four times, for confident support of big-format panels.
Lateral shift brackets: slide the mounted display left or right to centre it precisely on the wall after installation.
Fits 60"-100" displays: purpose-built for large flat and curved screens in signage, boardroom, and auditorium settings.

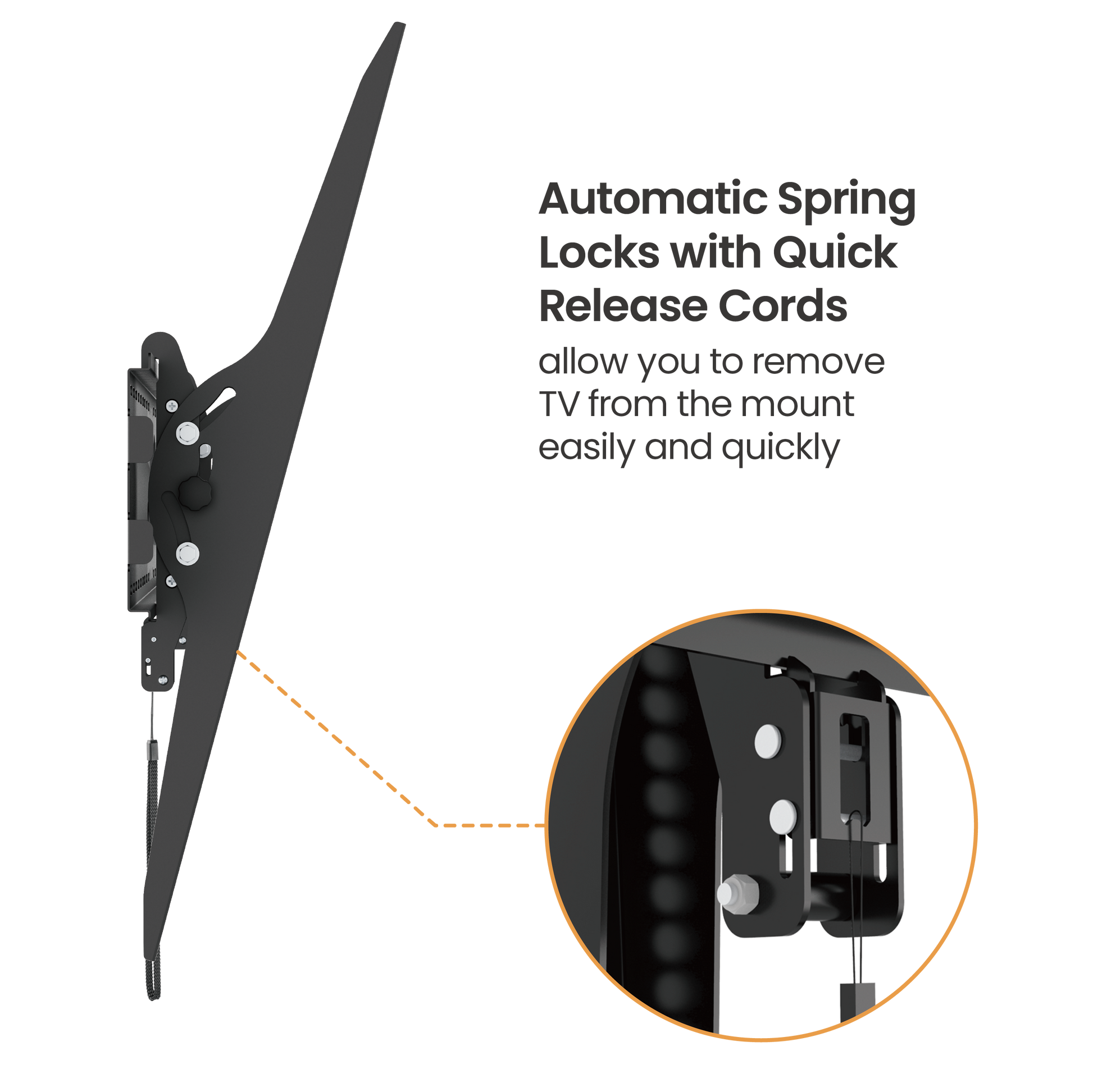

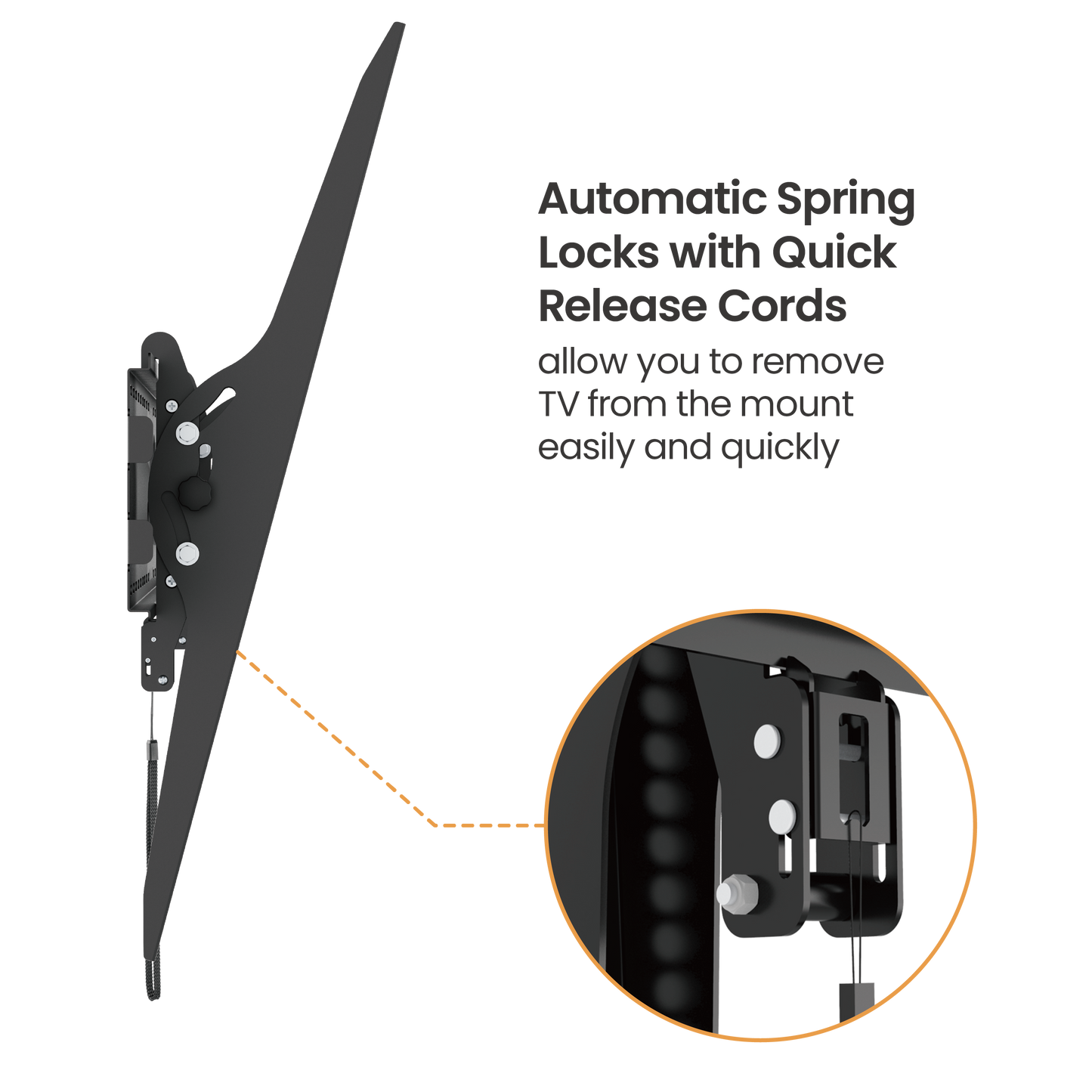

Quick-release spring locks: pull-cord releases allow even a large panel to be detached for rear access and re-seated securely.
Very wide VESA range: supports patterns from 200x200mm up to 1000x800mm, covering the largest mounting patterns used on big panels.
Solid-wall and dual-stud mounting: compatible with 406mm, 450mm, and 600mm stud spacing.

Applications

The VS01XL-810T is built for large-format commercial AV installations across the UAE and GCC: auditoriums and lecture halls, digital signage and video walls, hotel ballrooms and event spaces, corporate town-hall displays, and transport and airport screens. Its wide tilt range and lateral-shift adjustment make it especially suited to large screens mounted high, where precise positioning and a downward viewing angle matter.

Because it spans 60"-100" and a very wide VESA window up to 1000x800mm, a single mount model covers a range of large-panel sizes across a project, simplifying specification for integrators working on big-display rollouts.

Installation & Setup

Given the size and weight, install to a structurally sound wall across dual studs (406/450/600mm spacing) using appropriate heavy-duty fixings. Attach the bracket arms to the display's VESA points, then lift the panel onto the wall plate until the spring locks engage. A two-person lift is recommended. Use the lateral shift brackets to centre the screen, then set the toolless tilt angle up to 15 degrees to suit the viewing position.

If you'd rather not handle the installation yourself, mounts.ae also offers professional installation across the UAE. Simply select the installation option when you submit the quote form.

Why Buy the VS01XL-810T from Mounts.ae?

Genuine VSYS build quality, backed by our own warranty support
Fast delivery across Dubai, Abu Dhabi, and the wider UAE/GCC
Optional professional installation available UAE-wide, request it on the same quote form
Dedicated guidance for AV integrators, system integrators, and facilities teams sourcing at scale
Flexible quotes for bulk, corporate, and project-based orders

For project quantities or full technical documentation, use the Request a Quote button on this page or message us on WhatsApp.

View full details

Technical specifications

Load capacity	100 kg (220 lbs)
VESA compatibility	200x200mm - 1000x800mm
Screen size range	60" - 100"
Mount movement	Tilt +15/-15 degrees, toolless, with lateral shift adjustment
Material	2mm cold-rolled steel, powder-coated black
Wall clearance	120mm (4.7")
Certifications	UL approved, strength tested 4x

Product details

Use the Request a Quote button on this page or message us on WhatsApp for more on the VS01XL-810T.

Package Contents

Each VS01XL-810T ships with the wall plate, bracket arms, lateral shift brackets, a full heavy-duty mounting hardware kit for dual-stud installation, and printed installation instructions.

Warranty

Every VSYS product from Mounts.ae is backed by a 1-year replacement warranty covering manufacturing defects and product malfunctions. This warranty does not cover damage or performance issues arising from normal usage, misuse, or improper installation. If a genuine manufacturing defect is confirmed within the warranty period, we will replace the product.

Sustainability

The VS01XL-810T is built from cold-rolled steel, a fully recyclable material, with a durable powder-coated finish designed to resist corrosion and wear over years of use, reducing the need for replacement.

Expandability

The VS01XL-810T's very wide VESA range (200x200mm to 1000x800mm) means it can accommodate a range of large-format display sizes and models within its rated class, giving you flexibility if you upgrade to a different screen later without needing a new mount.

Distribution

Mounts.ae holds VSYS stock in the UAE for fast dispatch, with delivery available across Dubai, Abu Dhabi, and the wider GCC.

For more information on the VS01XL-810T, use the Request a Quote button on this page or message us on WhatsApp.

Frequently asked questions

What size displays does this X-large tilt wall mount support?

The VS01XL-810T is built for large flat and curved displays from 60 up to 100 inches. As long as your screen falls within that size range and its weight and VESA pattern match the mount's specifications, it will fit securely, covering the big-format panels used in signage, boardrooms, and auditoriums.

What is the maximum weight it can hold?

It carries displays up to 100 kg (220 lbs). Made from 2mm steel, it is UL-approved and strength-tested four times, giving a dependable safety margin for large, heavy, permanently installed commercial panels.

How far does this mount tilt?

It offers a wide toolless tilt of plus 15 to minus 15 degrees, greater than a standard tilt mount. This makes it ideal for large screens mounted high on a wall, where a downward angle reduces glare and improves the viewing position. The angle sets without tools.

Can I adjust the position after mounting?

Yes. Lateral shift brackets let you slide the mounted display left or right to centre it precisely on the wall after installation, which is especially useful when aligning a large screen to a specific stud position or room feature.

What VESA patterns is it compatible with?

It supports a very wide VESA range from 200x200mm up to 1000x800mm, covering the largest mounting patterns used on big-format displays. Check the pattern on the back of your screen or in its manual to confirm the fit.

Is this mount safe for very large, heavy displays?

Yes. It is UL-approved and strength-tested four times, with a 100 kg capacity and a wide, deep bracket structure that spreads the load across dual studs. For panels of this size a two-person lift and a structurally sound wall are recommended during installation.

Does mounts.ae offer installation services?

Yes. Mounts.ae offers professional installation across the UAE as an add-on to your order. Simply select the installation option when you submit the Request a Quote form, or mention it when you message us on WhatsApp, and we'll include it in your quote alongside the mount itself. See our installation services page for full details on residential and bulk installs.

How do I order this for a bulk or project installation?

Use the Request a Quote button on this page, or message us on WhatsApp with your quantity and project details. We supply system integrators and businesses on a project basis across the UAE and GCC, and we'll follow up with next steps for your requirement.

Where can I buy VSYS wall mounts?

VSYS wall mounts are available through mounts.ae, based in the UAE and serving system integrators and businesses across the UAE and GCC. Use the Request a Quote button on this page, or message mounts.ae directly on WhatsApp, to get started with your order or enquiry.
