VSYS

Heavy-Duty Tilt TV Wall Mount for 37"-86" TVs, Up to 80 kg (VS01A-46T) | VSYS

Screen Size 37" - 86"
Max VESA 600x400mm
Max Weight 80 kg

Use the Request a Quote button on this page or message us on WhatsApp to check pricing and availability for the VS01A-46T.

Overview

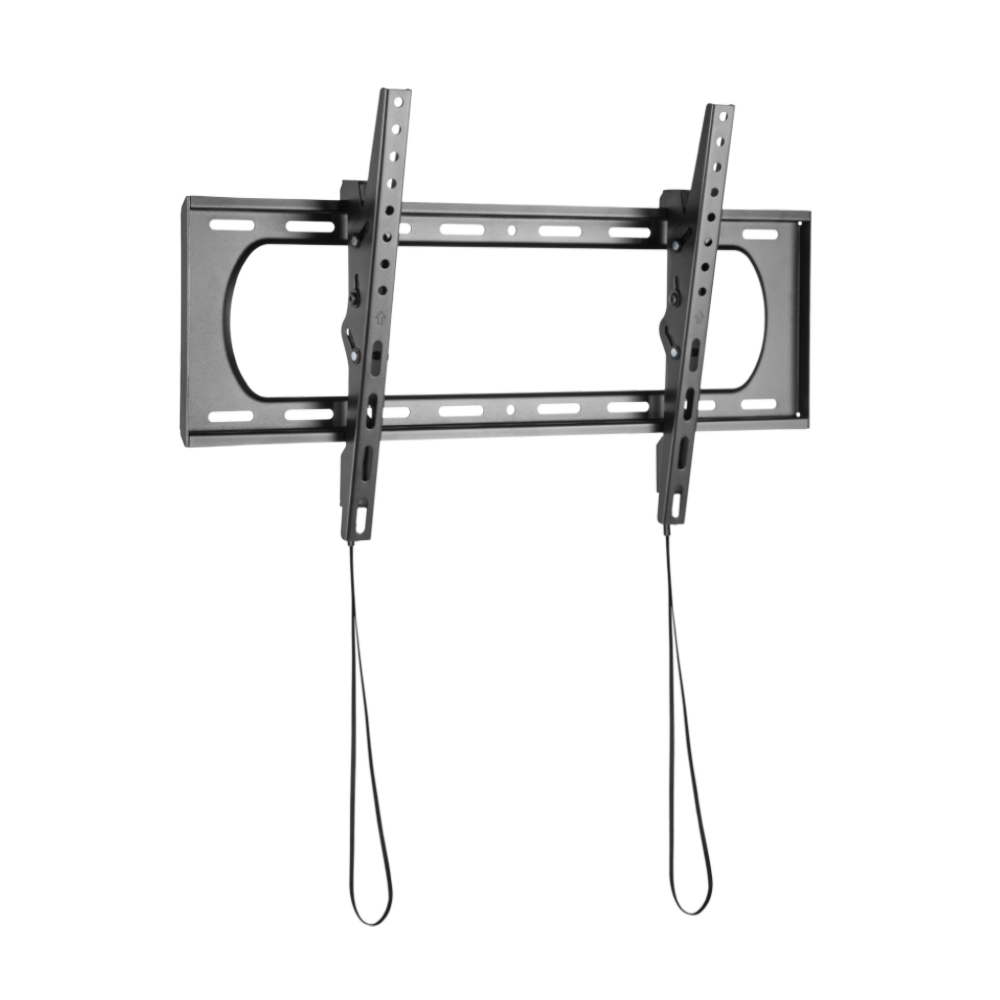

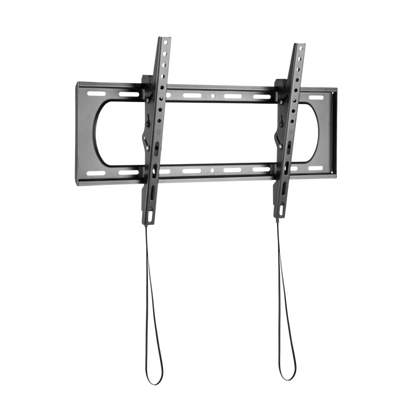

The VSYS VS01A-46T is a heavy-duty tilt wall mount that holds TVs and displays from 37" up to 86" securely against the wall while allowing a toolless downward tilt of up to 10 degrees. Built from 1.8mm cold-rolled steel across both the bracket arms and wall plate, it carries screens up to 80 kg with a strength-tested margin, making it a dependable choice for permanent installations where a slight angle adjustment reduces glare or improves the viewing angle from below.

Toolless tilt adjustment means the angle can be fine-tuned after installation without removing the display, and a quick-release spring-lock system lets a single installer lift the screen off the wall plate in seconds for maintenance or cable access, then click it back into place just as quickly.

Key Features

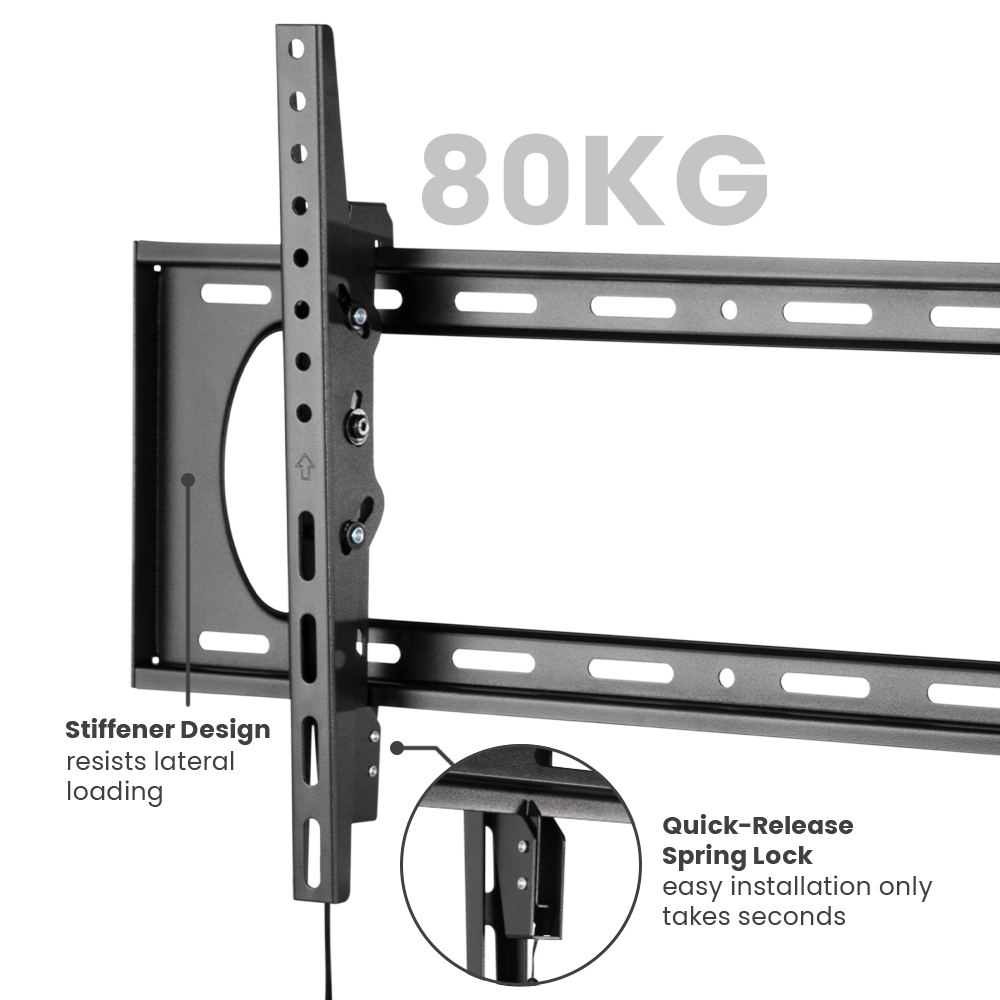

Heavy-duty 80 kg load rating: 1.8mm cold-rolled steel bracket arms and wall plate, strength-tested four times, for confident support of large panels.

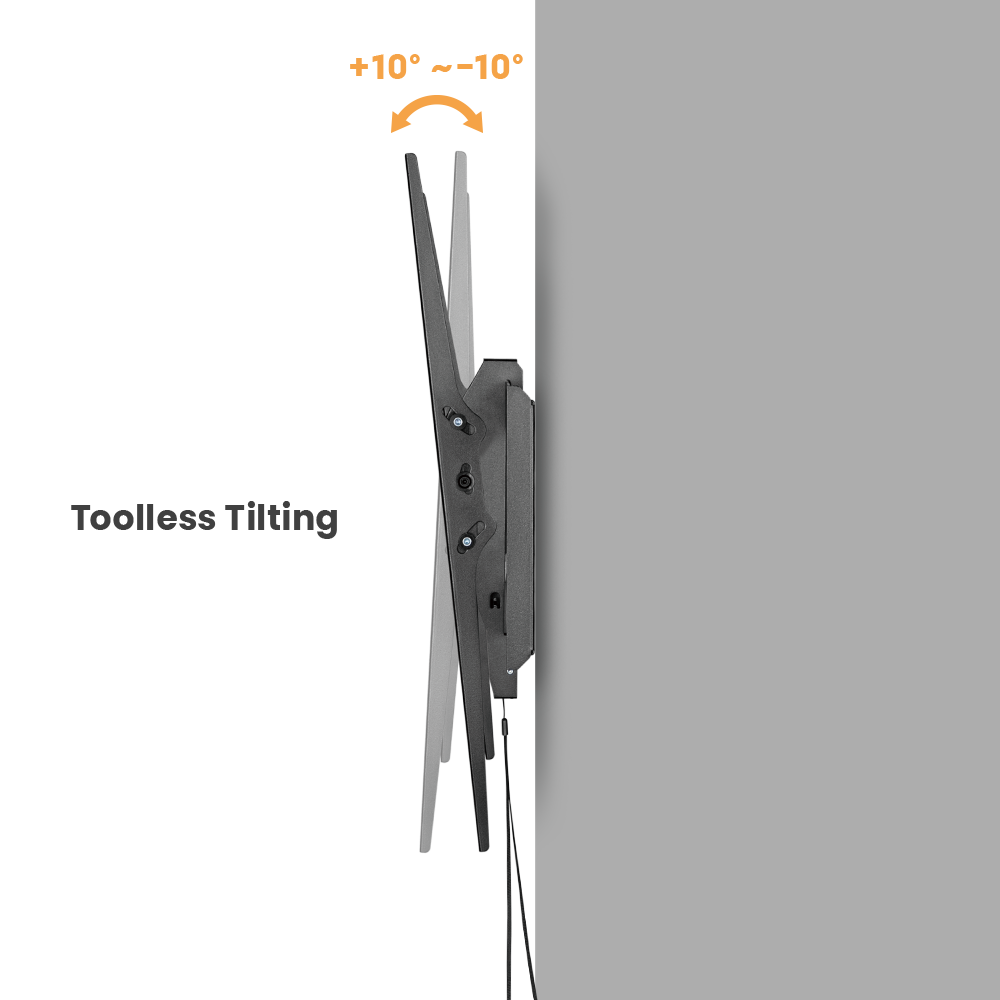

Toolless tilt, +10° to -10°: angle the display downward without tools, ideal for screens mounted above eye level.
Quick-release spring locks: pull-cord releases let one person detach the screen in seconds for rear access, then re-seat it securely.
Open architecture: leaves space behind the panel for socket outlets, concealed cabling, and ventilation.
Wide VESA range: supports patterns from 50x50mm up to 600x400mm (max hole spread 645x402mm), covering the vast majority of commercial and consumer displays in this size class.
Solid-wall and dual-stud mounting: compatible with 406mm, 450mm, and 600mm stud spacing, with a hook-on bubble level included for fast, accurate alignment.
Curved-display compatible: holds both flat and curved panels within the rated size and weight range.

Applications

The VS01A-46T is built for commercial AV installations across the UAE and GCC where a screen is mounted above eye level and needs a downward tilt to reduce glare and improve viewing: retail signage, transit and lobby displays, reception areas, and classrooms. Its heavy load rating also suits back-of-house and staff-facing displays in warehouses and transport hubs.

Because it spans a 37"-86" range and a wide VESA window, it's equally suitable for high-end residential and light-commercial installs where a tilt mount is preferred over a fixed bracket for a better viewing angle.

Installation & Setup

Fix the wall plate to a solid wall or across dual studs (406/450/600mm spacing), level it with the included hook-on bubble level, then attach the bracket arms to the display's VESA points. Lift the display onto the wall plate until the spring locks engage, adjust the tilt angle toolless up to 10 degrees to suit the viewing position, and use the pull cords whenever you need to release it again.

If you'd rather not handle the installation yourself, mounts.ae also offers professional installation across the UAE. Simply select the installation option when you submit the quote form.

Why Buy the VS01A-46T from Mounts.ae?

Genuine VSYS build quality, backed by our own warranty support
Fast delivery across Dubai, Abu Dhabi, and the wider UAE/GCC
Optional professional installation available UAE-wide, request it on the same quote form
Dedicated guidance for AV integrators, system integrators, and facilities teams sourcing at scale
Flexible quotes for bulk, corporate, and project-based orders

For project quantities or full technical documentation, use the Request a Quote button on this page or message us on WhatsApp.

View full details

Technical specifications

Load capacity	80 kg (176 lbs)
VESA compatibility	50x50mm - 600x400mm (max hole 645x402mm)
Screen size range	37" - 86"
Mount movement	Tilt +10/-10 degrees, toolless adjustment
Material	1.8mm cold-rolled steel, powder-coated black
Wall clearance	60mm (2.4")
Certifications	Strength tested 4x

Product details

Use the Request a Quote button on this page or message us on WhatsApp for more on the VS01A-46T.

Package Contents

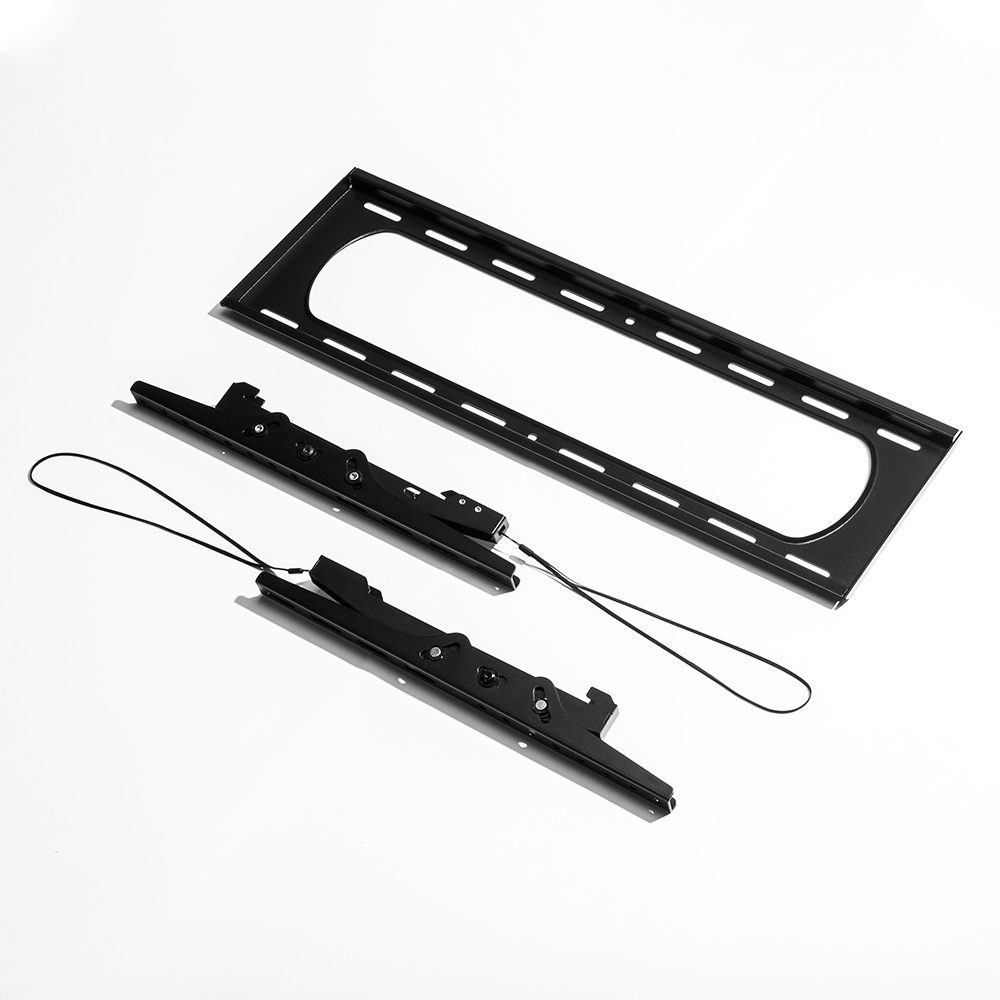

Each VS01A-46T ships with the wall plate, bracket arms, a full mounting hardware kit for solid-wall or dual-stud installation, a hook-on bubble level, and printed installation instructions.

Warranty

Every VSYS product from Mounts.ae is backed by a 1-year replacement warranty covering manufacturing defects and product malfunctions. This warranty does not cover damage or performance issues arising from normal usage, misuse, or improper installation. If a genuine manufacturing defect is confirmed within the warranty period, we will replace the product.

Sustainability

The VS01A-46T is built from cold-rolled steel, a fully recyclable material, with a durable powder-coated finish designed to resist corrosion and wear over years of use, reducing the need for replacement.

Expandability

The VS01A-46T's wide VESA range (50x50mm to 600x400mm) means it can accommodate a range of display sizes and models within its rated class, giving you flexibility if you upgrade to a different screen later without needing a new mount.

Distribution

Mounts.ae holds VSYS stock in the UAE for fast dispatch, with delivery available across Dubai, Abu Dhabi, and the wider GCC.

For more information on the VS01A-46T, use the Request a Quote button on this page or message us on WhatsApp.

Frequently asked questions

What size TVs and displays does this tilt wall mount support?

The VS01A-46T is designed for flat and curved displays from 37 up to 86 inches. As long as your screen falls within that size range and its weight and VESA pattern match the mount's specifications, it will fit securely, covering the large majority of commercial and consumer TVs in this class.

What is the maximum weight it can hold?

It carries displays up to 80 kg (176 lbs). Both the bracket arms and wall plate are made from 1.8mm cold-rolled steel and the design is strength-tested four times, giving a dependable safety margin for large, permanently installed commercial panels.

How far does this mount tilt?

It offers toolless tilt adjustment of plus 10 to minus 10 degrees, letting you angle the screen downward to reduce glare or improve the viewing angle when the TV is mounted above eye level. The angle can be adjusted after installation without removing the display.

What VESA patterns is it compatible with?

It supports VESA mounting patterns from 50x50mm up to 600x400mm, with a maximum mounting-hole spread of 645x402mm. That range covers the vast majority of 37 to 86 inch displays; check the pattern on the back of your screen or in its manual to confirm the fit.

Which TV and display brands does this mount work with?

Because it covers VESA patterns from 50x50mm to 600x400mm and up to 80 kg, it fits most 37 to 86 inch displays from major brands including Samsung, LG, Sony, Hisense, TCL, and Philips. Always check your display's VESA pattern and weight in its manual, or send us the model number and we'll confirm compatibility.

How far does the display sit from the wall?

The mount has a 60mm (2.4 inch) profile to allow the tilt mechanism to operate. Its open-architecture design leaves room behind the panel for socket outlets, concealed cabling, and ventilation.

Does mounts.ae offer installation services?

Yes. Mounts.ae offers professional installation across the UAE as an add-on to your order. Simply select the installation option when you submit the Request a Quote form, or mention it when you message us on WhatsApp, and we'll include it in your quote alongside the mount itself. See our installation services page for full details on residential and bulk installs.

How do I order this for a bulk or project installation?

Use the Request a Quote button on this page, or message us on WhatsApp with your quantity and project details. We supply system integrators and businesses on a project basis across the UAE and GCC, and we'll follow up with next steps for your requirement.

Where can I buy VSYS wall mounts?

VSYS wall mounts are available through mounts.ae, based in the UAE and serving system integrators and businesses across the UAE and GCC. Use the Request a Quote button on this page, or message mounts.ae directly on WhatsApp, to get started with your order or enquiry.
