Heavy-Duty Tilt TV Wall Mount for 60"-120" Large Displays, Up to 120 kg (VS01A-69T) | VSYS

Screen Size 60" - 120"
Max VESA 900x600mm
Max Weight 120 kg

Use the Request a Quote button on this page or message us on WhatsApp to check pricing and availability for the VS01A-69T.

Overview

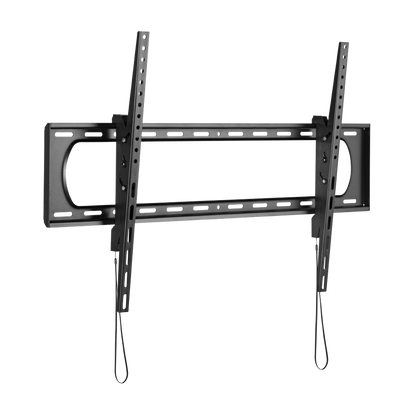

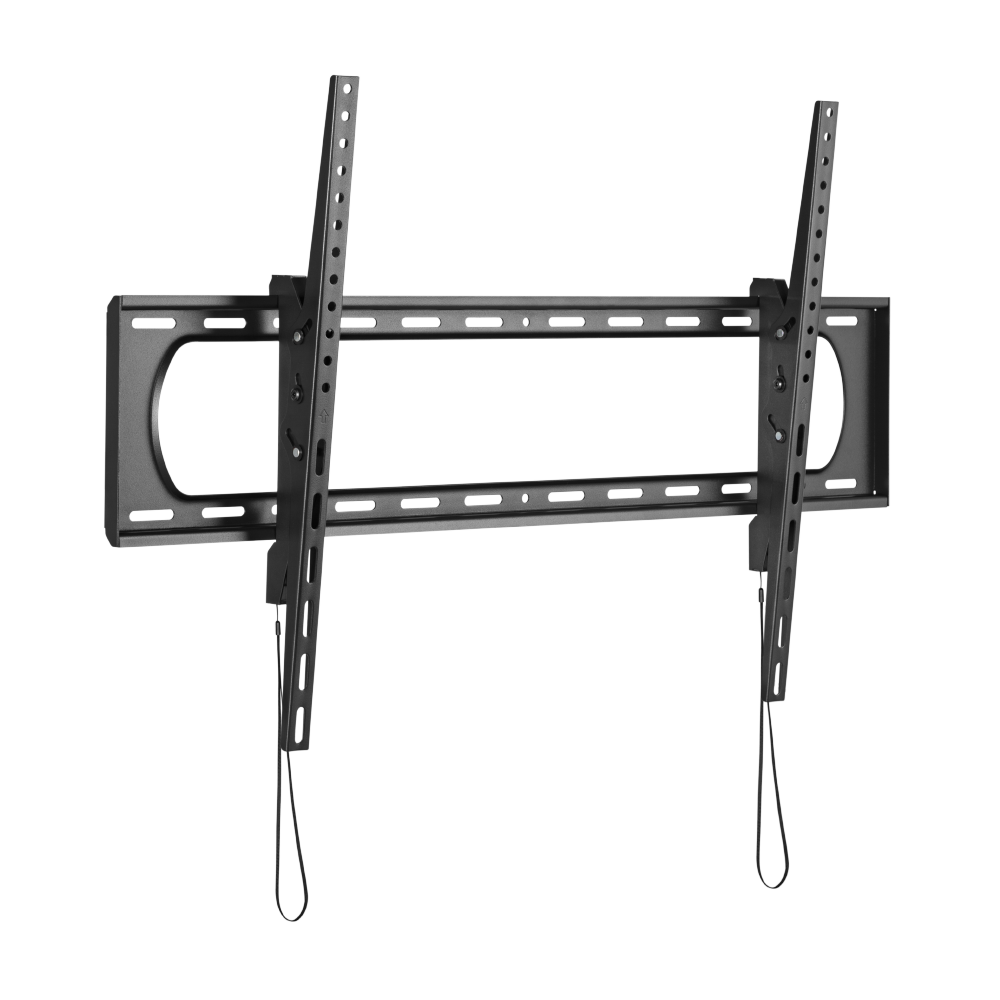

The VSYS VS01A-69T is a heavy-duty tilt wall mount engineered for very large displays from 60" up to 120" while allowing a toolless downward tilt of up to 10 degrees. Built from 2mm cold-rolled steel across both the bracket arms and wall plate, it carries screens up to a substantial 120 kg and is UL-approved and strength-tested four times, a dependable choice for large, heavy commercial panels mounted above eye level where a slight angle reduces glare.

Toolless tilt means the angle can be fine-tuned after installation without removing the display, and a quick-release spring-lock system lets installers detach the panel for rear access. A wide wall plate spreads the load across dual studs for a secure hold on big-format screens.

Key Features

Very high 120 kg load rating: 2mm cold-rolled steel, UL-approved and strength-tested four times, for confident support of large-format panels.
Toolless tilt, +10° to -10°: angle a large display downward without tools, ideal for high-mounted signage and auditorium screens.
Fits 60"-120" displays: purpose-built for auditorium, signage, and large-boardroom screens, flat or curved.

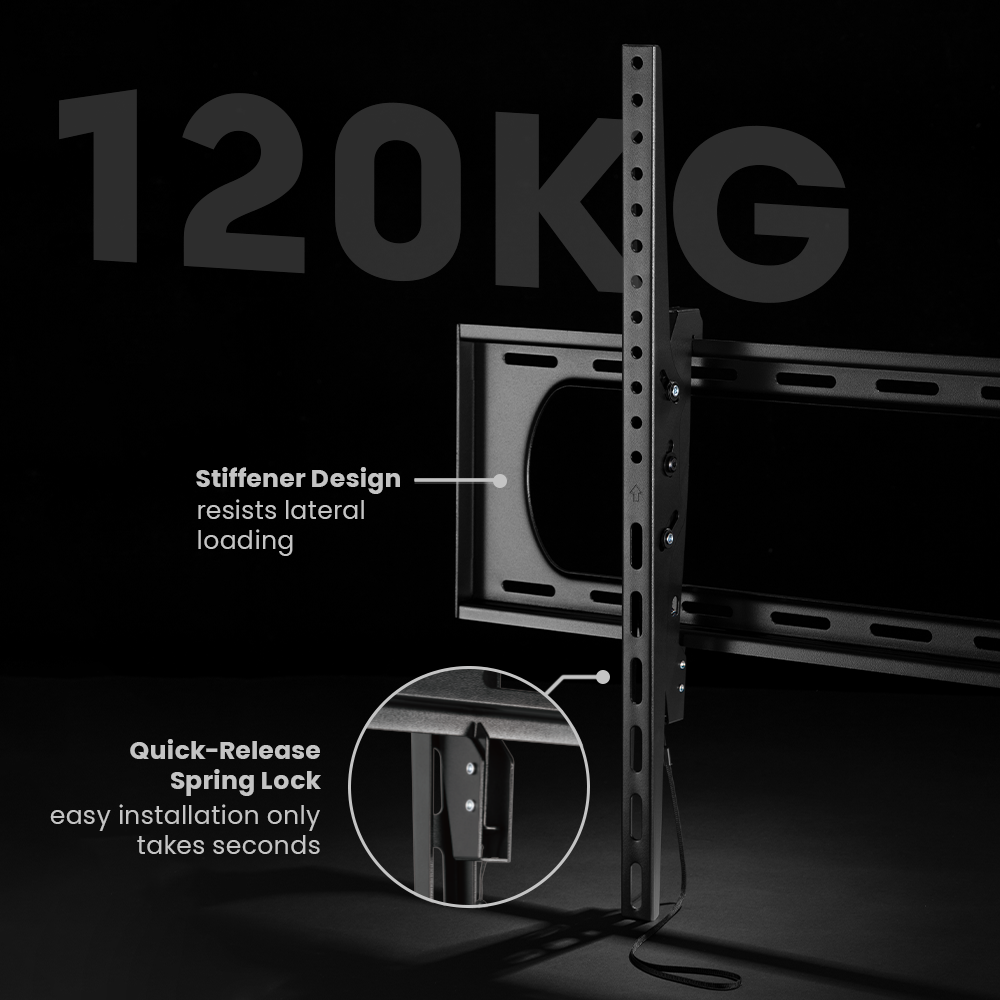

Quick-release spring locks: pull-cord releases allow the panel to be detached for rear access and re-seated securely.
Very wide VESA range: supports patterns from 50x50mm up to 900x600mm (max hole spread 965x602mm), covering the large mounting patterns used on big panels.
Solid-wall and dual-stud mounting: compatible with 406mm, 450mm, and 600mm stud spacing, with a hook-on bubble level included.
Open architecture: leaves space behind the panel for socket outlets, concealed cabling, and ventilation.

Applications

The VS01A-69T is built for large-format commercial AV installations across the UAE and GCC where a big screen is mounted above eye level and benefits from a downward tilt: auditoriums and lecture halls, digital signage and video walls, hotel ballrooms, and airport and transport displays. Its 120 kg rating and UL approval make it a safe choice for high, public-facing installations of large panels.

Because it spans 60"-120" and a very wide VESA window, a single mount model covers a range of large-panel sizes across a project, simplifying specification for integrators working on big-display rollouts that need an adjustable viewing angle.

Installation & Setup

Given the size and weight involved, install to a structurally sound wall across dual studs (406/450/600mm spacing) using appropriate heavy-duty fixings, and level with the included hook-on bubble level. Attach the bracket arms to the display's VESA points, lift the panel onto the wall plate until the spring locks engage. A two-person lift is recommended. Then set the toolless tilt angle up to 10 degrees to suit the viewing position.

If you'd rather not handle the installation yourself, mounts.ae also offers professional installation across the UAE. Simply select the installation option when you submit the quote form.

Why Buy the VS01A-69T from Mounts.ae?

Genuine VSYS build quality, backed by our own warranty support
Fast delivery across Dubai, Abu Dhabi, and the wider UAE/GCC
Optional professional installation available UAE-wide, request it on the same quote form
Dedicated guidance for AV integrators, system integrators, and facilities teams sourcing at scale
Flexible quotes for bulk, corporate, and project-based orders

For project quantities or full technical documentation, use the Request a Quote button on this page or message us on WhatsApp.

View full details

Technical specifications

Load capacity	120 kg (264 lbs)
VESA compatibility	50x50mm - 900x600mm (max hole 965x602mm)
Screen size range	60" - 120"
Mount movement	Tilt +10/-10 degrees, toolless adjustment
Material	2mm cold-rolled steel, powder-coated black
Wall clearance	80mm (3.1")
Certifications	UL approved, strength tested 4x

Product details

Use the Request a Quote button on this page or message us on WhatsApp for more on the VS01A-69T.

Package Contents

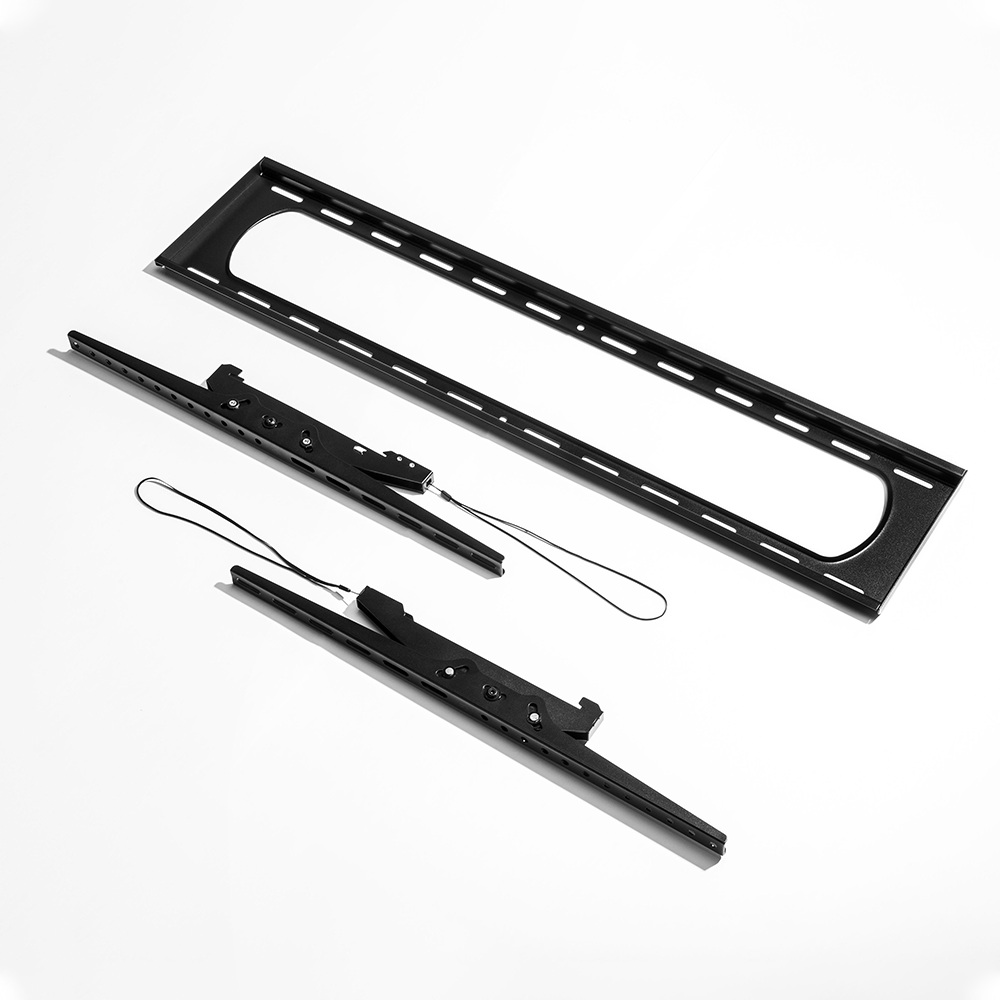

Each VS01A-69T ships with the wall plate, bracket arms, a full heavy-duty mounting hardware kit for dual-stud installation, a hook-on bubble level, and printed installation instructions.

Warranty

Every VSYS product from Mounts.ae is backed by a 1-year replacement warranty covering manufacturing defects and product malfunctions. This warranty does not cover damage or performance issues arising from normal usage, misuse, or improper installation. If a genuine manufacturing defect is confirmed within the warranty period, we will replace the product.

Sustainability

The VS01A-69T is built from cold-rolled steel, a fully recyclable material, with a durable powder-coated finish designed to resist corrosion and wear over years of use, reducing the need for replacement.

Expandability

The VS01A-69T's very wide VESA range (50x50mm to 900x600mm) means it can accommodate a range of large-format display sizes and models within its rated class, giving you flexibility if you upgrade to a different screen later without needing a new mount.

Distribution

Mounts.ae holds VSYS stock in the UAE for fast dispatch, with delivery available across Dubai, Abu Dhabi, and the wider GCC.

For more information on the VS01A-69T, use the Request a Quote button on this page or message us on WhatsApp.

Frequently asked questions

What size displays does this large tilt wall mount support?

The VS01A-69T is built for very large flat and curved displays from 60 up to 120 inches. As long as your screen falls within that size range and its weight and VESA pattern match the mount's specifications, it will fit securely, covering the big-format panels used in auditoriums, signage, and boardrooms.

What is the maximum weight it can hold?

It carries displays up to a substantial 120 kg (264 lbs). Made from 2mm cold-rolled steel, it is UL-approved and strength-tested four times, giving a dependable safety margin for large, heavy, permanently installed commercial panels.

How far does this mount tilt?

It offers toolless tilt adjustment of plus 10 to minus 10 degrees, letting you angle a large screen downward to reduce glare or improve the viewing angle when the display is mounted above eye level. The angle can be set after installation without removing the panel.

What VESA patterns is it compatible with?

It supports a very wide VESA range from 50x50mm up to 900x600mm, with a maximum mounting-hole spread of 965x602mm. That covers the large mounting patterns used on big-format displays; check the pattern on the back of your screen or in its manual to confirm the fit.

Is this mount safe for very large, heavy displays?

Yes. It is UL-approved and strength-tested four times, with a 120 kg capacity and a wide wall plate that spreads the load across dual studs. For panels of this size a two-person lift and a structurally sound wall are recommended during installation.

How far does the display sit from the wall?

The mount has an 80mm (3.1 inch) profile to allow the tilt mechanism to operate on large panels. Its open-architecture design leaves room behind the panel for socket outlets, concealed cabling, and ventilation.

Does mounts.ae offer installation services?

Yes. Mounts.ae offers professional installation across the UAE as an add-on to your order. Simply select the installation option when you submit the Request a Quote form, or mention it when you message us on WhatsApp, and we'll include it in your quote alongside the mount itself. See our installation services page for full details on residential and bulk installs.

How do I order this for a bulk or project installation?

Use the Request a Quote button on this page, or message us on WhatsApp with your quantity and project details. We supply system integrators and businesses on a project basis across the UAE and GCC, and we'll follow up with next steps for your requirement.

Where can I buy VSYS wall mounts?

VSYS wall mounts are available through mounts.ae, based in the UAE and serving system integrators and businesses across the UAE and GCC. Use the Request a Quote button on this page, or message mounts.ae directly on WhatsApp, to get started with your order or enquiry.
