Universal Projector Ceiling Mount, Up to 35 kg (VPM-20-H) | VSYS

Max Weight 35 kg

Use the Request a Quote button on this page or message us on WhatsApp to check pricing and availability for the VPM-20-H.

Overview

The VSYS VPM-20-H is a universal projector ceiling mount built to carry projectors up to 35 kg on a standard 1.5" NPT ceiling pipe. Adjustable mounting arms extend and retract to fit a wide range of projector footprints, while tilt of +20 to -20 degrees, swivel of +8 to -8 degrees, and a full +180 to -180 degree rotation let installers aim the projector precisely at the screen from almost any ceiling position.

A detachable mounting plate separates from the ceiling bracket for quick installation or removal, so the projector can come down for maintenance without re-aligning the whole assembly afterward. Built-in cable management keeps power and signal cables concealed and organized along the arms, and an adjustable drop range of 130mm to 470mm gives installers room to work around ceiling obstructions and beam-throw requirements.

Key Features

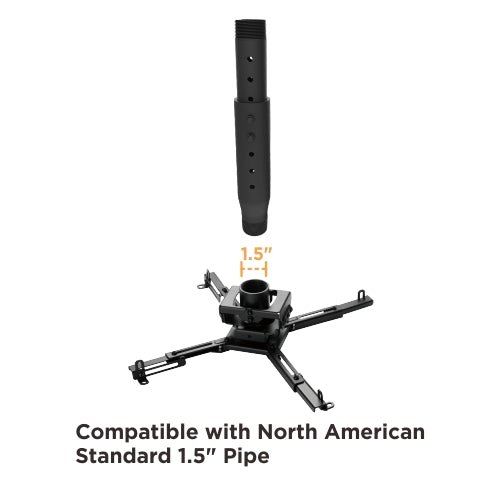

Universal 1.5" NPT pipe interface: mounts on standard North American ceiling pipe for straightforward integration with existing ceiling infrastructure.
35 kg load rating: steel and plastic construction with a matte black powder-coated finish.

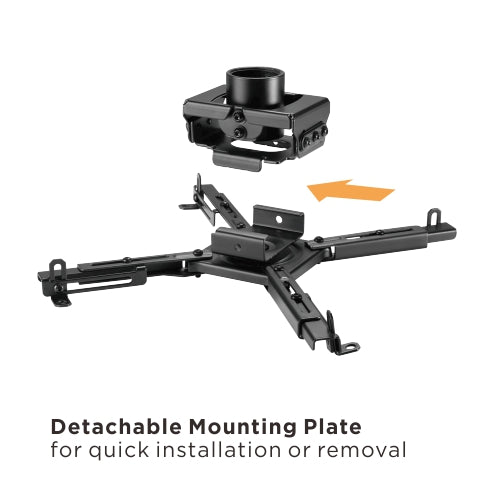

Detachable mounting plate: separates from the ceiling bracket for quick projector installation or removal without re-aligning the mount.

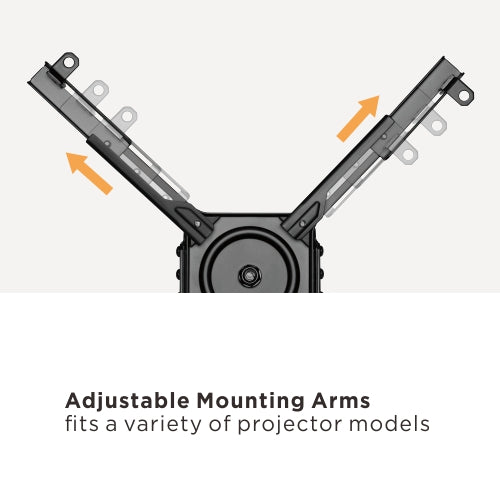

Adjustable mounting arms: extend and retract to fit a wide range of projector footprints and hole patterns.
Full adjustment range: tilt +20 to -20 degrees, swivel +8 to -8 degrees, and rotation +180 to -180 degrees for precise screen alignment.
Adjustable drop range: 130mm to 470mm from the ceiling to work around obstructions and beam-throw distance.

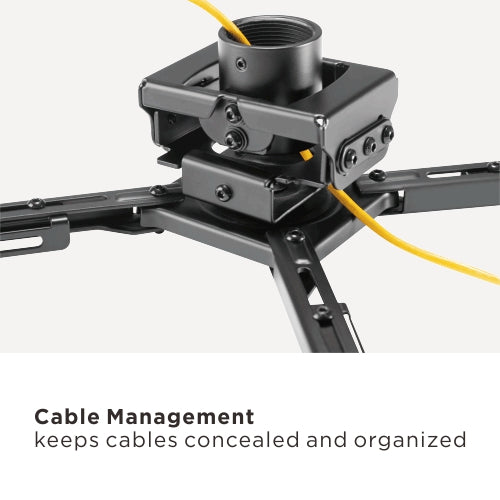

Integrated cable management: keeps power and signal cables concealed and organized.

Applications

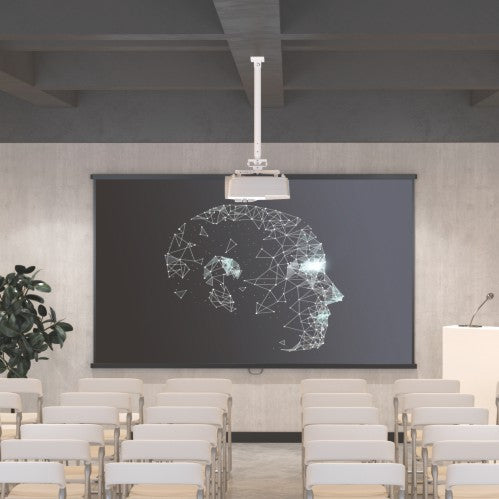

The VPM-20-H is built for permanent projector installations across the UAE and GCC where precise alignment and clean cable routing matter: boardrooms, classrooms, auditoriums, cinemas, and houses of worship. Its wide adjustment range and universal pipe interface make it a practical fit for ceiling layouts where the projector can't be centered directly in front of the screen.

Because the adjustable arms fit a wide range of projector footprints and the mount mates to a standard 1.5" pipe, a single mount model covers most mid-size commercial projectors, simplifying specification across a project with multiple rooms or projector models.

Installation & Setup

Attach the mount to a standard 1.5" NPT ceiling pipe (pipe not included), then adjust the mounting arms to match the projector's hole pattern and secure the detachable plate to the projector. Lift the plate onto the ceiling bracket, set the drop distance within the 130mm-470mm range, and use the tilt, swivel, and rotation adjustments to aim the image precisely at the screen. Route cables through the built-in cable management before final tightening.

If you'd rather not handle the installation yourself, mounts.ae also offers professional installation across the UAE. Simply select the installation option when you submit the quote form.

Why Buy the VPM-20-H from Mounts.ae?

Genuine VSYS build quality, backed by our own warranty support
Fast delivery across Dubai, Abu Dhabi, and the wider UAE/GCC
Optional professional installation available UAE-wide, request it on the same quote form
Dedicated guidance for AV integrators, system integrators, and facilities teams sourcing at scale
Flexible quotes for bulk, corporate, and project-based orders

For project quantities or full technical documentation, use the Request a Quote button on this page or message us on WhatsApp.

View full details

Technical specifications

Load capacity	35 kg (77 lbs)
Mount movement	Tilt +20 to -20 degrees, swivel +8 to -8 degrees, rotation +180 to -180 degrees, adjustable drop range 130mm-470mm
Material	Steel and plastic, matte black powder coating

Product details

Use the Request a Quote button on this page or message us on WhatsApp for more on the VPM-20-H.

Package Contents

Each VPM-20-H ships with the ceiling bracket, the detachable mounting plate, adjustable mounting arms, a full mounting hardware kit, and printed installation instructions. The ceiling pipe itself is not included.

Warranty

Every VSYS product from Mounts.ae is backed by a 1-year replacement warranty covering manufacturing defects and product malfunctions. This warranty does not cover damage or performance issues arising from normal usage, misuse, or improper installation. If a genuine manufacturing defect is confirmed within the warranty period, we will replace the product.

Sustainability

The VPM-20-H is built from steel and plastic with a durable powder-coated finish designed to resist corrosion and wear over years of use, reducing the need for replacement.

Expandability

The VPM-20-H's adjustable mounting arms and universal 1.5" NPT pipe interface mean it can accommodate a range of projector footprints and ceiling layouts within its rated class, giving you flexibility as an installation grows or changes.

Distribution

Mounts.ae holds VSYS stock in the UAE for fast dispatch, with delivery available across Dubai, Abu Dhabi, and the wider GCC.

For more information on the VPM-20-H, use the Request a Quote button on this page or message us on WhatsApp.

Frequently asked questions

What size and type of projectors does this mount support?

The VPM-20-H is a universal projector ceiling mount rated for projectors up to 35 kg (77 lbs). Its adjustable mounting arms fit a wide range of projector footprints and hole patterns, covering most mid-size commercial and installation projectors.

What is the maximum weight it can hold?

It carries projectors up to 35 kg (77 lbs). The bracket is built from steel and plastic with a matte black powder-coated finish.

What kind of ceiling pipe does this mount use?

It mounts on a standard North American 1.5 inch NPT ceiling pipe (pipe not included). This is a common interface for commercial projector installations, making it straightforward to integrate with existing ceiling infrastructure.

How much can the projector be tilted, swiveled, or rotated?

The mount tilts from +20 to -20 degrees, swivels from +8 to -8 degrees, and rotates a full +180 to -180 degrees, letting you aim the projector precisely at the screen from almost any ceiling position.

How far can the mount drop from the ceiling?

The adjustable drop range is 130mm to 470mm, giving installers room to work around ceiling obstructions, beams, and beam-throw distance requirements.

Can the projector be removed for maintenance without losing the alignment?

Yes. The detachable mounting plate separates from the ceiling bracket, so the projector can come down for servicing or replacement without having to re-align the whole assembly afterward.

Does mounts.ae offer installation services?

Yes. Mounts.ae offers professional installation across the UAE as an add-on to your order. Simply select the installation option when you submit the Request a Quote form, or mention it when you message us on WhatsApp, and we'll include it in your quote alongside the mount itself. See our installation services page for full details on residential and bulk installs.

How do I order this for a bulk or project installation?

Use the Request a Quote button on this page, or message us on WhatsApp with your quantity and project details. We supply system integrators and businesses on a project basis across the UAE and GCC, and we'll follow up with next steps for your requirement.

Where can I buy VSYS projector mounts?

VSYS projector mounts are available through mounts.ae, based in the UAE and serving system integrators and businesses across the UAE and GCC. Use the Request a Quote button on this page, or message mounts.ae directly on WhatsApp, to get started with your order or enquiry.
