Adjustable Telescopic Projector Ceiling Mount, Up to 35 kg (VPM-20-02L) | VSYS

Max Weight 35 kg

Use the Request a Quote button on this page or message us on WhatsApp to check pricing and availability for the VPM-20-02L.

Overview

The VSYS VPM-20-02L is an adjustable telescopic projector ceiling mount built to carry projectors up to 35 kg on a self-contained extension pole, rather than relying on a separately sourced pipe. The pole telescopes from 735mm to 1135mm, giving installers a wide window to reach the right hanging height in rooms with taller or varied ceilings.

At the base, adjustable mounting arms extend and retract to fit a wide range of projector footprints, while tilt of +20 to -20 degrees, swivel of +8 to -8 degrees, and a full +180 to -180 degree rotation let installers aim the projector precisely at the screen. Built-in cable management routes power and signal cables through the pole for a clean, concealed finish.

Key Features

Self-contained telescopic pole: extends from 735mm to 1135mm, so no separate ceiling pipe needs to be sourced or cut to length.
35 kg load rating: steel and plastic construction with a matte black or matte white powder-coated finish.

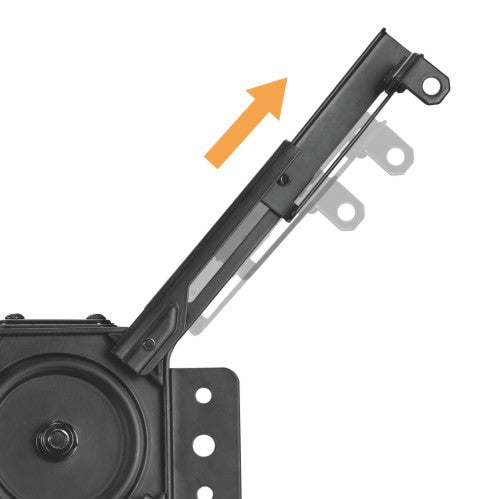

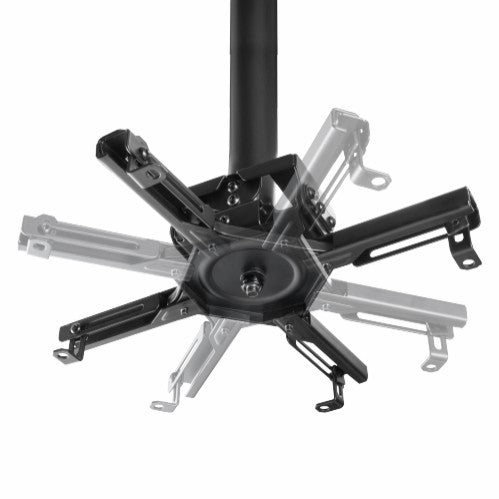

Adjustable mounting arms: extend and retract to fit a wide range of projector footprints and hole patterns, with a mounting spread of 130mm to 470mm.
Full adjustment range: tilt +20 to -20 degrees, swivel +8 to -8 degrees, and rotation +180 to -180 degrees for precise screen alignment.

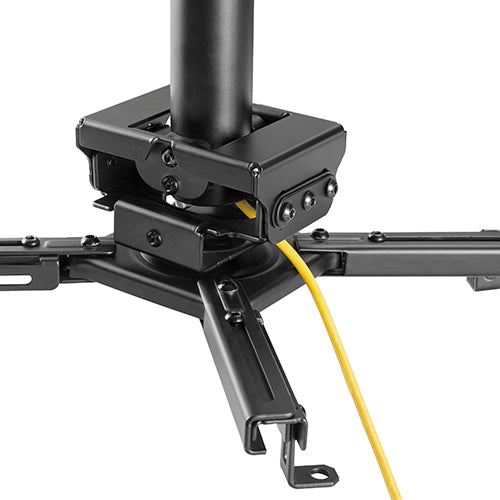

Integrated cable management: routes power and signal cables through the pole for a clean, concealed finish.

Applications

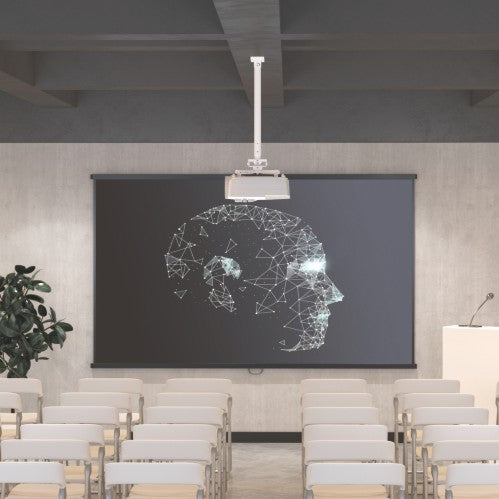

The VPM-20-02L is built for permanent projector installations across the UAE and GCC where the room has a taller or non-standard ceiling height and a ready-made adjustable pole is more practical than sourcing separate pipe: boardrooms, classrooms, auditoriums, cinemas, and houses of worship. Its wide telescoping range makes it a practical fit across multiple rooms with different ceiling heights on the same project.

Because the pole telescopes over a wide range and the mounting arms fit a variety of projector footprints, a single mount model covers most mid-size commercial projectors across a multi-room rollout, simplifying specification for integrators.

Installation & Setup

Secure the ceiling plate to a structurally sound ceiling joist or slab, then extend the telescopic pole to the required height and lock it in place. Adjust the mounting arms to match the projector's hole pattern and secure it to the base plate, then use the tilt, swivel, and rotation adjustments to aim the image precisely at the screen. Route cables through the pole's built-in cable management before final tightening.

If you'd rather not handle the installation yourself, mounts.ae also offers professional installation across the UAE. Simply select the installation option when you submit the quote form.

Why Buy the VPM-20-02L from Mounts.ae?

Genuine VSYS build quality, backed by our own warranty support
Fast delivery across Dubai, Abu Dhabi, and the wider UAE/GCC
Optional professional installation available UAE-wide, request it on the same quote form
Dedicated guidance for AV integrators, system integrators, and facilities teams sourcing at scale
Flexible quotes for bulk, corporate, and project-based orders

For project quantities or full technical documentation, use the Request a Quote button on this page or message us on WhatsApp.

View full details

Technical specifications

Load capacity	35 kg (77 lbs)
Mount movement	Telescopic pole extension 735mm-1135mm, tilt +20 to -20 degrees, swivel +8 to -8 degrees, rotation +180 to -180 degrees, mounting arm spread 130mm-470mm
Material	Steel and plastic, matte black or matte white powder coating

Product details

Use the Request a Quote button on this page or message us on WhatsApp for more on the VPM-20-02L.

Package Contents

Each VPM-20-02L ships with the ceiling plate, the telescopic extension pole, the adjustable mounting arms, a full mounting hardware kit, and printed installation instructions.

Warranty

Every VSYS product from Mounts.ae is backed by a 1-year replacement warranty covering manufacturing defects and product malfunctions. This warranty does not cover damage or performance issues arising from normal usage, misuse, or improper installation. If a genuine manufacturing defect is confirmed within the warranty period, we will replace the product.

Sustainability

The VPM-20-02L is built from steel and plastic with a durable powder-coated finish designed to resist corrosion and wear over years of use, reducing the need for replacement.

Expandability

The VPM-20-02L's wide telescoping range (735mm-1135mm) and adjustable mounting arms mean it can accommodate a range of projector footprints and ceiling heights within its rated class, giving you flexibility across rooms with different ceiling heights.

Distribution

Mounts.ae holds VSYS stock in the UAE for fast dispatch, with delivery available across Dubai, Abu Dhabi, and the wider GCC.

For more information on the VPM-20-02L, use the Request a Quote button on this page or message us on WhatsApp.

Frequently asked questions

What size and type of projectors does this mount support?

The VPM-20-02L is an adjustable telescopic projector ceiling mount rated for projectors up to 35 kg (77 lbs). Its adjustable mounting arms fit a wide range of projector footprints and hole patterns, covering most mid-size commercial and installation projectors.

What is the maximum weight it can hold?

It carries projectors up to 35 kg (77 lbs). The bracket and pole are built from steel and plastic with a matte black or matte white powder-coated finish.

How does the telescopic pole work, and do I need to buy a separate ceiling pipe?

No separate pipe is needed. The VPM-20-02L includes its own self-contained telescopic pole that extends from 735mm to 1135mm, so it's ready to install straight out of the box across a range of ceiling heights.

How much can the projector be tilted, swiveled, or rotated?

The mount tilts from +20 to -20 degrees, swivels from +8 to -8 degrees, and rotates a full +180 to -180 degrees, letting you aim the projector precisely at the screen from almost any ceiling position.

What is the mounting arm spread for attaching the projector?

The adjustable mounting arms extend and retract across a spread of 130mm to 470mm, fitting a wide range of projector hole patterns and footprints.

Does mounts.ae offer installation services?

Yes. Mounts.ae offers professional installation across the UAE as an add-on to your order. Simply select the installation option when you submit the Request a Quote form, or mention it when you message us on WhatsApp, and we'll include it in your quote alongside the mount itself. See our installation services page for full details on residential and bulk installs.

How do I order this for a bulk or project installation?

Use the Request a Quote button on this page, or message us on WhatsApp with your quantity and project details. We supply system integrators and businesses on a project basis across the UAE and GCC, and we'll follow up with next steps for your requirement.

Where can I buy VSYS projector mounts?

VSYS projector mounts are available through mounts.ae, based in the UAE and serving system integrators and businesses across the UAE and GCC. Use the Request a Quote button on this page, or message mounts.ae directly on WhatsApp, to get started with your order or enquiry.
