Motorized Ceiling Mount for 43"-86" TVs, Up to 45 kg (VCM-M0748DS) | VSYS

Screen Size 43" - 86"
Max VESA 800x400mm
Max Weight 45 kg

Need a ceiling-mounted TV that folds away and tilts on command? Request a quote for the VCM-M0748DS below.

Overview

The VCM-M0748DS is a motorized ceiling mount for 43"-86" TVs up to 45 kg, built around a premium electric push-rod motor that tilts the display 0° to -75° and swivels it +90° to -90°. A flip-down foldable design lets the screen tuck up out of the way when not in use, and control is available via app, voice assistant, or RF remote.

Key Features

Motorized tilt and swivel: tilts 0° to -75° and swivels +90° to -90° with a quiet, quick electric push-rod motor.

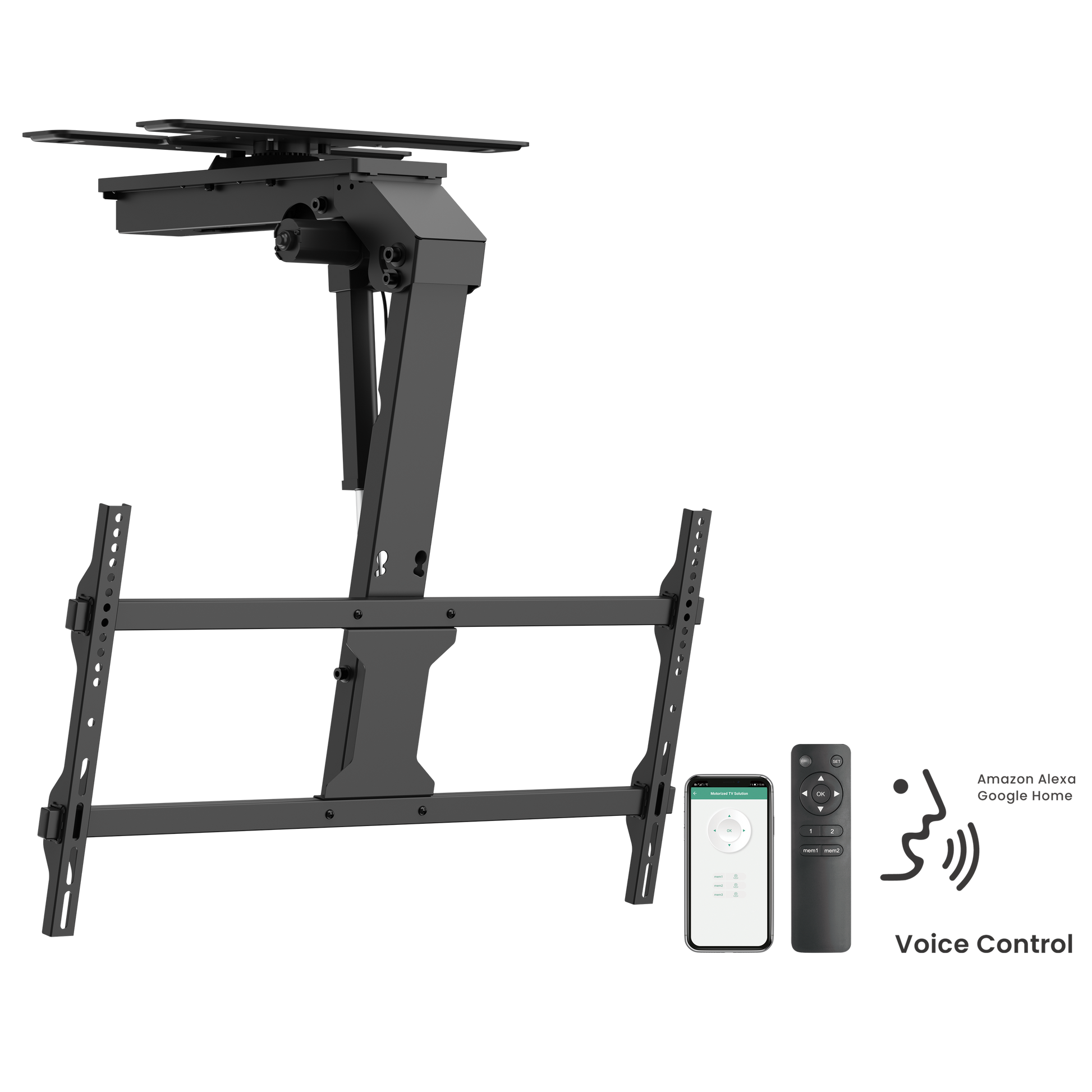

Multiple control options: operate via the Tuya app, Amazon Alexa or Google Home voice commands, or the included RF remote.

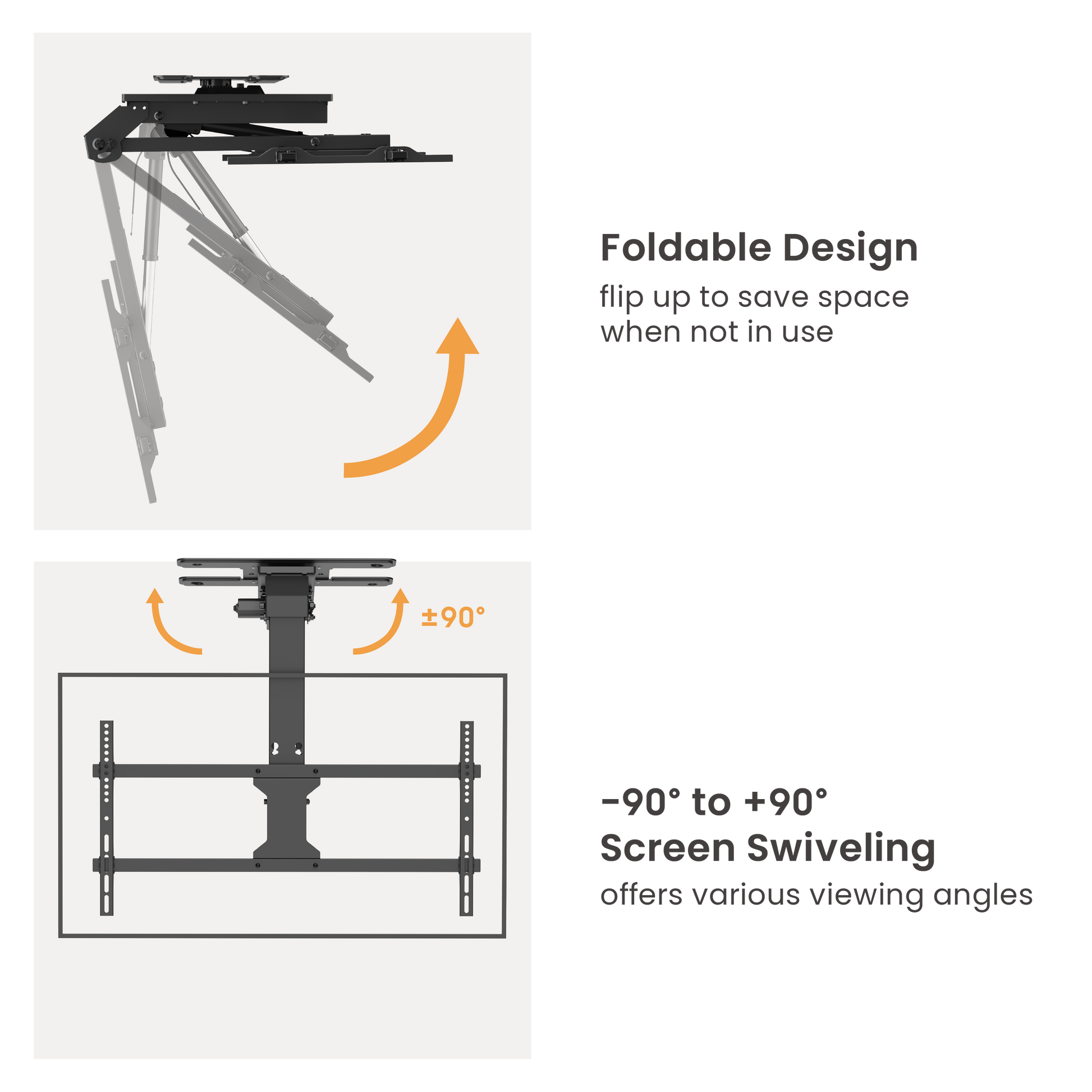

Flip-down foldable design: folds the screen up and out of the way to save space when the TV is not in use.

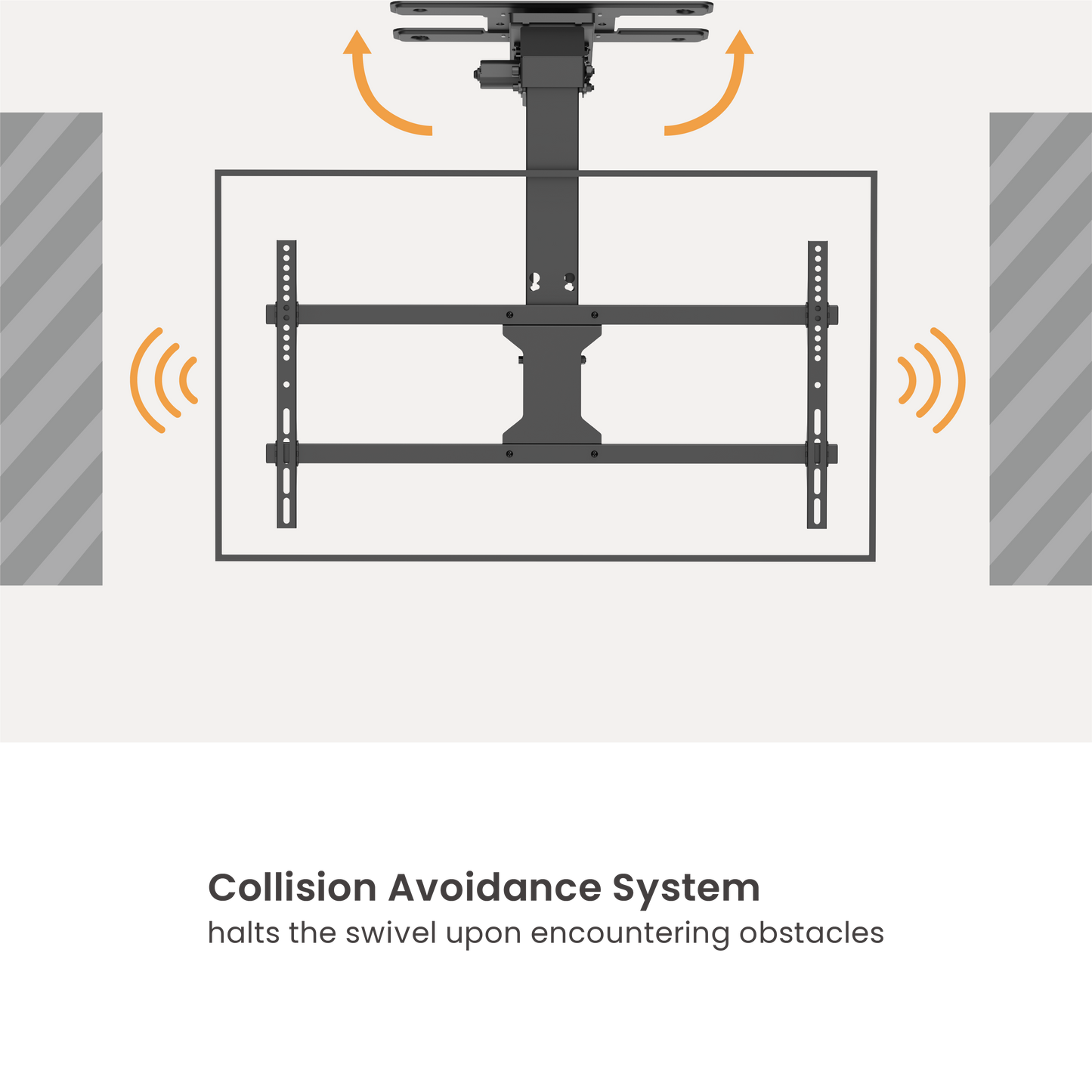

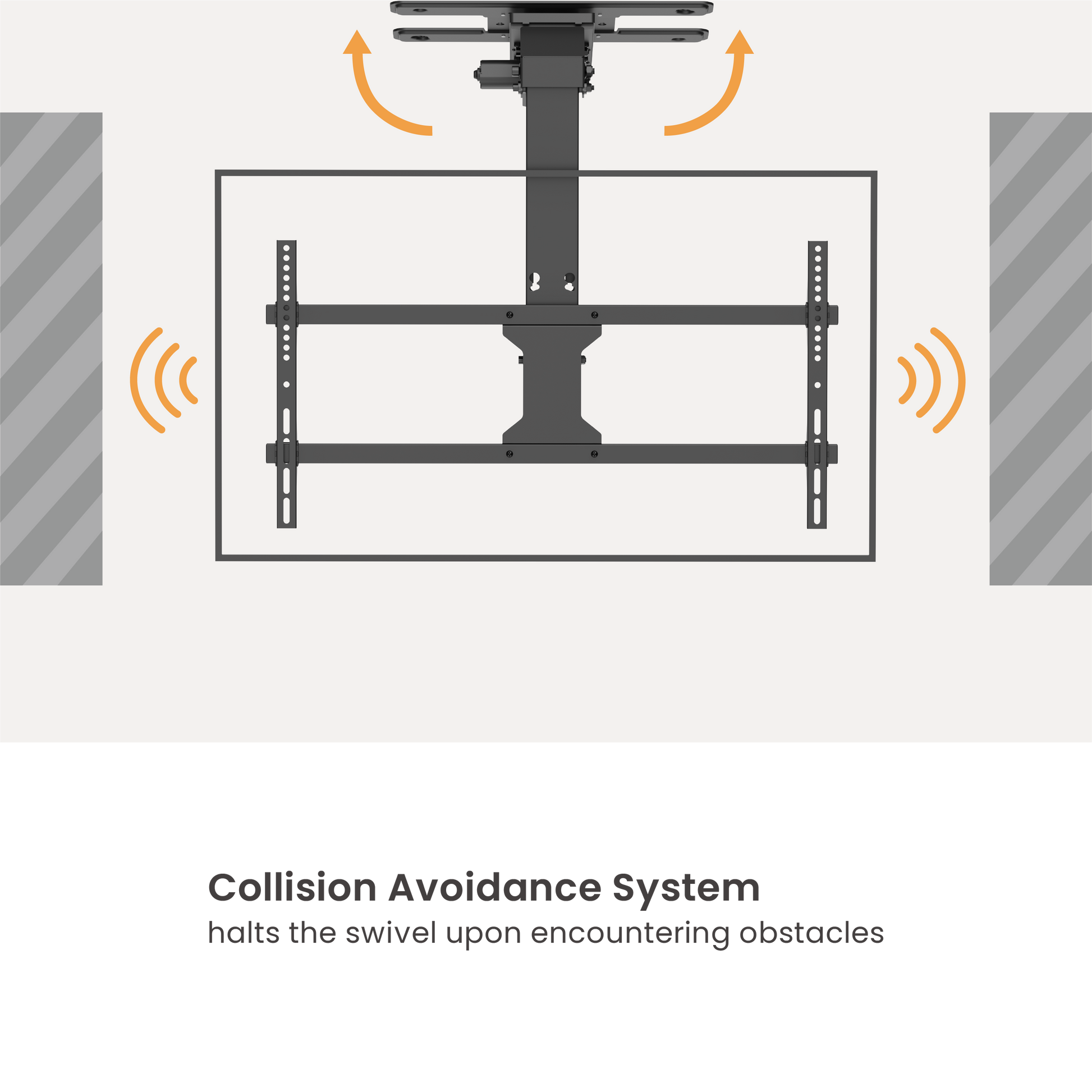

Collision avoidance: automatically halts the swivel if it senses an obstacle in its path.
Wide VESA support: fits 200x100mm up to 800x400mm mounting patterns, strength-tested to 4 times its rated 45 kg capacity.

Applications

Suited to conference rooms and classrooms where a ceiling-mounted screen needs to fold away between sessions, retail and hospitality ceilings where ceiling space is the only option, and smart-home installations where voice or app control adds convenience.

Installation & Setup

Mounts to a solid ceiling or dual ceiling joists at 406mm spacing using the included plate and hardware. The motor runs on standard AC power via its included 3m power cord. Given the ceiling installation and weight involved, professional installation is strongly recommended and available UAE-wide on request through the quote form below.

Why Buy from Mounts.ae?

Commercial-grade mounting hardware backed by our own 1-year replacement warranty
Fast delivery across Dubai, Abu Dhabi, and the wider UAE and GCC
Optional professional installation available UAE-wide, requested on the same quote form
Dedicated support for AV integrators and facilities teams sourcing at scale
Flexible quotes for bulk, corporate, and project-based orders

Ready for a ceiling TV that moves and folds on command? Request a quote for the VCM-M0748DS today.

View full details

Technical specifications

Load capacity	Up to 45 kg
VESA compatibility	200x100mm - 800x400mm
Screen size range	43" - 86"
Mount movement	Motorized tilt 0 to -75 degrees, swivel +90 to -90 degrees, screen level +2 to -2 degrees
Material	Steel, plastic, and aluminum
Wall clearance	177mm ceiling drop
Certifications	CE, ErP, EU Cybersecurity, FCC, RoHS, strength tested to 4x rated load

Product details

Use the Request a Quote button on this page or message us on WhatsApp for more on the VCM-M0748DS.

Package Contents

VCM-M0748DS motorized ceiling mount, ceiling plate, RF remote control, mounting hardware bag, power cord, and printed installation guide.

Warranty

Mounts.ae backs this mount with a 1-year replacement warranty covering manufacturing defects and product malfunctions. This warranty does not cover damage or performance issues arising from normal usage, misuse, or improper installation. If a genuine manufacturing defect is confirmed within the warranty period, we will replace the product.

Sustainability

Steel and aluminum components are recyclable at end of life, and packaging uses minimal single-material cardboard.

Expandability

The 200x100mm-800x400mm VESA range covers most future TV upgrades within the 43"-86" size class without needing a new mount.

Distribution

Stocked and shipped from the UAE, with delivery available across Dubai, Abu Dhabi, and the wider GCC.

For more information on the VCM-M0748DS, use the Request a Quote button on this page or message us on WhatsApp.

Frequently asked questions

What screen sizes fit the VCM-M0748DS?

Most 43"-86" flat or curved TVs with a VESA mounting pattern between 200x100mm and 800x400mm. Check your display's rear panel or manual to confirm its exact VESA size before ordering.

What is the maximum weight this mount can hold?

The VCM-M0748DS is rated for displays up to 45 kg and strength-tested to four times that figure. Confirm your TV's weight on its spec sheet, or use our Find My Mount tool to check compatibility instantly.

How do I control the motorized movement?

Three ways: the included RF remote, the Tuya smartphone app, or voice commands through Amazon Alexa or Google Home once connected to your network.

What does the foldable design do?

The mount flips the screen up toward the ceiling when not in use, saving headroom in the room until you lower it back into viewing position.

What happens if something blocks the TV while it swivels?

The built-in collision-avoidance system detects the obstruction and automatically stops the motor, protecting both the display and whatever is in the way.

Does it need a power outlet near the ceiling?

Yes. The motor runs on standard AC power (100-240V) via its included 3m power cord, so power needs to be available at or near the ceiling mounting point.

Is professional installation recommended?

Yes. Given the ceiling installation and weight involved, professional installation is strongly recommended and available UAE-wide as an add-on service through the quote form. See our installation services page for full details on residential and bulk installs.

Which TV brands is this mount compatible with?

It works with any TV brand, including Samsung, LG, Sony, Hisense, and TCL, as long as the screen's weight and VESA pattern fall within the mount's supported range.

Where can I buy the VCM-M0748DS in the UAE?

Directly from mounts.ae. Use the Request a Quote button on this page or message us on WhatsApp with the product name and SKU to get started.
