Adjustable Ceiling TV Mount for 43"-86" TVs, Up to 60 kg (VCM-CE1546L) | VSYS

Screen Size 43" - 86"
Max VESA 600x400mm
Max Weight 60 kg

Use the Request a Quote button on this page or message us on WhatsApp to check pricing and availability for the VCM-CE1546L.

Overview

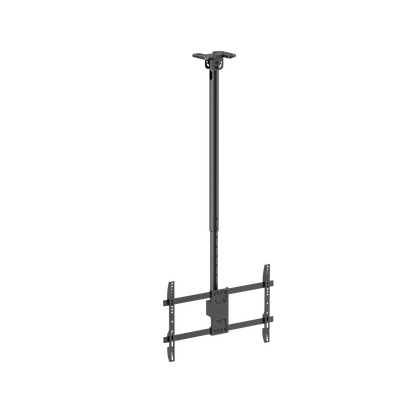

The VSYS VCM-CE1546L is an adjustable ceiling TV mount built for large displays from 43" up to 86" in spaces where a wall mount isn't practical, such as open-plan retail floors, airports, and central boardroom tables. A telescoping pole extends from 1090mm to 1690mm below the ceiling, and the ceiling plate itself tilts to adapt to either a flat or a pitched roof, so it fits a wide range of real ceiling structures rather than just flat slabs.

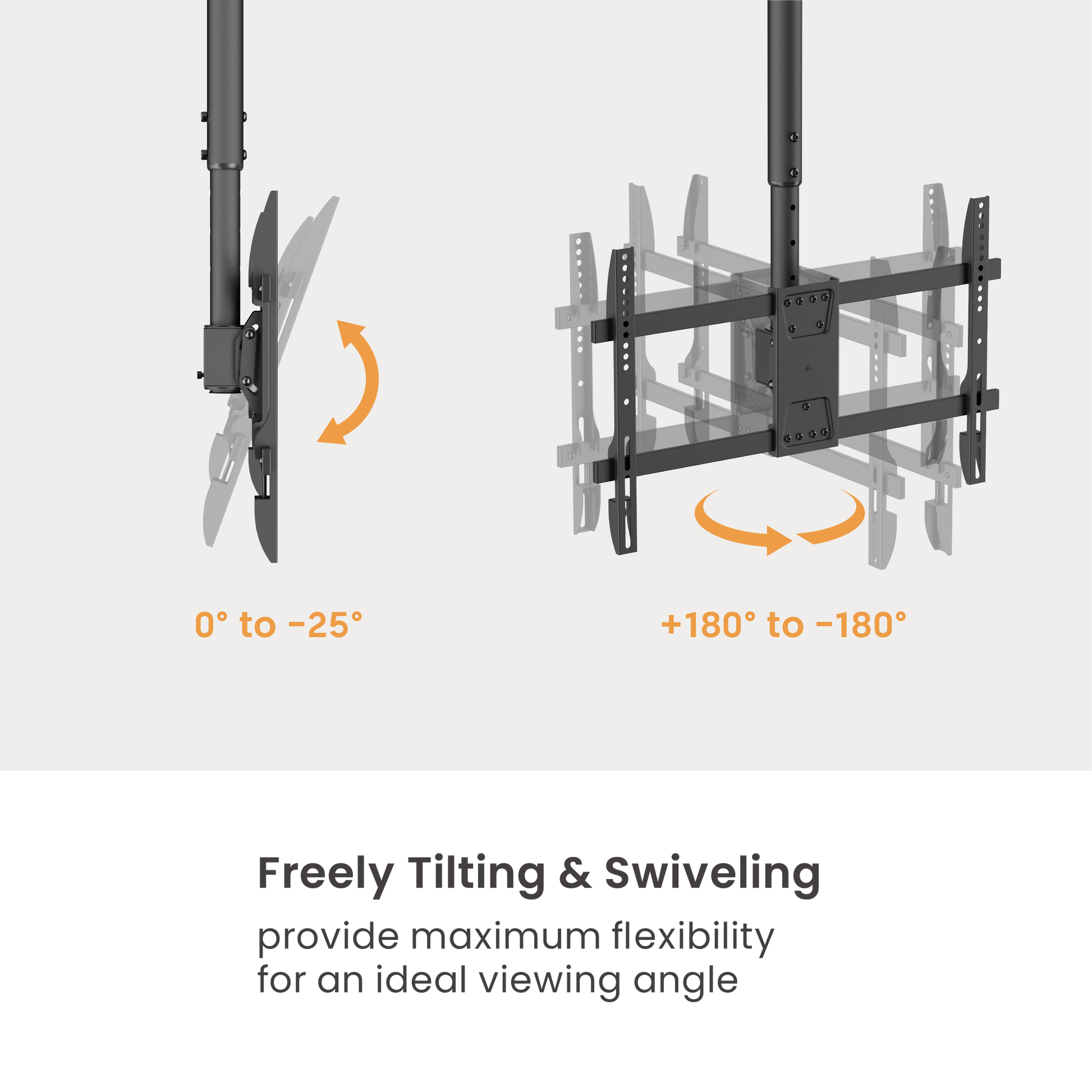

Once installed, the display can rotate a full 360 degrees around the pole, tilt down to -25 degrees, and fine-level plus or minus 3 degrees, giving installers an easy way to perfectly square up the screen after hanging it. Built-in cable management routes wiring through the pole itself for a clean, professional finish with no visible cabling.

Key Features

Heavy-duty 60 kg load rating: steel construction with a strength-tested four times rating, suited to large commercial displays.

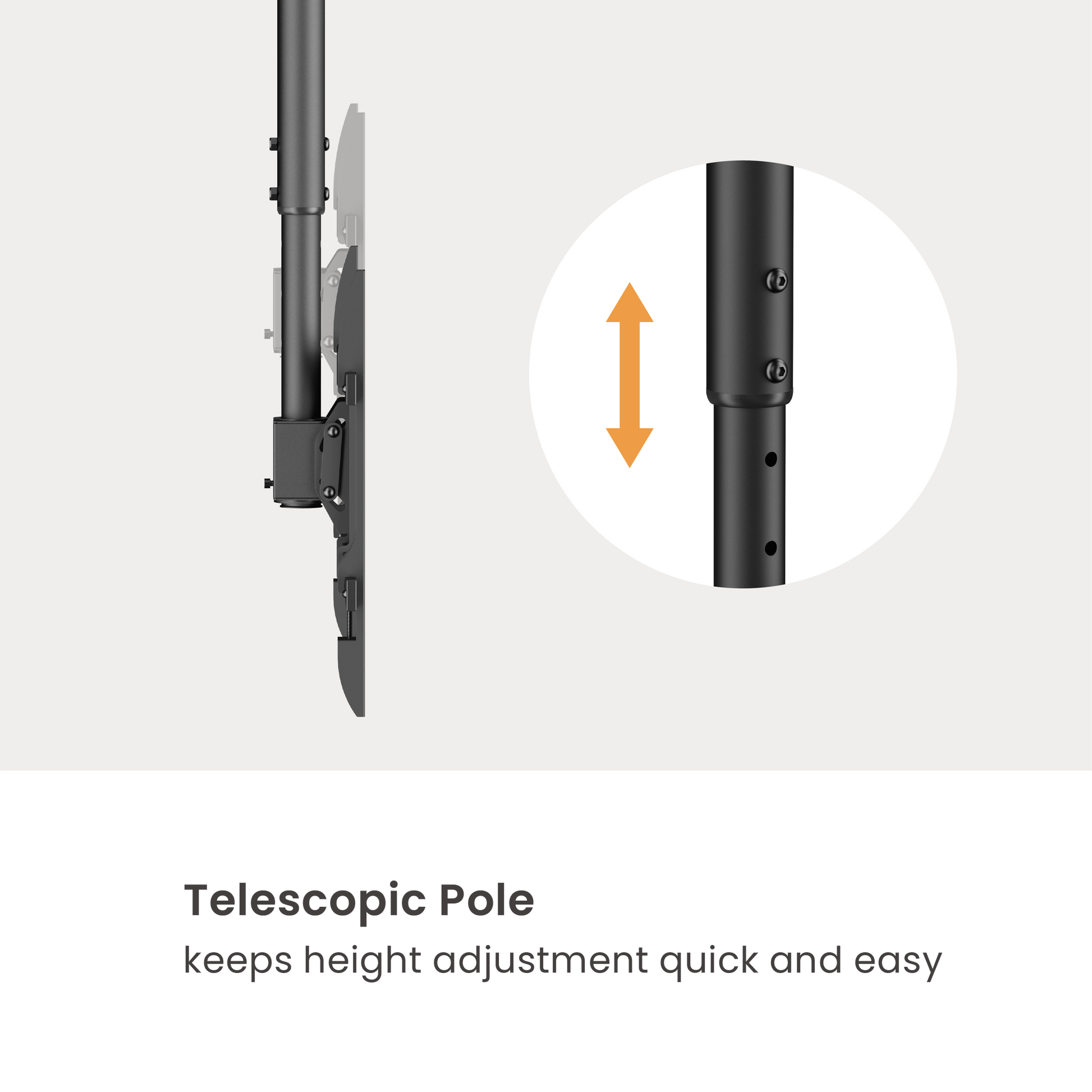

Telescoping pole, 1090 to 1690mm: adjustable height range covers a wide range of ceiling heights from a single mount.

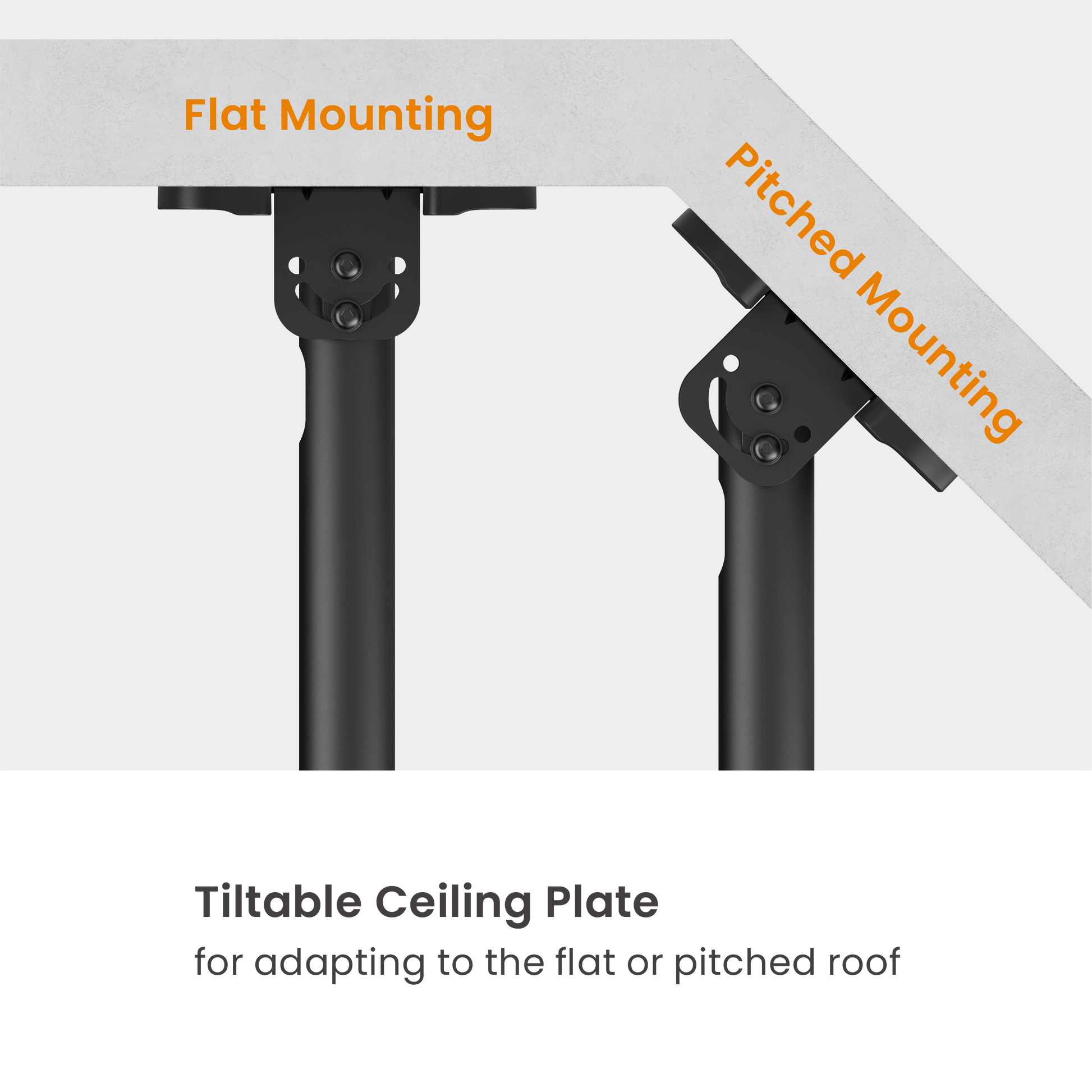

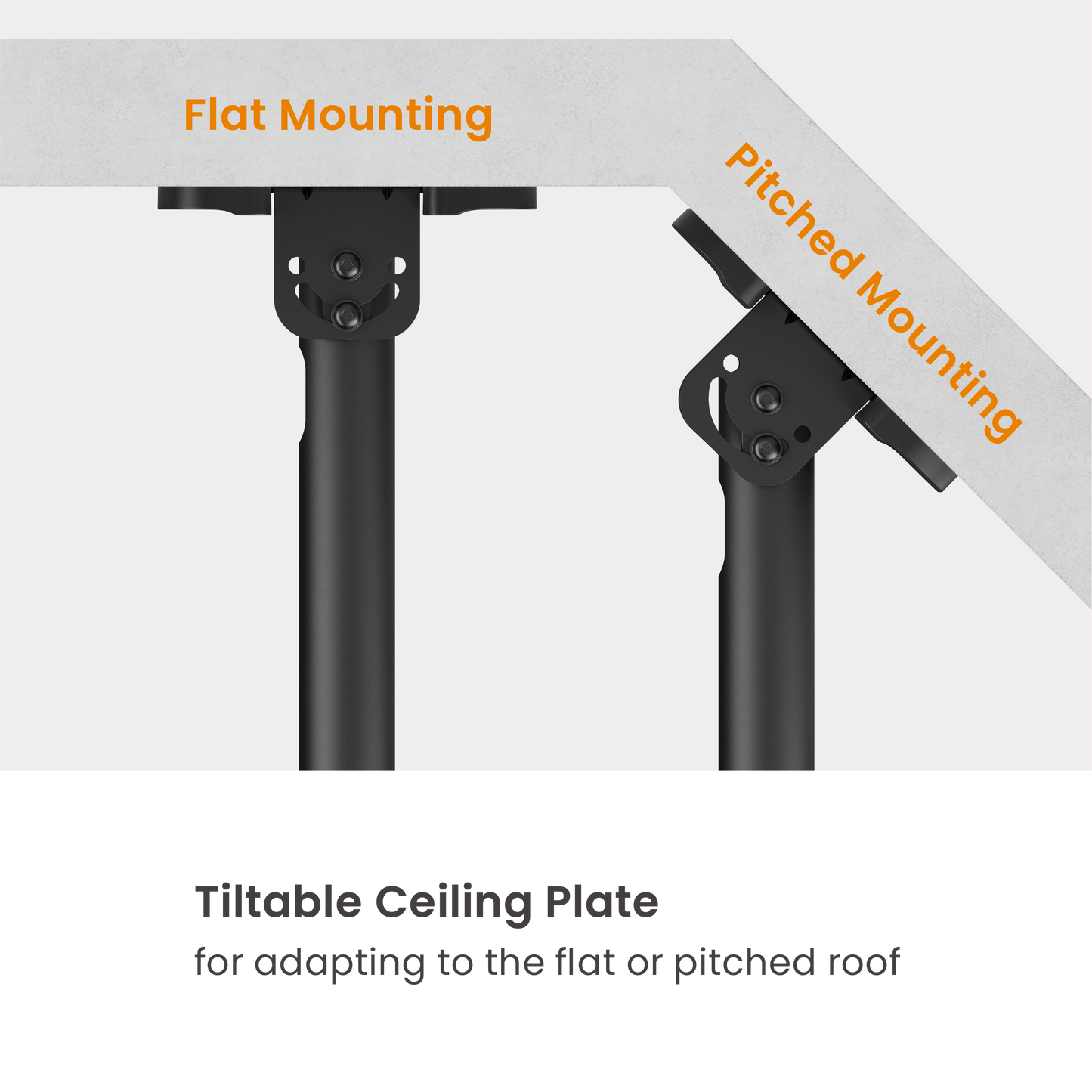

Tiltable ceiling plate: adapts to both flat and pitched roof structures, rather than requiring a flat ceiling only.
360 degree rotation: full rotation around the pole for flexible positioning and viewing angles.
Tilt to -25 degrees: angles the display downward, useful when the mount sits higher than eye level.

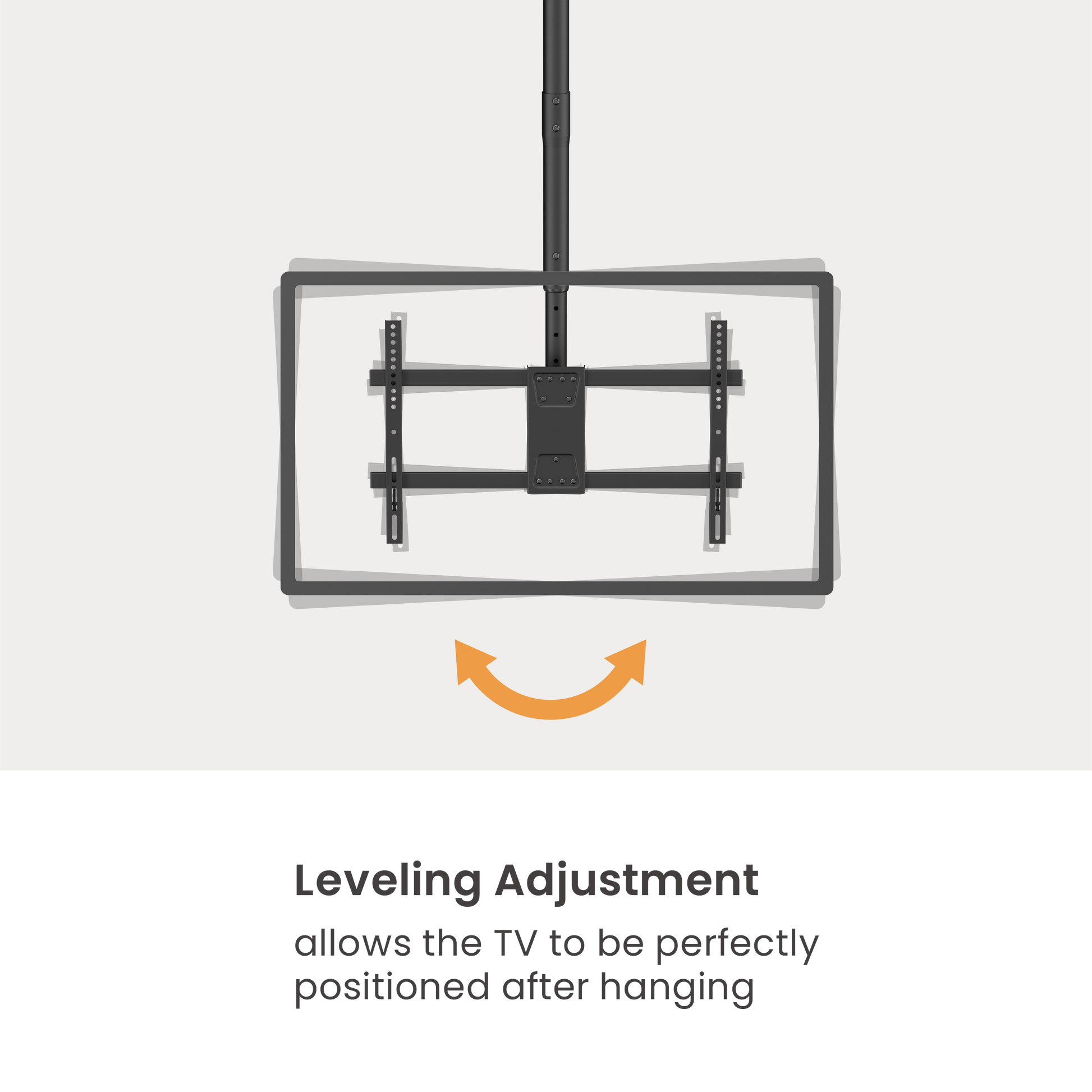

Leveling adjustment, plus or minus 3 degrees: squares up the screen precisely after installation.

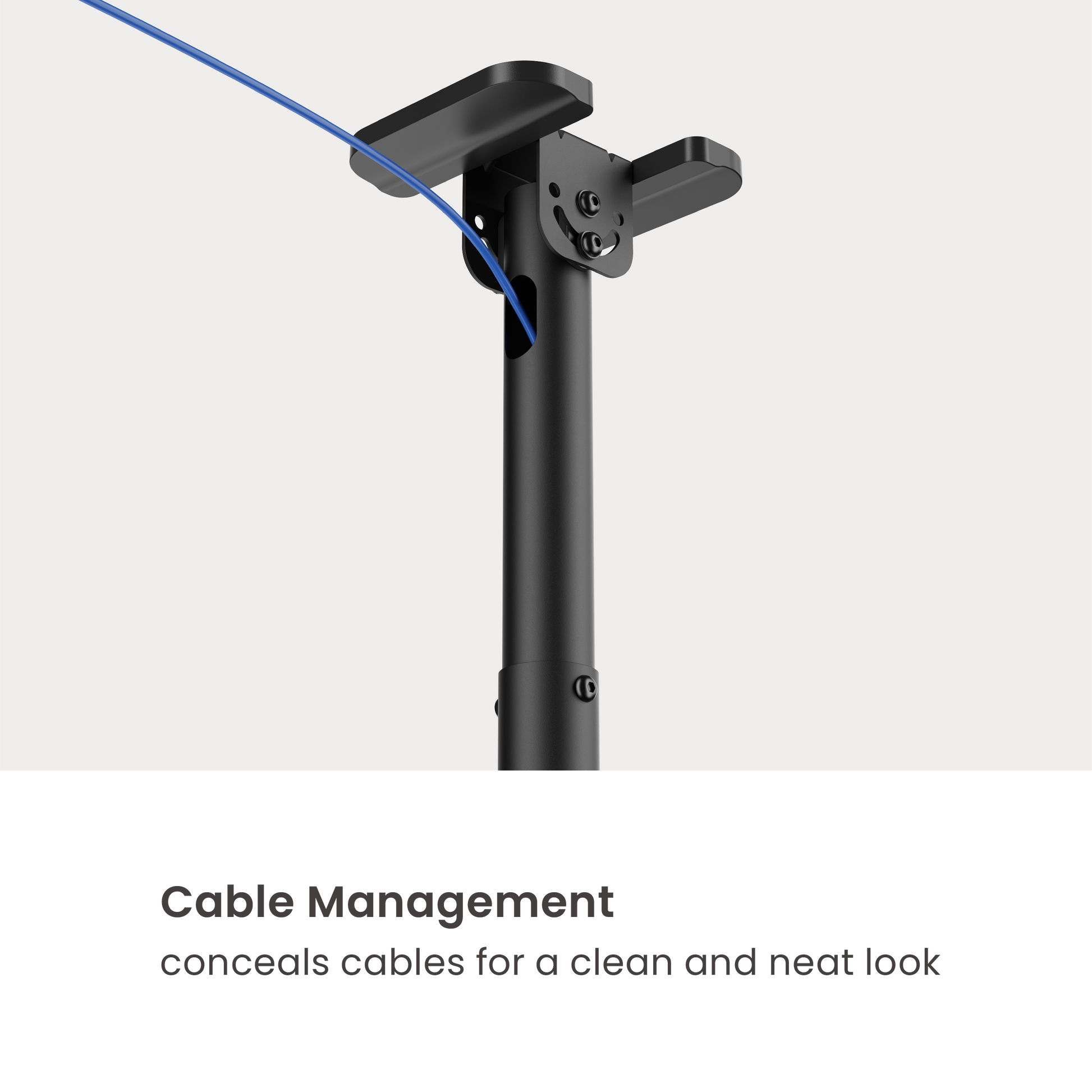

Integrated cable management: routes cabling through the pole for a clean, concealed finish.
Wide VESA range: supports patterns from 200x200mm up to 600x400mm, covering most displays in this size class.

Applications

The VCM-CE1546L is built for commercial spaces across the UAE and GCC where a ceiling mount is the only practical option: open-plan retail floors, airport terminals, supermarkets, conference and meeting rooms with a central table layout, and restaurant or QSR dining areas where wall space is limited or blocked by glass, columns, or signage. Its long telescoping pole also suits double-height lobbies and atriums.

Because it spans a 43"-86" range and adjusts through a wide height window, a single mount model can cover a broad mix of ceiling heights and screen sizes across a multi-location rollout, simplifying specification for integrators.

Installation & Setup

Secure the ceiling plate to a structurally sound ceiling joist or slab, tilting the plate first if mounting to a pitched roof. Extend the telescoping pole to the required height and lock it in place, then attach the display to the VESA bracket and use the leveling adjustment to square it up. Route cables down through the pole for a clean finish. Given the weight and ceiling-mounted nature of this installation, a two-person team and a structural safety check are recommended.

If you'd rather not handle the installation yourself, mounts.ae also offers professional installation across the UAE. Simply select the installation option when you submit the quote form.

Why Buy the VCM-CE1546L from Mounts.ae?

Genuine VSYS build quality, backed by our own warranty support
Fast delivery across Dubai, Abu Dhabi, and the wider UAE/GCC
Optional professional installation available UAE-wide, request it on the same quote form
Dedicated guidance for AV integrators, system integrators, and facilities teams sourcing at scale
Flexible quotes for bulk, corporate, and project-based orders

For project quantities or full technical documentation, use the Request a Quote button on this page or message us on WhatsApp.

View full details

Technical specifications

Load capacity	60 kg (132 lbs)
VESA compatibility	200x200mm - 600x400mm (max hole 610x402mm)
Screen size range	43" - 86"
Mount movement	Tilt 0 to -25 degrees, 360 degree rotation, +/-3 degree leveling
Material	1.5-2.5mm cold-rolled steel, powder-coated black
Wall clearance	Telescoping pole 1090-1690mm (42.9"-66.5")
Certifications	Strength tested 4x

Product details

Use the Request a Quote button on this page or message us on WhatsApp for more on the VCM-CE1546L.

Package Contents

Each VCM-CE1546L ships with the tiltable ceiling plate, the telescoping pole, the VESA bracket, a full mounting hardware kit, and printed installation instructions.

Warranty

Every VSYS product from Mounts.ae is backed by a 1-year replacement warranty covering manufacturing defects and product malfunctions. This warranty does not cover damage or performance issues arising from normal usage, misuse, or improper installation. If a genuine manufacturing defect is confirmed within the warranty period, we will replace the product.

Sustainability

The VCM-CE1546L is built from cold-rolled steel, a fully recyclable material, with a durable powder-coated finish designed to resist corrosion and wear over years of use, reducing the need for replacement.

Expandability

The VCM-CE1546L's wide VESA range (200x200mm to 600x400mm) and adjustable pole height mean it can accommodate a range of display sizes and ceiling heights within its rated class, giving you flexibility if you upgrade to a different screen later.

Distribution

Mounts.ae holds VSYS stock in the UAE for fast dispatch, with delivery available across Dubai, Abu Dhabi, and the wider GCC.

For more information on the VCM-CE1546L, use the Request a Quote button on this page or message us on WhatsApp.

Frequently asked questions

What size TVs and displays does this ceiling mount support?

The VCM-CE1546L is designed for flat and curved displays from 43 up to 86 inches. As long as your screen falls within that size range and its weight and VESA pattern match the mount's specifications, it will mount securely, covering most large commercial displays in this class.

What is the maximum weight it can hold?

It carries displays up to 60 kg (132 lbs). The mount is built from cold-rolled steel and strength-tested four times, giving a dependable safety margin for large, permanently installed commercial panels hanging from the ceiling.

What VESA patterns is it compatible with?

It supports VESA mounting patterns from 200x200mm up to 600x400mm, with a maximum mounting-hole spread of 610x402mm. That range covers most 43 to 86 inch displays; check the pattern on the back of your screen or in its manual to confirm the fit.

Which TV and display brands does this mount work with?

Because it covers VESA patterns up to 600x400mm and up to 60 kg, it fits most 43 to 86 inch displays from major brands including Samsung, LG, Sony, Hisense, and commercial signage manufacturers. Always check your display's VESA pattern and weight in its manual, or send us the model number to confirm.

How much does this mount tilt and rotate?

It tilts from 0 to -25 degrees for a downward viewing angle, rotates a full 360 degrees around the pole, and includes plus or minus 3 degree leveling adjustment to square the screen up precisely after installation.

Can it be installed on a pitched or sloped ceiling?

Yes. The ceiling plate itself tilts to adapt to either a flat or a pitched roof, so it installs securely on sloped ceiling structures as well as standard flat slabs, without needing a separate bracket.

Does mounts.ae offer installation services?

Yes. Mounts.ae offers professional installation across the UAE as an add-on to your order. Simply select the installation option when you submit the Request a Quote form, or mention it when you message us on WhatsApp, and we'll include it in your quote alongside the mount itself. See our installation services page for full details on residential and bulk installs.

How do I order this for a bulk or project installation?

Use the Request a Quote button on this page, or message us on WhatsApp with your quantity and project details. We supply system integrators and businesses on a project basis across the UAE and GCC, and we'll follow up with next steps for your requirement.

Where can I buy VSYS ceiling mounts?

VSYS ceiling mounts are available through mounts.ae, based in the UAE and serving system integrators and businesses across the UAE and GCC. Use the Request a Quote button on this page, or message mounts.ae directly on WhatsApp, to get started with your order or enquiry.
