VSYS

Ergonomic Single Monitor Arm for 17"-32" Monitors, Up to 9 kg (VMAE-C012WS) | VSYS

Screen Size 17" - 32"
Max VESA 100x100mm
Max Weight 9 kg

Use the Request a Quote button on this page or message us on WhatsApp to check pricing and availability for the VMAE-C012WS.

Overview

The VSYS VMAE-C012WS is a spring-assisted single monitor arm engineered to give you complete, finger-tip control over how your screen sits on the desk: height, tilt, swivel, and depth all adjust smoothly and hold wherever you set them. At the heart of the arm is a self-adjusting spring counterbalance that automatically matches its lifting force to the weight of your monitor, so a light 2 kg panel and a heavy 9 kg display both glide effortlessly and stay locked in position without drifting or sagging over time.

By lifting the monitor off its factory stand and onto the arm, you reclaim the desk space the stand used to occupy, bring the screen up to a healthier eye-level viewing height, and make it easy to reposition or share the display throughout the day. It's a straightforward upgrade that measurably improves posture, comfort, and desk ergonomics for anyone who spends long hours at a workstation.

Key Features

Spring-assisted counterbalance: a mechanical spring carries the monitor's weight for you, allowing smooth, tool-free height and angle changes that hold firm at any point, with no knobs to loosen and retighten every time you move the screen.
Self-adjusting weight compensation: a single tension adjustment tunes the arm to your exact monitor, anywhere across its 2-9 kg range, so movement stays balanced whether you upgrade to a larger panel later or not.

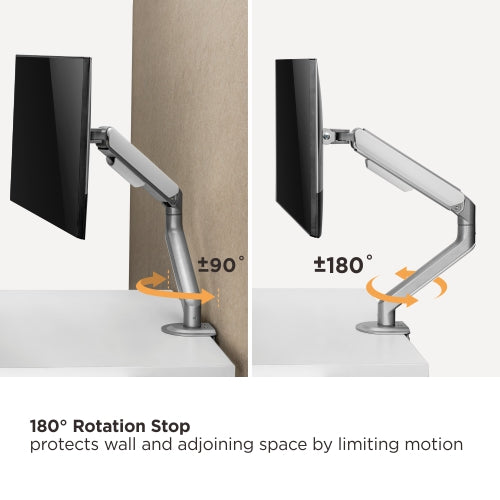

180° rotation stop: a built-in limiter stops the arm before it can swing into a wall, partition, or neighbouring monitor, essential in back-to-back desk clusters and against-the-wall installations.

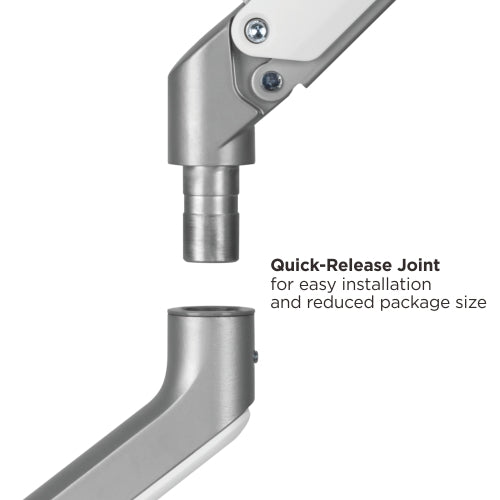

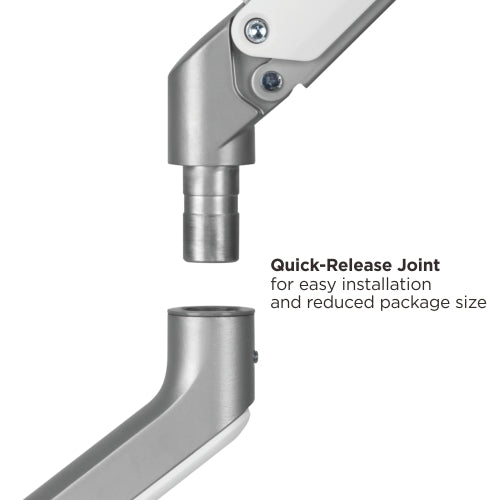

Quick-release joint: the arm separates at a quick-release joint for faster installation and a more compact shipping carton, lowering freight and storage costs on volume and project orders.
Integrated cable management: cables route cleanly along the length of the arm, keeping the desk tidy and protecting cables as the screen moves.
Dual mounting included: both a desk clamp (for desktops 10-80mm thick) and a grommet mount (10-40mm) ship in the box, so the arm fits almost any desk without buying extra parts.

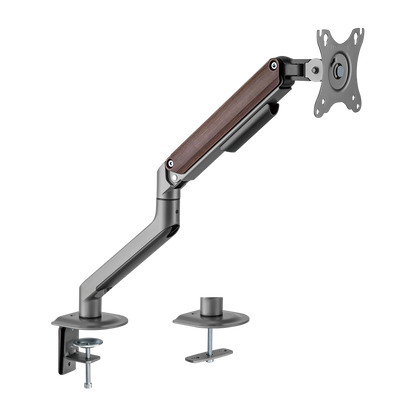

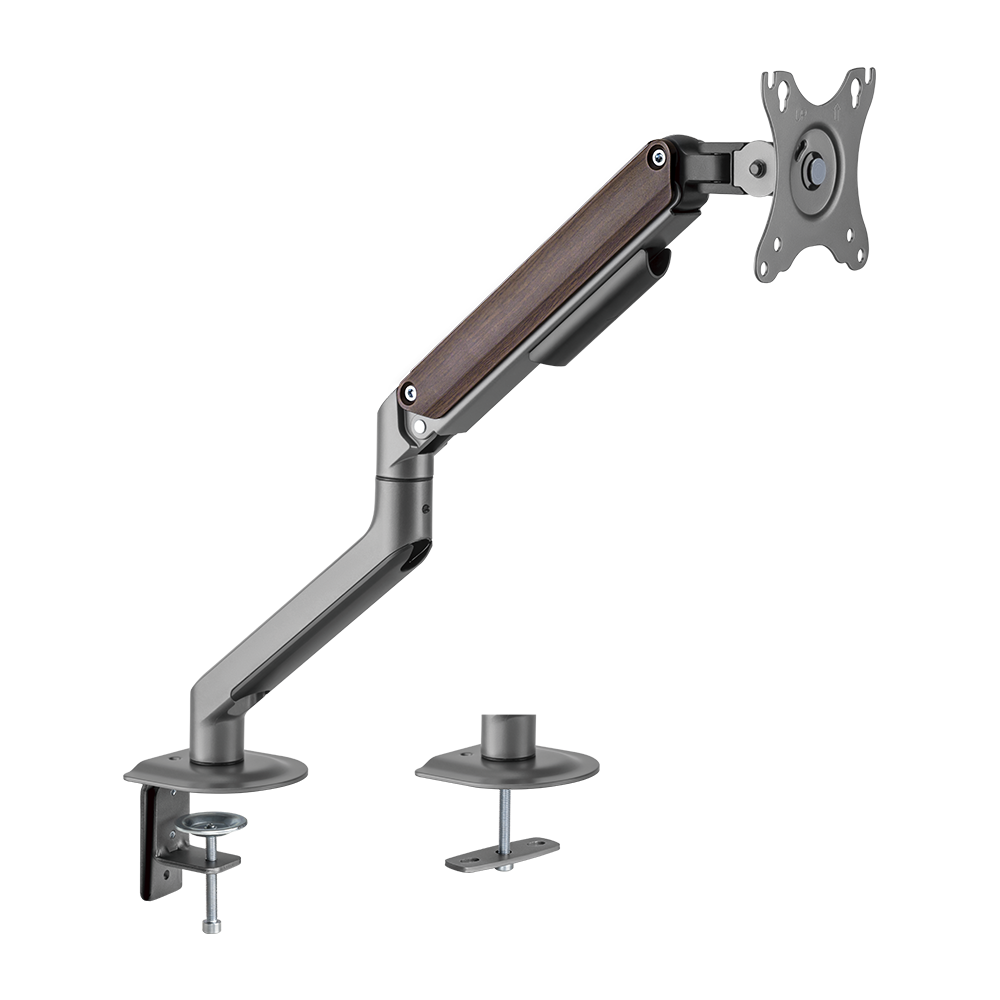

Three finishes: Space Grey, Matte Silver, and Space Grey & Wood, to match different office and home interiors.

Applications

The VMAE-C012WS is built for demanding desk environments across the UAE and GCC. In enterprise IT departments, NOC and SOC control rooms, and trading and dealing desks, it keeps single-monitor operator stations flexible and ergonomic through long shifts. In creative studios, engineering offices, and CAD workstations, the wide movement range lets users angle the screen precisely for detailed, colour-critical work.

It's equally at home in corporate offices adopting hot-desking and agile layouts, where monitors need to reposition quickly for different users, and in home offices, universities, and computer labs running standard 17" to 32" monitors. Wherever a screen needs to move freely and hold its position, this arm delivers a clean, professional, space-saving setup.

Installation & Setup

Installation is straightforward. Choose either the included desk clamp or grommet mount and fix the base to the desk, snap the arm onto the base at the quick-release joint, then attach your monitor to the detachable VESA plate and click it onto the arm. A built-in direction indicator helps you align everything quickly, and the spring tension can be fine-tuned to your exact monitor weight with a single adjustment. No specialist tools are needed beyond the included hardware.

If you'd rather not handle the installation yourself, mounts.ae also offers professional installation across the UAE. Simply select the installation option when you submit the quote form.

Why Buy the VMAE-C012WS from Mounts.ae?

Genuine VSYS build quality, backed by our own warranty support
Fast delivery across Dubai, Abu Dhabi, and the wider UAE/GCC
Optional professional installation available UAE-wide, request it on the same quote form
Dedicated guidance for AV integrators, system integrators, and facilities teams sourcing at scale
Flexible quotes for bulk, corporate, and project-based orders

For project quantities or full technical documentation, use the Request a Quote button on this page or message us on WhatsApp.

View full details

Technical specifications

Load capacity	2 - 9 kg (4.4 - 19.8 lbs) per screen
VESA compatibility	75x75mm, 100x100mm
Screen size range	17" - 32"

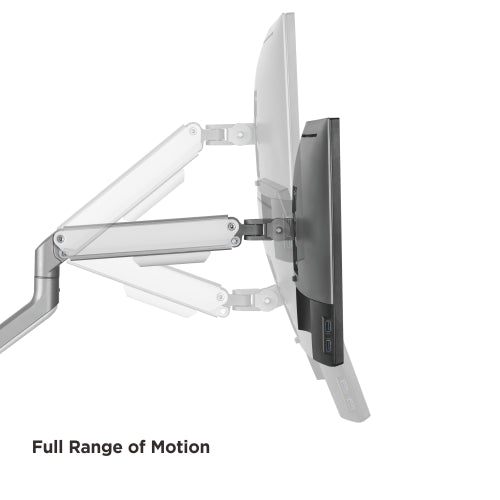

Mount movement	Tilt +/-55 degrees, swivel +/-90 degrees, rotation +/-180 degrees, spring-assisted height adjustment
Material	Steel and aluminum, powder-coated finish
Certifications	RoHS compliant

Product details

Use the Request a Quote button on this page or message us on WhatsApp for more on the VMAE-C012WS.

Package Contents

Each VMAE-C012WS ships with the arm, a detachable VESA plate, both a desk clamp and a grommet mount, and printed installation instructions.

Warranty

Every VSYS product from Mounts.ae is backed by a 1-year replacement warranty covering manufacturing defects and product malfunctions. This warranty does not cover damage or performance issues arising from normal usage, misuse, or improper installation. If a genuine manufacturing defect is confirmed within the warranty period, we will replace the product.

Sustainability

The VMAE-C012WS is RoHS compliant and built from steel and aluminum, both fully recyclable materials, with a durable powder-coated finish designed for years of daily use.

Expandability

The VMAE-C012WS's detachable VESA plate (75x75mm and 100x100mm) means it can accommodate a range of monitor models within its rated size and weight class, giving you flexibility if you upgrade to a different screen later.

Distribution

Mounts.ae holds VSYS stock in the UAE for fast dispatch, with delivery available across Dubai, Abu Dhabi, and the wider GCC.

For more information on the VMAE-C012WS, use the Request a Quote button on this page or message us on WhatsApp.

Frequently asked questions

What size monitors does this arm support?

The VMAE-C012WS is designed for a single monitor between 17 and 32 inches, including curved screens. As long as your display falls within that size range and its weight and VESA pattern match the arm's specifications, it will mount securely, covering the large majority of office and home monitors sold today.

How much weight can it hold?

The arm supports 2 to 9 kg (4.4 to 19.8 lbs). A self-adjusting spring counterbalance matches the lifting force to your monitor's weight, so the screen glides smoothly and holds its position at any height without drifting, whether you run a light panel or a heavier professional display.

What VESA patterns is it compatible with?

It supports the 75x75mm and 100x100mm VESA mounting patterns, which are the two standards used by the vast majority of 17 to 32 inch monitors. If your monitor lists either pattern in its manual or on the back panel, it will fit this arm directly.

Which monitor brands does it work with?

Because it covers the 75x75mm and 100x100mm VESA patterns used by most 17 to 32 inch monitors, it fits the vast majority of models from Dell, HP, LG, Samsung, ASUS, and Lenovo. Always check your monitor's VESA pattern and weight in its manual, or send us the model and we'll confirm compatibility for you.

How far does the arm extend and adjust?

The arm reaches up to 453mm (17.8 inches) from its base and adjusts through a height range of 133mm to 428mm, so you can pull the screen close, push it back, or raise and lower it to a comfortable eye-level position throughout the day.

Does it tilt, swivel, and rotate?

Yes. It tilts +55 and -55 degrees for glare control, swivels plus or minus 90 degrees to share or angle the screen, and rotates plus or minus 180 degrees between landscape and portrait. A built-in rotation stop protects walls and partitions by limiting how far the arm can swing.

Does mounts.ae offer installation services?

Yes. Mounts.ae offers professional installation across the UAE as an add-on to your order. Simply select the installation option when you submit the Request a Quote form, or mention it when you message us on WhatsApp, and we'll include it in your quote alongside the mount itself. See our installation services page for full details on residential and bulk installs.

How do I order this for a bulk or project installation?

Use the Request a Quote button on this page, or message us on WhatsApp with your quantity and project details. We supply system integrators and businesses on a project basis across the UAE and GCC, and we'll follow up with next steps for your requirement.

Where can I buy VSYS monitor arms?

VSYS monitor arms are available through mounts.ae, based in the UAE and serving system integrators and businesses across the UAE and GCC. Use the Request a Quote button on this page, or message mounts.ae directly on WhatsApp, to get started with your order or enquiry.
