Ergonomic Dual Monitor Arm for 17"-32" Monitors, Up to 9 kg per Screen (VMAE-C024WS) | VSYS

Screen Size 17" - 32" per screen
Max VESA 100x100mm
Max Weight 9 kg per screen

Use the Request a Quote button on this page or message us on WhatsApp to check pricing and availability for the VMAE-C024WS.

Overview

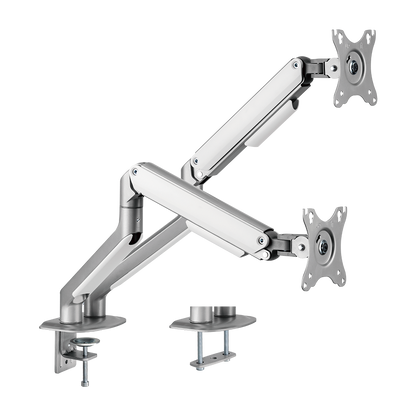

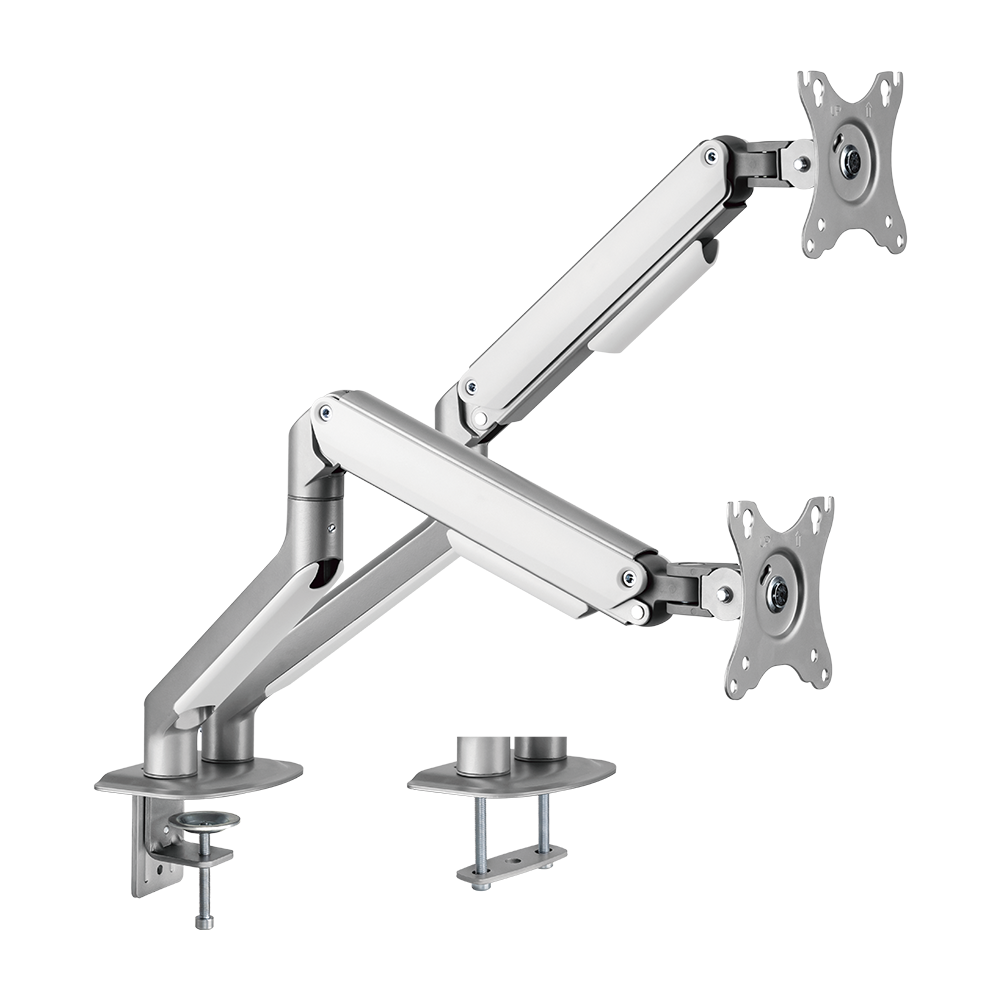

The VSYS VMAE-C024WS is a spring-assisted dual monitor arm that puts two screens under independent, finger-tip control: each arm adjusts for height, tilt, swivel, and depth on its own, and holds wherever you set it. A self-adjusting spring counterbalance on each arm matches its lifting force to the weight of the monitor it carries, so both screens glide effortlessly and stay locked in position without drifting or sagging over time, whether they're a matched pair or two different displays.

By lifting both monitors off their factory stands and onto a single desk-mounted base, you reclaim a large area of desk space, line the two screens up at a consistent, healthy eye-level height, and make it easy to angle each one independently throughout the day. It's a productivity and ergonomics upgrade built for anyone who works across two monitors for long hours.

Key Features

Independent spring-assisted arms: each screen adjusts and holds on its own, with a mechanical counterbalance carrying the weight for smooth, tool-free repositioning at any point.
Self-adjusting weight compensation: a per-arm tension adjustment tunes each side to its exact monitor, anywhere across the 2-9 kg range, keeping both screens balanced.

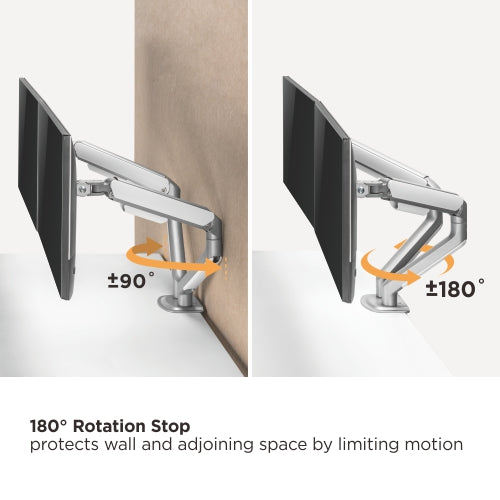

180° rotation stop: a built-in limiter on each arm prevents the screens from swinging into a wall, partition, or each other in tight dual-screen layouts.
Quick-release joints: the arms separate for faster installation and a more compact shipping carton, lowering freight and storage costs on volume and project orders.
Integrated cable management: cables route cleanly along each arm, keeping a two-monitor desk tidy and cables protected as the screens move.
Dual mounting included: both a desk clamp (for desktops 10-80mm thick) and a grommet mount (10-40mm) ship in the box, fitting almost any desk without extra parts.
Three finishes: Space Grey, Matte Silver, and Space Grey & Wood, to match different office and home interiors.

Applications

The VMAE-C024WS is built for the dual-screen desks common across the UAE and GCC. In enterprise IT departments, NOC and SOC control rooms, and trading and dealing desks, two-monitor operator stations are the norm, and this arm keeps both screens flexible and ergonomic through long shifts. In finance, engineering, design, and CAD workstations, users can dedicate one screen to reference material and angle the other for detailed work.

It's equally suited to corporate offices adopting hot-desking and agile layouts, as well as home offices and university computer labs running two standard 17" to 32" monitors. Wherever a two-screen setup needs to move freely, line up cleanly, and free up desk space, this dual arm delivers a professional, space-saving result.

Installation & Setup

Installation is straightforward. Fix the single base to the desk using either the included clamp or grommet mount, snap both arms onto the base at their quick-release joints, then attach each monitor to its detachable VESA plate and click it onto the arm. Direction indicators help you align both screens quickly, and each arm's spring tension can be fine-tuned to its monitor's weight with a single adjustment. No specialist tools are needed beyond the included hardware.

If you'd rather not handle the installation yourself, mounts.ae also offers professional installation across the UAE. Simply select the installation option when you submit the quote form.

Why Buy the VMAE-C024WS from Mounts.ae?

Genuine VSYS build quality, backed by our own warranty support
Fast delivery across Dubai, Abu Dhabi, and the wider UAE/GCC
Optional professional installation available UAE-wide, request it on the same quote form
Dedicated guidance for AV integrators, system integrators, and facilities teams sourcing at scale
Flexible quotes for bulk, corporate, and project-based orders

For project quantities or full technical documentation, use the Request a Quote button on this page or message us on WhatsApp.

View full details

Technical specifications

Load capacity	2 - 9 kg (4.4 - 19.8 lbs) per screen
VESA compatibility	75x75mm, 100x100mm
Screen size range	17" - 32" per screen
Mount movement	Tilt +/-55 degrees, swivel +/-90 degrees, rotation +/-180 degrees, independent spring-assisted height adjustment per arm
Material	Steel and aluminum, powder-coated finish
Certifications	RoHS compliant

Product details

Use the Request a Quote button on this page or message us on WhatsApp for more on the VMAE-C024WS.

Package Contents

Each VMAE-C024WS ships with both arms, two detachable VESA plates, a desk clamp, a grommet mount, and printed installation instructions.

Warranty

Every VSYS product from Mounts.ae is backed by a 1-year replacement warranty covering manufacturing defects and product malfunctions. This warranty does not cover damage or performance issues arising from normal usage, misuse, or improper installation. If a genuine manufacturing defect is confirmed within the warranty period, we will replace the product.

Sustainability

The VMAE-C024WS is RoHS compliant and built from steel and aluminum, both fully recyclable materials, with a durable powder-coated finish designed for years of daily use.

Expandability

The VMAE-C024WS's detachable VESA plates (75x75mm and 100x100mm) mean each arm can accommodate a range of monitor models within its rated size and weight class, giving you flexibility if you upgrade either screen later.

Distribution

Mounts.ae holds VSYS stock in the UAE for fast dispatch, with delivery available across Dubai, Abu Dhabi, and the wider GCC.

For more information on the VMAE-C024WS, use the Request a Quote button on this page or message us on WhatsApp.

Frequently asked questions

What size monitors does this dual arm support?

The VMAE-C024WS holds two monitors, each between 17 and 32 inches, including curved screens. As long as each display falls within that size range and its weight and VESA pattern match the arm's specifications, it will mount securely, covering the large majority of office and home monitors sold today.

How much weight can each arm hold?

Each arm supports 2 to 9 kg (4.4 to 19.8 lbs) independently. A self-adjusting spring counterbalance on each side matches the lifting force to that monitor's weight, so both screens glide smoothly and hold position at any height without drifting, even if the two displays are different weights.

What VESA patterns is it compatible with?

Both arms support the 75x75mm and 100x100mm VESA mounting patterns, the two standards used by the vast majority of 17 to 32 inch monitors. If your monitors list either pattern in their manual or on the back panel, they will fit this arm directly.

Which monitor brands does it work with?

Because it covers the 75x75mm and 100x100mm VESA patterns used by most 17 to 32 inch monitors, it fits the vast majority of models from Dell, HP, LG, Samsung, ASUS, and Lenovo. Always check each monitor's VESA pattern and weight in its manual, or send us the models and we'll confirm compatibility for you.

Can the two arms be adjusted independently?

Yes. Each arm moves and holds separately, reaching up to 453mm (17.8 inches) from the base with a height range of 133mm to 428mm, so you can set the two screens at different heights and angles to suit how you work across them.

Does each arm tilt, swivel, and rotate?

Yes. Each arm tilts +55 and -55 degrees for glare control, swivels plus or minus 90 degrees, and rotates plus or minus 180 degrees between landscape and portrait. A rotation stop on each arm protects walls, partitions, and the neighbouring screen by limiting how far it can swing.

Does mounts.ae offer installation services?

Yes. Mounts.ae offers professional installation across the UAE as an add-on to your order. Simply select the installation option when you submit the Request a Quote form, or mention it when you message us on WhatsApp, and we'll include it in your quote alongside the mount itself. See our installation services page for full details on residential and bulk installs.

How do I order this for a bulk or project installation?

Use the Request a Quote button on this page, or message us on WhatsApp with your quantity and project details. We supply system integrators and businesses on a project basis across the UAE and GCC, and we'll follow up with next steps for your requirement.

Where can I buy VSYS monitor arms?

VSYS monitor arms are available through mounts.ae, based in the UAE and serving system integrators and businesses across the UAE and GCC. Use the Request a Quote button on this page, or message mounts.ae directly on WhatsApp, to get started with your order or enquiry.
