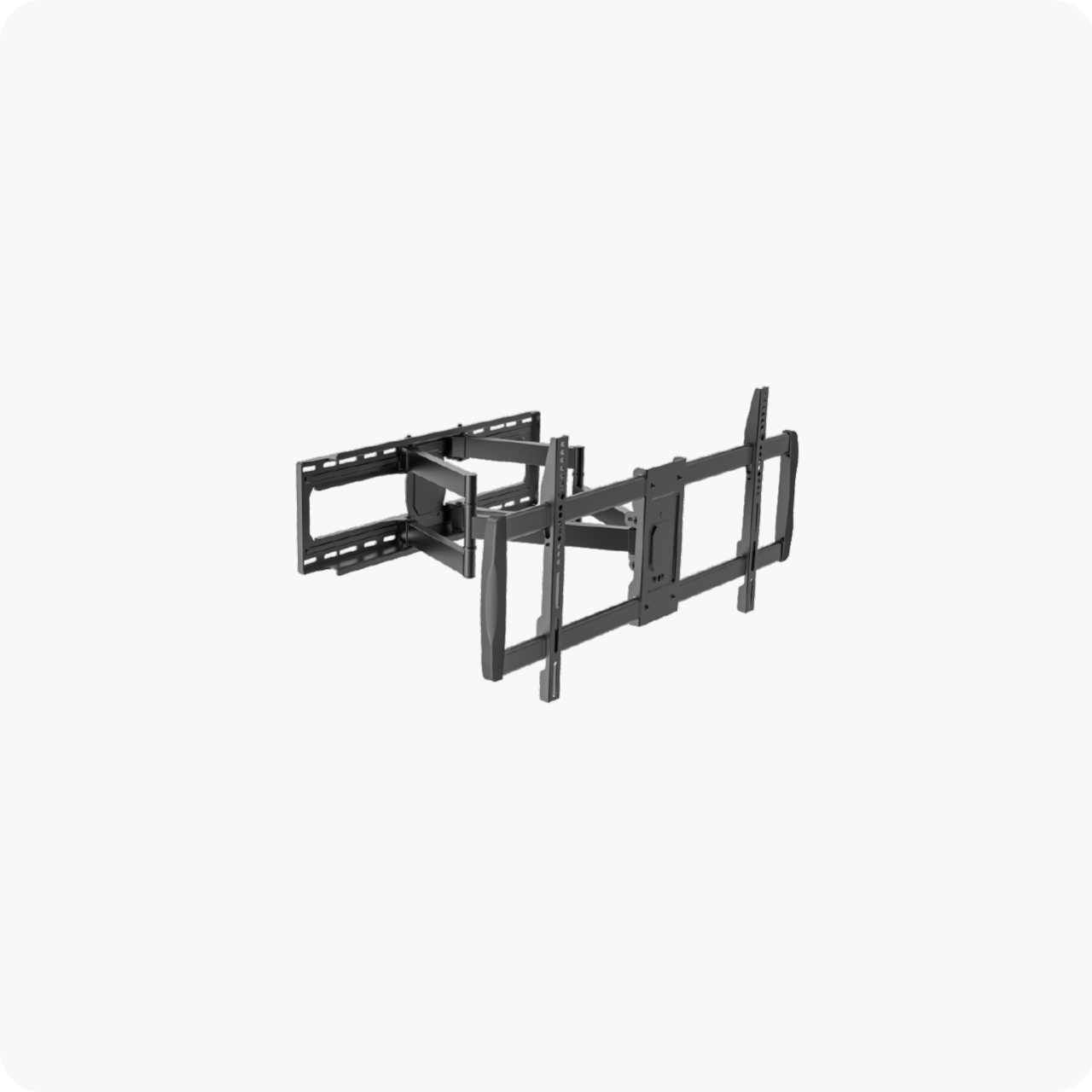

Full Motion TV Wall Mount for 42"-90" TVs, Up to 55 kg (FS-407-STD)

Screen Size 42" - 90"

Use the Request a Quote button on this page or message us on WhatsApp to check pricing and availability for the FS-407-STD.

Overview

The FS-407-STD is a full motion wall mount for large displays from 42" up to 90", supporting screens up to 55 kg and VESA patterns up to 800x400mm. It extends out from the wall between 85mm and 600mm, swivels up to 60° in either direction, and tilts from +5° to -15°, giving large displays flexible positioning for rooms with more than one viewing area.

This combination of long reach, wide swivel, and tilt range makes the FS-407-STD well suited to large living rooms, open-plan spaces, and commercial areas where a bigger display needs to be viewed comfortably from different positions.

Key Features

Fits 42"-90" displays: covers large TVs and big-screen monitors.
Up to 55 kg load rating: a steel arm assembly built for larger flat-panel displays.
85-600mm extension: pull the screen out for closer or angled viewing.
±60° swivel: rotate the display toward different seating or standing positions.
+5° to -15° tilt: angle the screen up or down for the best viewing comfort.
VESA up to 800x400mm: covers the wide mounting patterns used on large displays.

Applications

The FS-407-STD suits large living rooms, open-plan offices, retail floors, and meeting rooms across the UAE where a large display needs to swing out and turn to face more than one viewing position.

Its tilt range also helps where the display is mounted above eye level and needs to be angled down for comfortable viewing.

Installation & Setup

Installation involves fixing the wall plate to a solid wall using appropriate fixings, attaching the arm assembly to the display's VESA points, then mounting the arm to the wall plate and testing the swivel, tilt, and extension range before final tightening. Given the size of the display, a second installer is recommended.

mounts.ae also offers professional installation across the UAE for mounts like the FS-407-STD — select the installation option on the quote form to arrange it.

Why Buy the FS-407-STD from Mounts.ae?

Reliable build quality, backed by our own warranty support
Full swivel, tilt, and extension range for large displays
Fast delivery across Dubai, Abu Dhabi, and the wider UAE/GCC
Optional professional installation available UAE-wide, request it on the same quote form
Flexible quotes for bulk, corporate, and project-based orders

For project quantities or more information on the FS-407-STD, use the Request a Quote button on this page or message us on WhatsApp.

View full details

Technical specifications

Load capacity	55 kg (121 lbs)
VESA compatibility	Up to 800x400mm
Screen size range	42" - 90"
Mount movement	Full Motion (swivel ±60°, tilt +5° to -15°)
Wall clearance	85mm - 600mm (extendable)

Product details

Use the Request a Quote button on this page or message us on WhatsApp to check pricing and availability for the FS-407-STD.

Package Contents

Full motion arm assembly, wall plate, and the mounting hardware kit needed for installation on a solid wall.

Warranty

Every product from Mounts.ae is backed by a 1-year replacement warranty covering manufacturing defects and product malfunctions. This warranty does not cover damage or performance issues arising from normal usage, misuse, or improper installation. If a genuine manufacturing defect is confirmed within the warranty period, we will replace the product.

Sustainability

The FS-407-STD is built from a reinforced steel arm assembly designed for a long service life under repeated swivel, tilt, and extension use.

Expandability

Its VESA compatibility of up to 800x400mm means it can accommodate a range of compatible large displays as your setup changes.

Distribution

Stocked and distributed by Mounts.ae across Dubai, Abu Dhabi, and the wider UAE and GCC region.

For more information or bulk pricing, use the Request a Quote button on this page or message us on WhatsApp.

Frequently asked questions

What is the maximum TV size the FS-407-STD supports?

The FS-407-STD is rated for large displays from 42" up to 90", suitable for large TVs and big-screen monitors.

How much weight can the FS-407-STD hold?

The FS-407-STD has a maximum load capacity of 55 kg (121 lbs), built for larger flat-panel displays.

What VESA patterns is the FS-407-STD compatible with?

The FS-407-STD supports VESA mounting patterns up to 800x400mm, covering the wide hole patterns used on large displays.

How far can the FS-407-STD extend from the wall?

The FS-407-STD extends from 85mm up to 600mm from the wall, letting you pull the screen out for closer or angled viewing.

Does the FS-407-STD swivel and tilt?

Yes. The FS-407-STD swivels up to ±60° and tilts from +5° to -15°, so the screen can be turned and angled toward almost any position in the room.

Will the FS-407-STD fit my TV brand?

The FS-407-STD is a universal wall mount designed to work with any display brand that falls within its supported screen size, weight, and VESA range. Check your display's VESA pattern and weight against these specs before ordering.

Can Mounts.ae install the FS-407-STD for me?

Yes. Given the size of the display, professional installation is recommended. Select the installation option on the quote form or mention it when you message us on WhatsApp. See our installation services page for full details on residential and bulk installs.

Can I order the FS-407-STD in bulk for a project?

Yes. We regularly supply AV integrators, contractors, and facilities teams with bulk orders. Submit a quote request with your required quantity and we'll respond with availability and lead time.

Where can I buy the FS-407-STD in the UAE?

You can request a quote directly on this page or message us on WhatsApp, and the Mounts.ae team will confirm availability and delivery across Dubai, Abu Dhabi, and the wider UAE.
