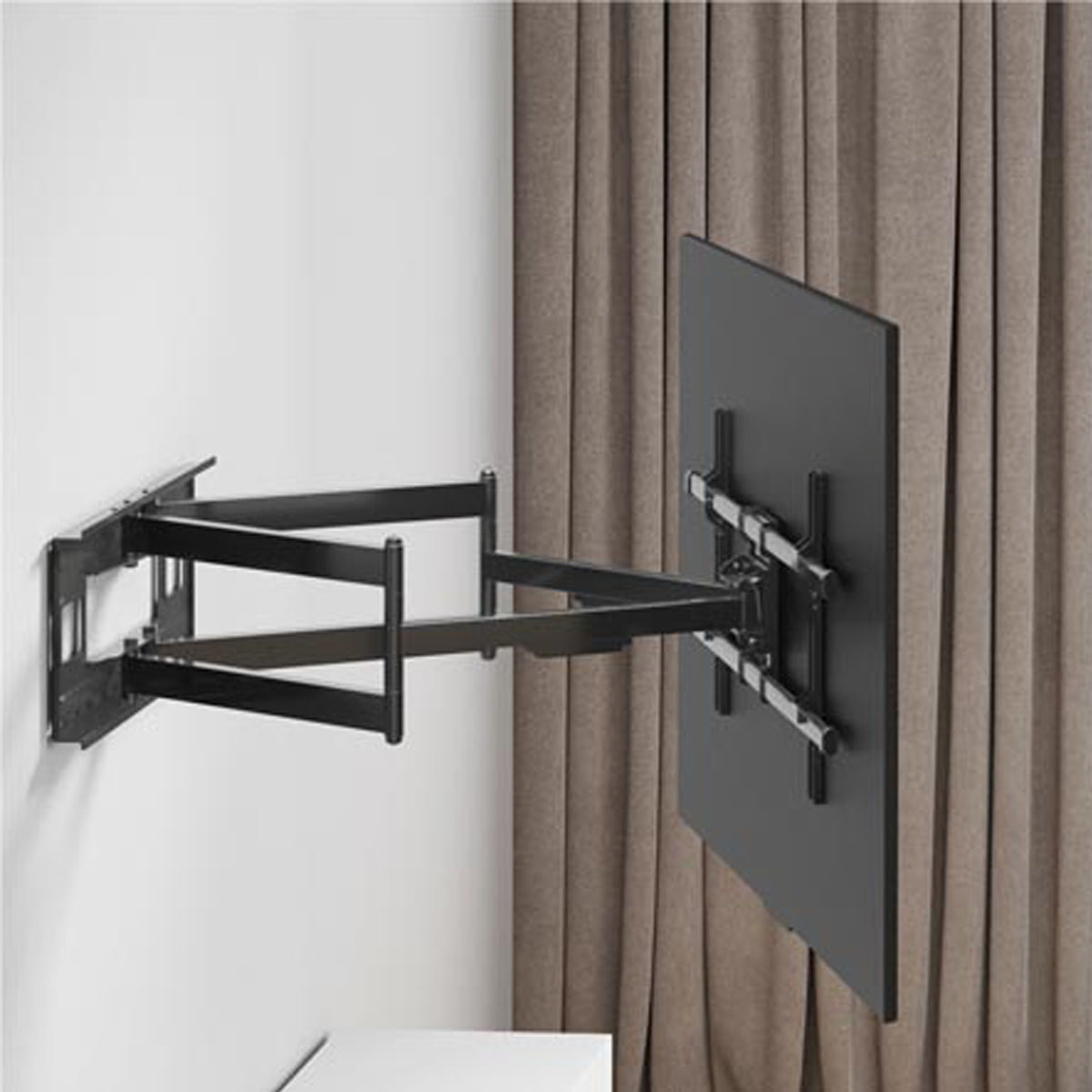

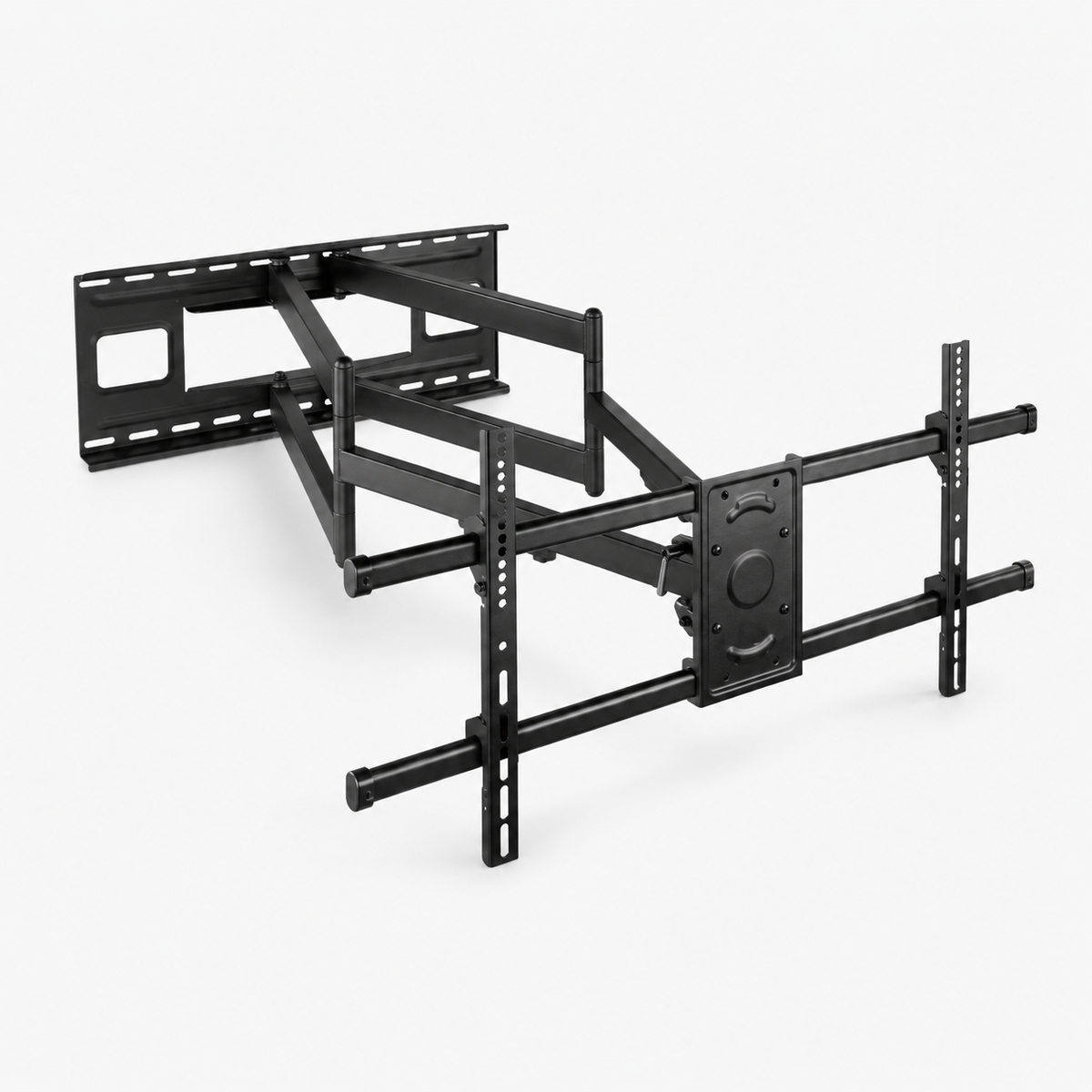

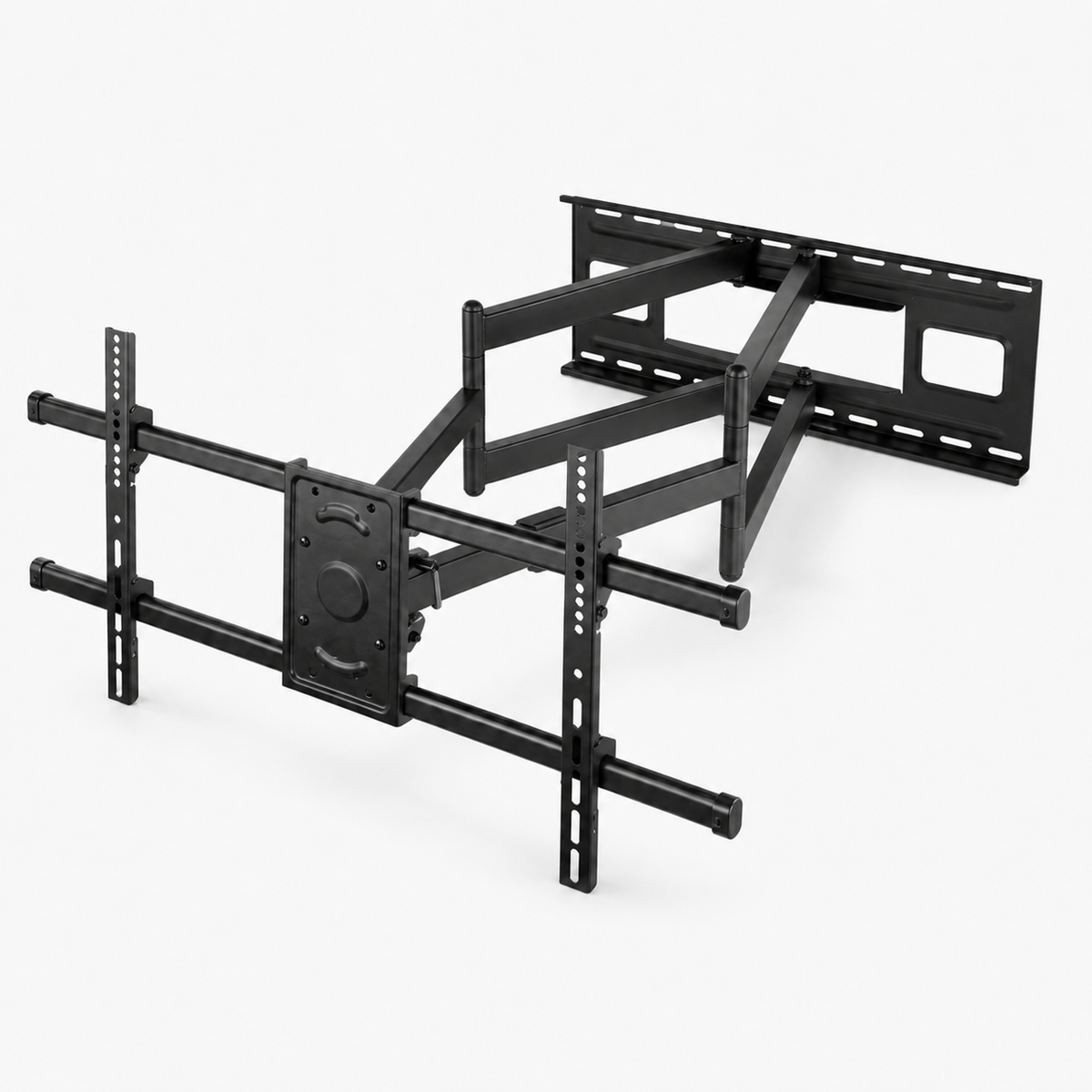

Heavy-Duty Full-Motion TV Wall Mount for 43"-90" TVs, Up to 80 kg (SH-1016P)

Package Contents

1x SH-1016P double-arm heavy-duty wall mount mechanism, adjustable rail brackets, hook-on bubble level, direction indicator, TV mounting hardware, wall mounting hardware, printed installation instructions.

Warranty

This product is covered by Mounts.ae's flat 1-year replacement warranty, covering manufacturing defects and product malfunctions. It does not cover normal usage wear, misuse, or damage from improper installation. Contact our team with your order details if an issue arises within the warranty period and we will arrange a replacement.

Sustainability

The SH-1016P is built from cold-rolled and pickling steel, fully recyclable materials, and engineered for long-term structural durability rather than disposable use, supporting large displays for years without replacement.

Expandability

The SH-1016P's 800x400mm rail-based VESA compatibility and 80kg capacity suit most 43 to 90 inch TVs, so the same mount can carry a future TV upgrade as long as it falls within this rail range and weight limit.

Distribution

Mounts.ae distributes the SH-1016P across the UAE, with professional installation available as an add-on service given its size and reach. Reach out through the quote form or WhatsApp for stock availability, pricing, and delivery timelines to your location.

The SH-1016P is designed for TVs from 43 to 90 inches, including curved models, using slotted rail brackets that support VESA patterns up to 800x400mm rather than fixed hole positions. Check your TV's rear panel or user manual for its exact VESA spacing, and confirm it falls within this rail's adjustable range before ordering.

The SH-1016P has a maximum weight capacity of 80 kg (176 lbs). Weigh your TV, including any stand hardware left attached to the mounting rails, and confirm you are within this limit before installation, especially with the arm extended to its full reach.

The long double-arm mechanism extends from a minimum of 69mm to a maximum of 1044mm off the wall surface, one of the longest reaches in this mount class, giving excellent access behind the TV for cable connections and flexible viewing positioning.

Yes. The SH-1016P offers plus or minus 60 degree swivel, tilt adjustment of +5 degrees to -15 degrees, and plus or minus 3 degree screen leveling, letting you fine-tune the screen's position and correct for a slightly uneven mount even on large, heavy displays.

The SH-1016P is built from thick cold-rolled and pickling steel with dual square steel tubes (40x25x1.5mm and 50x25x1.5mm), engineered for the higher structural loads and long arm extension involved in mounting screens up to 80 kg securely.

Each SH-1016P ships with the double-arm mounting mechanism, adjustable rail brackets, a hook-on bubble level, a direction indicator, mounting hardware for the TV and wall studs, and printed instructions. It supports both solid wall and double-stud (406mm/450mm/600mm) installations.

Yes, and it is recommended for a mount in this weight and reach class. Mounts.ae offers professional installation as an add-on service across the UAE, with pricing quoted based on your wall type, TV size, and location. Request it by checking the Installation option on the quote form or mentioning it in your WhatsApp message.

The SH-1016P supports both solid wall installation and double-stud setups at standard 406mm, 450mm, or 600mm spacing. Given the 80 kg weight rating and long arm extension, a structural assessment of your wall is recommended, and our installation team can advise on this during a site visit.

The SH-1016P is covered by Mounts.ae's flat 1-year replacement warranty, covering manufacturing defects and product malfunctions. It does not cover normal wear, misuse, or damage from improper installation. If an issue comes up within the warranty period, contact us with your order details and we will arrange a replacement.
