Full-Motion Wall Mount for 37"-80" TVs, Up to 40 kg (VS02SE-466) | VSYS

Screen Size 37" - 80"
Max VESA 600x400mm
Max Weight 40 kg

Want full-motion flexibility on a bigger 37"-80" screen? Request a quote for the VS02SE-466 below.

Overview

The VS02SE-466 is a full-motion wall mount for 37"-80" flat or curved TVs up to 40 kg, extending VESA support up to 600x400mm to cover larger panels than its 400x400mm sibling. The arm folds to 67mm off the wall or reaches out to 355mm, with independent screen-leveling for a straight finish after mounting.

Key Features

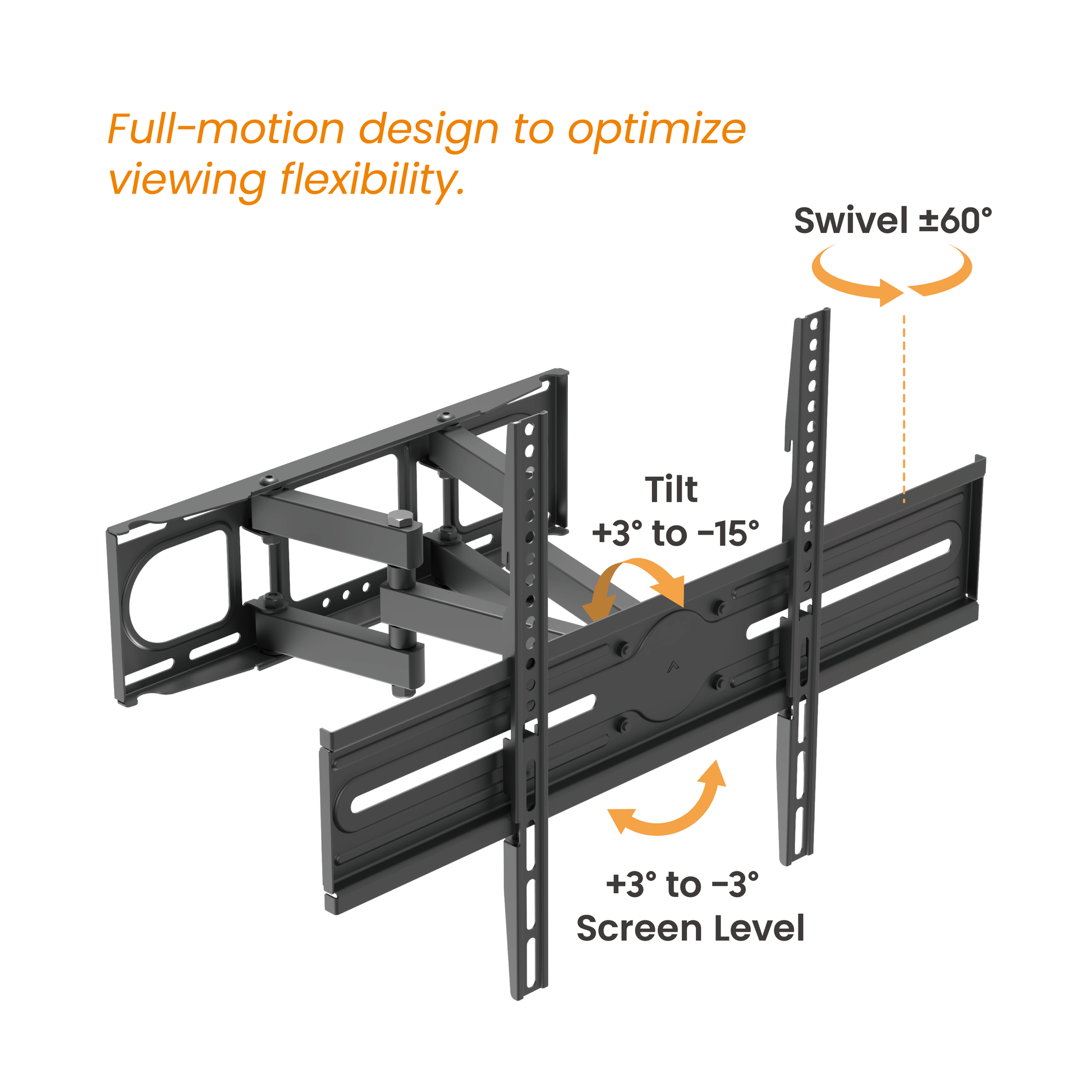

Wide movement range: tilts +3° to -15° and swivels +60° to -60° in each direction, plus a +3° to -3° screen-leveling adjustment.
Large-format VESA support: covers 100x100mm through 600x400mm, fitting most 37"-80" TVs and monitors.

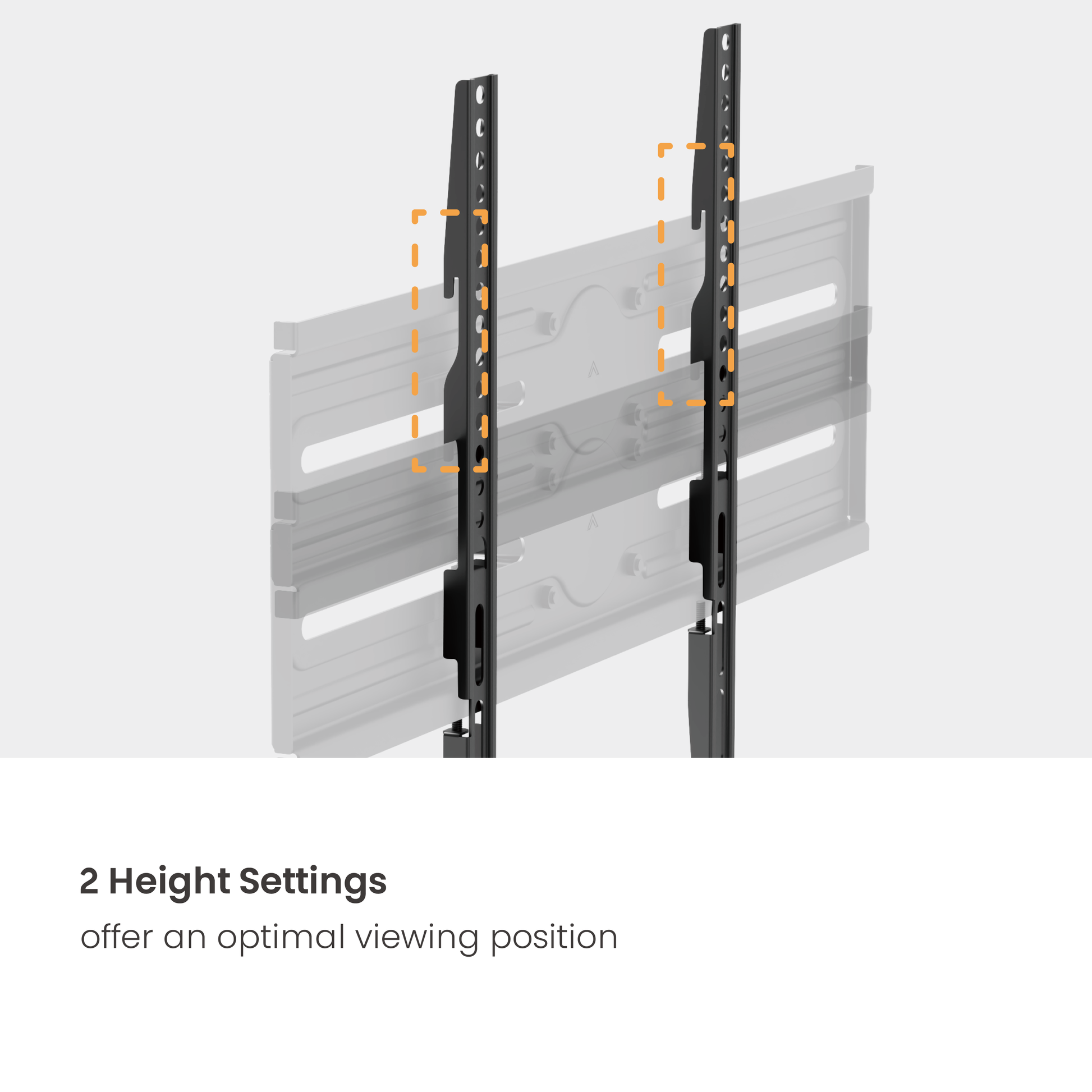

Two-tier height brackets: adjustable bracket position gives finer control over final mounting height.
Reinforced build: steel and reinforced plastic construction, strength-tested for reliable long-term use.
Clean cable routing: hook-and-loop cable management keeps leads tidy through the full range of motion.

Applications

Suited to living rooms and media walls with a large-format TV, open-plan offices where a bigger display needs to angle toward multiple seating areas, and lobby or lounge displays where a single large screen serves the whole space.

Installation & Setup

Mounts to a solid wall or stud using the included wall plate and hardware, with a hook-on bubble level to help get the display straight on the first attempt. Professional installation is available UAE-wide on request through the quote form below.

Why Buy from Mounts.ae?

Commercial-grade mounting hardware backed by our own 1-year replacement warranty
Fast delivery across Dubai, Abu Dhabi, and the wider UAE and GCC
Optional professional installation available UAE-wide, requested on the same quote form
Dedicated support for AV integrators and facilities teams sourcing at scale
Flexible quotes for bulk, corporate, and project-based orders

Ready to fit a large display with real viewing flexibility? Request a quote for the VS02SE-466 today.

View full details

Technical specifications

Load capacity	Up to 40 kg
VESA compatibility	100x100mm - 600x400mm
Screen size range	37" - 80"
Mount movement	Tilt +3 to -15 degrees, Swivel +60 to -60 degrees, Screen level +3 to -3 degrees
Material	Steel and reinforced plastic
Wall clearance	67mm - 355mm
Certifications	Strength tested

Product details

Use the Request a Quote button on this page or message us on WhatsApp for more on the VS02SE-466.

Package Contents

VS02SE-466 full-motion arm, wall plate, mounting hardware bag, hook-on bubble level, and printed installation guide.

Warranty

Mounts.ae backs this mount with a 1-year replacement warranty covering manufacturing defects and product malfunctions. This warranty does not cover damage or performance issues arising from normal usage, misuse, or improper installation. If a genuine manufacturing defect is confirmed within the warranty period, we will replace the product.

Sustainability

Steel construction is fully recyclable at end of life, and packaging uses minimal single-material cardboard.

Expandability

The 100x100mm-600x400mm VESA range covers most future TV upgrades within the 37"-80" size class without needing a new mount.

Distribution

Stocked and shipped from the UAE, with delivery available across Dubai, Abu Dhabi, and the wider GCC.

For more information on the VS02SE-466, use the Request a Quote button on this page or message us on WhatsApp.

Frequently asked questions

What screen sizes fit the VS02SE-466?

Most 37"-80" flat or curved TVs with a VESA mounting pattern between 100x100mm and 600x400mm. Check your display's rear panel or manual to confirm its exact VESA size before ordering.

What is the maximum weight this mount can hold?

The VS02SE-466 is rated for displays up to 40 kg. Confirm your TV's weight on its spec sheet, or use our Find My Mount tool to check compatibility instantly.

What VESA patterns does it support?

It supports VESA patterns from 100x100mm up to 600x400mm, covering most 37"-80" TVs sold today, including large-format and curved-screen models.

How far does the arm extend and how much does it tilt or swivel?

The arm extends from 67mm to 355mm off the wall. The screen tilts +3 to -15 degrees, swivels +60 to -60 degrees in each direction, and has an independent +3 to -3 degree leveling adjustment.

Which TV brands is this mount compatible with?

It works with any TV brand, including Samsung, LG, Sony, Hisense, and TCL, as long as the screen's weight and VESA pattern fall within the mount's supported range.

Does it include a wall plate and mounting hardware?

Yes. The VS02SE-466 ships with its wall plate, a hardware bag, a hook-on bubble level, and a printed installation guide.

How does this differ from the smaller VS02SE-446 mount?

The VS02SE-466 covers a larger 37"-80" size range with VESA support up to 600x400mm, compared with the VS02SE-446's 32"-75" range and 400x400mm maximum.

Does mounts.ae offer installation services?

Yes, professional installation is available UAE-wide as an add-on service. Request it through the same quote form used for the mount, or mention it when messaging us on WhatsApp. See our installation services page for full details on residential and bulk installs.

Where can I buy the VS02SE-466 in the UAE?

Directly from mounts.ae. Use the Request a Quote button on this page or message us on WhatsApp with the product name and SKU to get started.
