Full Motion TV Wall Mount for 17"-37" TVs, Up to 10 kg (FS-401)

Screen Size 17" - 37"

Use the Request a Quote button on this page or message us on WhatsApp to check pricing and availability for the FS-401.

Overview

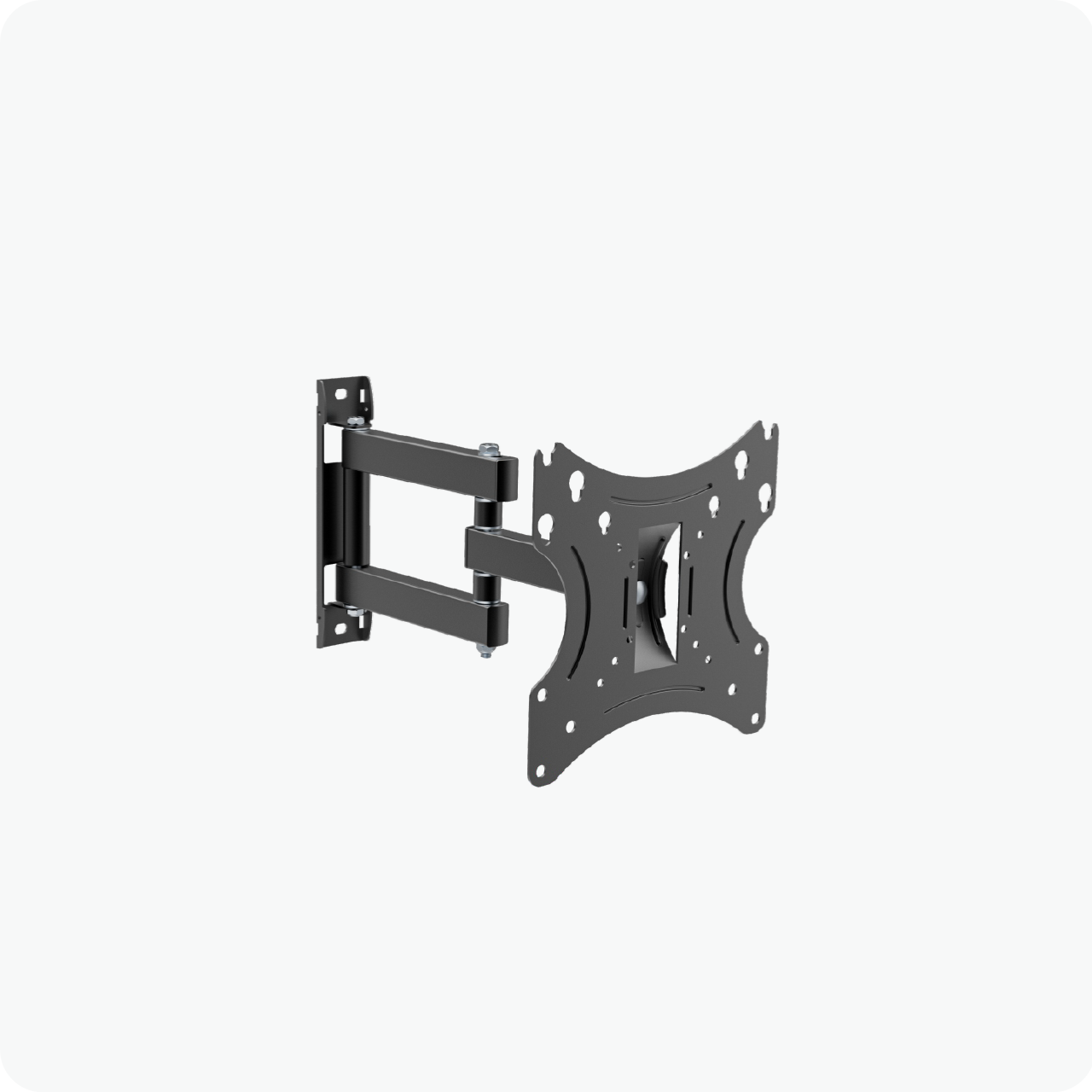

The FS-401 is a full motion wall mount for smaller displays from 17" up to 37", supporting screens up to 10 kg and VESA patterns up to 200x200mm. Unlike a fixed or tilt-only mount, it extends out from the wall between 80mm and 367mm and swivels up to 90° in either direction, letting you pull the screen out and angle it toward any seating position in the room.

With ±15° of tilt on top of the swivel and extension range, the FS-401 gives small and mid-size displays the same flexible positioning normally reserved for larger full-motion mounts.

Key Features

Fits 17"-37" displays: designed for small monitors and compact TVs.
Up to 10 kg load rating: sized for lightweight flat-panel displays in this range.
80-367mm extension: pull the screen away from the wall for a better viewing angle.
±90° swivel: rotate the display toward any part of the room.
±15° tilt: fine-tune the vertical viewing angle.
VESA up to 200x200mm: covers the mounting patterns used by most small monitors and compact TVs.

Applications

The FS-401 suits kitchens, bedrooms, small offices, and workstations across the UAE where a small display needs to swing out and turn toward different seating or standing positions. It also works well for compact monitors in reception desks or corner setups where a fixed angle isn't practical.

Its lighter-duty build is matched to smaller, lighter screens, so it isn't intended for TVs above its 10 kg and 37" limits.

Installation & Setup

Installation involves fixing the wall plate to a solid wall, attaching the arm assembly to the display's VESA points, then mounting the arm to the wall plate and testing the swivel, tilt, and extension range before final tightening.

If you'd rather not handle the installation yourself, mounts.ae also offers professional installation across the UAE. Select the installation option when you submit the quote form.

Why Buy the FS-401 from Mounts.ae?

Reliable build quality, backed by our own warranty support
Full swivel, tilt, and extension range for flexible small-screen positioning
Fast delivery across Dubai, Abu Dhabi, and the wider UAE/GCC
Optional professional installation available UAE-wide, request it on the same quote form
Flexible quotes for bulk, corporate, and project-based orders

For project quantities or more information on the FS-401, use the Request a Quote button on this page or message us on WhatsApp.

View full details

Technical specifications

Load capacity	10 kg (22 lbs)
VESA compatibility	Up to 200x200mm
Screen size range	17" - 37"
Mount movement	Full Motion (swivel ±90°, tilt ±15°)
Wall clearance	80mm - 367mm (extendable)

Product details

Use the Request a Quote button on this page or message us on WhatsApp to check pricing and availability for the FS-401.

Package Contents

Full motion arm assembly, wall plate, and the mounting hardware kit needed for installation on a solid wall.

Warranty

Every product from Mounts.ae is backed by a 1-year replacement warranty covering manufacturing defects and product malfunctions. This warranty does not cover damage or performance issues arising from normal usage, misuse, or improper installation. If a genuine manufacturing defect is confirmed within the warranty period, we will replace the product.

Sustainability

The FS-401 is built for a long service life across repeated swivel, tilt, and extension use.

Expandability

Its VESA compatibility of up to 200x200mm means it can accommodate a range of compatible small displays as your setup changes.

Distribution

Stocked and distributed by Mounts.ae across Dubai, Abu Dhabi, and the wider UAE and GCC region.

For more information or bulk pricing, use the Request a Quote button on this page or message us on WhatsApp.

Frequently asked questions

What is the maximum TV size the FS-401 supports?

The FS-401 is rated for displays from 17" up to 37", making it suitable for small monitors and compact TVs.

How much weight can the FS-401 hold?

The FS-401 has a maximum load capacity of 10 kg (22 lbs), sized for lightweight flat-panel displays in this range.

What VESA patterns is the FS-401 compatible with?

The FS-401 supports VESA mounting patterns up to 200x200mm, covering the hole patterns used by most small monitors and compact TVs.

How far can the FS-401 extend from the wall?

The FS-401 extends from 80mm up to 367mm from the wall, letting you pull the screen out for a closer or more flexible viewing position.

Does the FS-401 swivel and tilt?

Yes. The FS-401 swivels up to ±90° and tilts up to ±15°, so the screen can be turned and angled toward almost any position in the room.

Will the FS-401 fit my TV brand?

The FS-401 is a universal wall mount designed to work with any display brand that falls within its supported screen size, weight, and VESA range. Check your display's VESA pattern and weight against these specs before ordering.

Can Mounts.ae install the FS-401 for me?

Yes. Mounts.ae offers professional installation as an add-on service across the UAE. Select the installation option on the quote form or mention it when you message us on WhatsApp. See our installation services page for full details on residential and bulk installs.

Can I order the FS-401 in bulk for a project?

Yes. We regularly supply AV integrators, contractors, and facilities teams with bulk orders. Submit a quote request with your required quantity and we'll respond with availability and lead time.

Where can I buy the FS-401 in the UAE?

You can request a quote directly on this page or message us on WhatsApp, and the Mounts.ae team will confirm availability and delivery across Dubai, Abu Dhabi, and the wider UAE.
