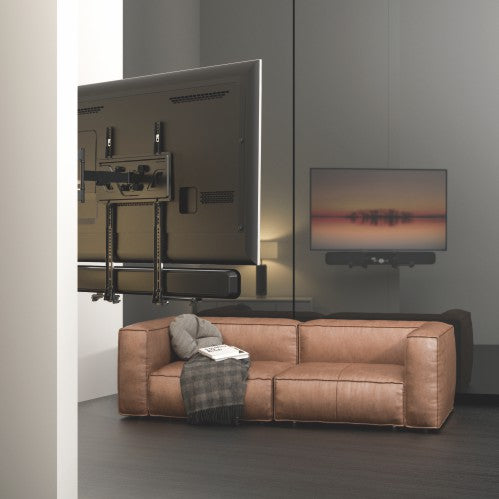

  • VSYS VSSB-49 soundbar bracket installed below wall-mounted TV

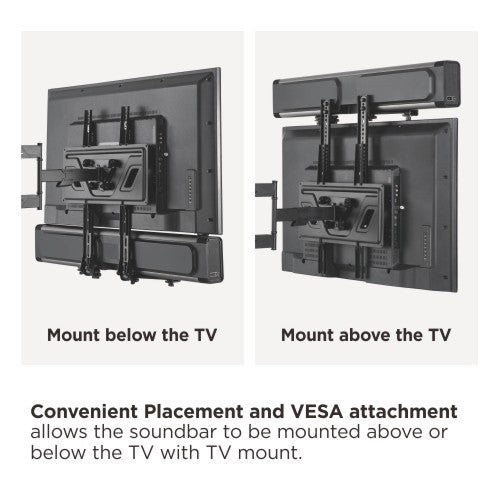

  • VSYS VSSB-49 bracket mounting above or below the TV

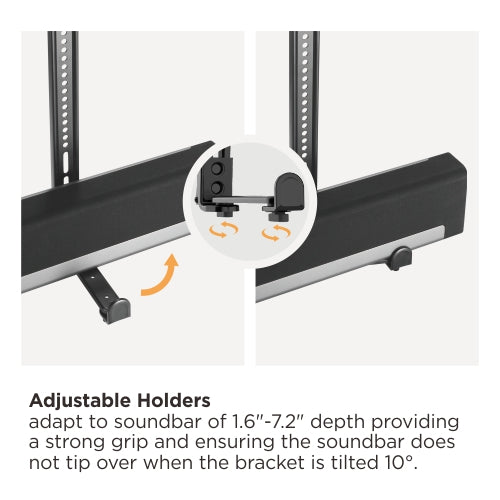

  • VSYS VSSB-49 adjustable depth holders feature
1 4

VSYS

Soundbar Mounting Bracket for TVs, Up to 15 kg Soundbars (VSSB-49) | VSYS

Soundbar Mounting Bracket for TVs, Up to 15 kg Soundbars (VSSB-49) | VSYS

  • Screen Size Fits soundbars 20" - 45" wide

Request a Quote

Soundbar Mounting Bracket for TVs, Up to 15 kg Soundbars (VSSB-49) | VSYS — SKU: VSSB-49

 Chat on WhatsApp

Want your soundbar sitting flush with the TV instead of on a shelf? Request a quote for the VSSB-49 below.

Overview

The VSSB-49 is a soundbar mounting bracket that attaches directly to a TV's existing VESA mounting holes, letting the soundbar sit neatly above or below the screen instead of taking up shelf space. It fits soundbars from 508mm to 1143mm (20"-45") wide and up to 15 kg, with adjustable depth holders for soundbars between 40mm and 182mm deep.

Key Features

  • No extra drilling: attaches to the TV's own VESA mounting holes, so the soundbar moves with the TV mount.
  • Mount above or below: works on either side of the TV depending on your layout and cable routing.
  • Adjustable depth holders: fit soundbars 1.6"-7.2" deep with a firm, anti-tip grip, even when the bracket is tilted 10°.
  • Adjustable height: fine-tune the gap between the TV and soundbar for a near-seamless look.
  • Steel and powder-coated construction: built to hold soundbars up to 15 kg securely in place.

Applications

A neat fit for living rooms and home theaters where shelf space under the TV is limited, wall-mounted TV setups where a floor-standing or shelf soundbar isn't practical, and commercial displays in meeting rooms or lobbies with integrated audio.

Installation & Setup

Bolts directly to the TV's rear VESA holes using the included hardware, then the soundbar slides into the adjustable holders and locks in place. No wall drilling is required beyond whatever the TV mount itself already needs. Professional installation is available UAE-wide on request through the quote form below.

Why Buy from Mounts.ae?

  • Commercial-grade mounting hardware backed by our own 1-year replacement warranty
  • Fast delivery across Dubai, Abu Dhabi, and the wider UAE and GCC
  • Optional professional installation available UAE-wide, requested on the same quote form
  • Dedicated support for AV integrators and facilities teams sourcing at scale
  • Flexible quotes for bulk, corporate, and project-based orders

Ready to give your soundbar a permanent home next to the TV? Request a quote for the VSSB-49 today.

View full details

Technical specifications

Load capacity Up to 15 kg (soundbar)
VESA compatibility Attaches to TV's existing VESA holes
Screen size range Fits soundbars 20" - 45" wide
Mount movement Tilts 10 degrees, adjustable height and depth
Material Steel and plastic, powder-coated finish
Wall clearance Profile adjustment 77mm - 215mm
Certifications Not specified by manufacturer

Product details

Use the Request a Quote button on this page or message us on WhatsApp for more on the VSSB-49.

Package Contents

VSSB-49 soundbar bracket pair, VESA mounting hardware, adjustable depth holders, and printed installation guide.

Warranty

Mounts.ae backs this bracket with a 1-year replacement warranty covering manufacturing defects and product malfunctions. This warranty does not cover damage or performance issues arising from normal usage, misuse, or improper installation. If a genuine manufacturing defect is confirmed within the warranty period, we will replace the product.

Sustainability

Steel construction is fully recyclable at end of life, and packaging uses minimal single-material cardboard.

Expandability

The adjustable depth holders (1.6"-7.2") and height adjustment fit most soundbars you might upgrade to later, within the 20"-45" width range.

Distribution

Stocked and shipped from the UAE, with delivery available across Dubai, Abu Dhabi, and the wider GCC.

For more information on the VSSB-49, use the Request a Quote button on this page or message us on WhatsApp.

Frequently asked questions

What soundbar sizes fit the VSSB-49?

Soundbars from 508mm to 1143mm (20"-45") wide and up to 182mm (7.2") deep, weighing up to 15 kg. Measure your soundbar's width and depth before ordering to confirm fit.

Does this bracket mount above or below the TV?

Both. The VSSB-49 is designed to work on either side of the TV, so you can position the soundbar wherever suits your room layout and cable routing best.

Does it require drilling into the wall?

No. It attaches directly to the TV's existing rear VESA mounting holes, so no separate wall drilling is needed beyond whatever your TV mount already requires.

Can the soundbar tilt once mounted?

Yes, the bracket allows up to 10 degrees of tilt while maintaining a firm, anti-tip grip on the soundbar.

Will this work with any TV brand?

Yes, as long as your TV has standard VESA mounting holes on the rear panel, the VSSB-49 will attach regardless of TV brand.

Does it include all mounting hardware?

Yes. The VSSB-49 ships as a pair of brackets with VESA mounting hardware, adjustable depth holders, and a printed installation guide.

Does mounts.ae offer installation services?

Yes, professional installation is available UAE-wide as an add-on service. Request it through the same quote form used for this bracket, or mention it when messaging us on WhatsApp. See our installation services page for full details on residential and bulk installs.

Where can I buy the VSSB-49 in the UAE?

Directly from mounts.ae. Use the Request a Quote button on this page or message us on WhatsApp with the product name and SKU to get started.
