Low-Profile Fixed TV Wall Mount for 37"-86" TVs, Up to 45 kg (VS01E-46F) | VSYS

Screen Size 37" - 86"
Max VESA 600x400mm
Max Weight 45 kg

Use the Request a Quote button on this page or message us on WhatsApp to check pricing and availability for the VS01E-46F.

Overview

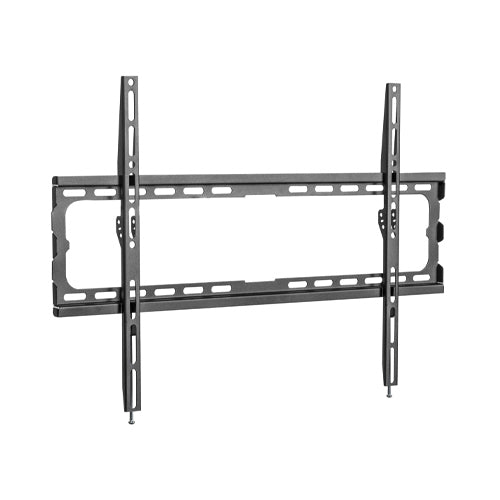

The VSYS VS01E-46F is a slim, low-profile fixed wall mount that holds TVs and displays from 37" up to 86" tight and flush against the wall. Built from 1.4mm cold-rolled steel with a fine-texture black powder-coated finish, it supports screens up to 45 kg and covers a wide VESA range up to 600x400mm, making it a dependable option for larger commercial and consumer displays that still need a simple, low-cost fixed installation.

At just 20mm deep, it keeps the screen almost flush to the wall for a clean, modern look, while an open-frame design leaves room behind the panel for cabling and airflow. It's a straightforward, economical choice for fixed-mount projects where the display simply needs to stay securely in place.

Key Features

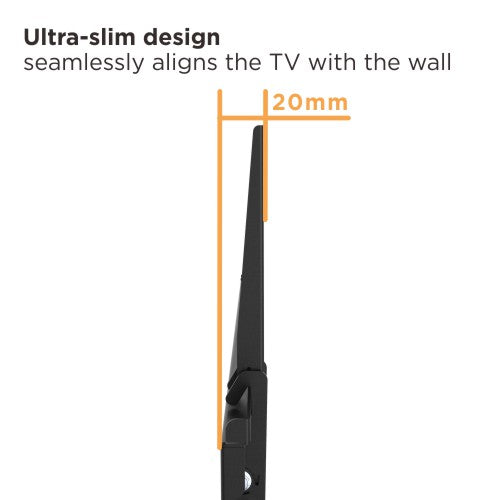

Slim 20mm profile: holds larger TVs almost flush to the wall for a tidy, modern finish.
Holds 37"-86" TVs up to 45 kg: 1.4mm cold-rolled steel construction, strength-tested four times for dependable support.
Wide VESA range: supports patterns from 200x200mm up to 600x400mm, covering most larger TVs in this size class.

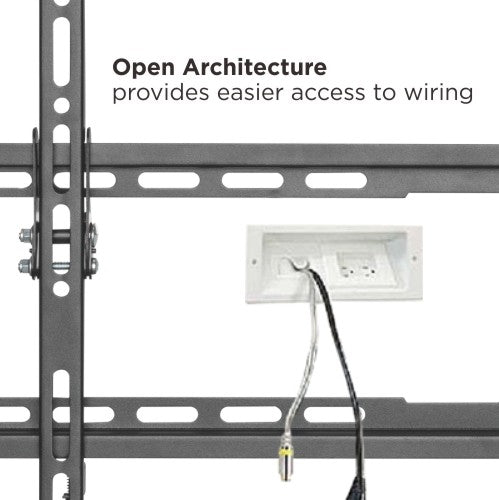

Open-frame design: leaves space behind the screen for cable access and ventilation.

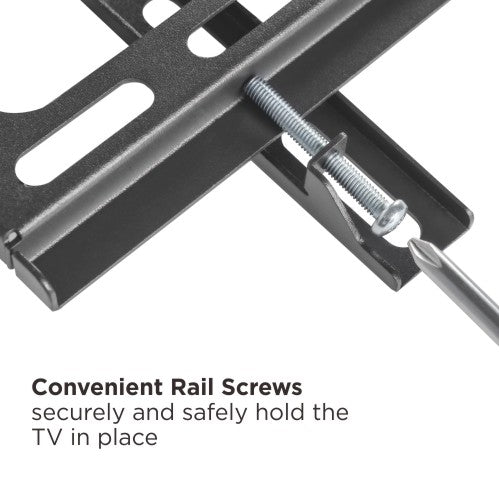

Security screws included: lock the TV to the bracket to deter tampering and accidental removal.
Solid-wall and dual-stud mounting: compatible with 406mm, 450mm, and 600mm stud spacing.
Reduced packaging: a compact shipping footprint lowers freight and storage costs on volume and project orders.

Applications

The VS01E-46F suits high-volume, cost-sensitive fixed-mount projects across the UAE and GCC: hotel guest rooms, retail signage, classrooms, clinics, and staff areas, anywhere a larger screen needs a slim, reliable fixed mount at a sensible price. Its low profile and wide VESA coverage also make it a solid fit for larger residential and light-commercial living-room installs.

Because it spans 37"-86" and a wide VESA window up to 600x400mm, a single mount model covers a broad mix of larger screen sizes across a project, simplifying procurement and installation for integrators fitting out multiple rooms.

Installation & Setup

Fix the wall plate to a solid wall or across dual studs (406/450/600mm spacing) with the appropriate fixings, then attach the bracket arms to the TV's VESA points. Lift the display onto the wall plate and fit the security screws to lock it in place. Allow for the slim 20mm profile plus your cabling when planning outlet positions behind the screen.

If you'd rather not handle the installation yourself, mounts.ae also offers professional installation across the UAE. Simply select the installation option when you submit the quote form.

Why Buy the VS01E-46F from Mounts.ae?

Genuine VSYS build quality, backed by our own warranty support
Fast delivery across Dubai, Abu Dhabi, and the wider UAE/GCC
Optional professional installation available UAE-wide, request it on the same quote form
Dedicated guidance for AV integrators, system integrators, and facilities teams sourcing at scale
Flexible quotes for bulk, corporate, and project-based orders

For project quantities or full technical documentation, use the Request a Quote button on this page or message us on WhatsApp.

View full details

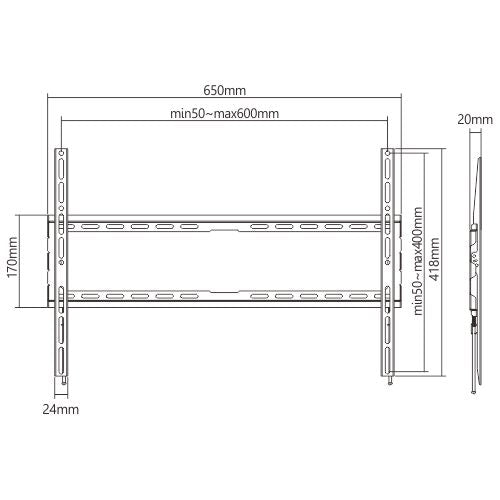

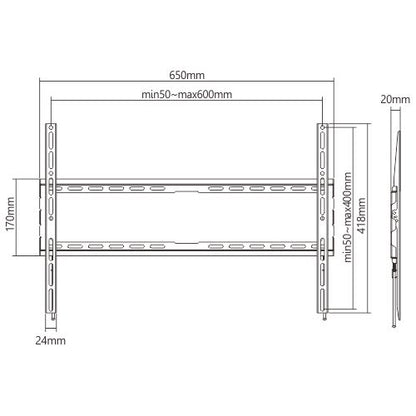

Technical specifications

Load capacity	45 kg (99 lbs)
VESA compatibility	200x200mm - 600x400mm
Screen size range	37" - 86"
Mount movement	Fixed (low-profile)
Material	1.4mm cold-rolled steel, powder-coated black
Wall clearance	20mm (0.79")
Certifications	Strength tested 4x

Product details

Use the Request a Quote button on this page or message us on WhatsApp for more on the VS01E-46F.

Package Contents

Each VS01E-46F ships with the wall plate, bracket arms, security screws, a full mounting hardware kit for solid-wall or dual-stud installation, and printed installation instructions.

Warranty

Every VSYS product from Mounts.ae is backed by a 1-year replacement warranty covering manufacturing defects and product malfunctions. This warranty does not cover damage or performance issues arising from normal usage, misuse, or improper installation. If a genuine manufacturing defect is confirmed within the warranty period, we will replace the product.

Sustainability

The VS01E-46F is built from cold-rolled steel, a fully recyclable material, with a durable powder-coated finish designed to resist corrosion and wear over years of use, reducing the need for replacement.

Expandability

The VS01E-46F's wide VESA range (200x200mm to 600x400mm) means it can accommodate a range of display sizes and models within its rated class, giving you flexibility if you upgrade to a different screen later without needing a new mount.

Distribution

Mounts.ae holds VSYS stock in the UAE for fast dispatch, with delivery available across Dubai, Abu Dhabi, and the wider GCC.

For more information on the VS01E-46F, use the Request a Quote button on this page or message us on WhatsApp.

Frequently asked questions

What size TVs does this wall mount support?

The VS01E-46F is designed for flat TVs and displays from 37 up to 86 inches. As long as your screen falls within that size range and its weight and VESA pattern match the mount's specifications, it will fit securely, covering the large majority of larger TVs in this class.

What is the maximum weight it can hold?

It carries TVs up to 45 kg (99 lbs). The bracket arms and wall plate are made from 1.4mm cold-rolled steel and the design is strength-tested four times, giving a dependable safety margin for a slim, economical fixed mount.

What VESA patterns is it compatible with?

It supports VESA mounting patterns from 200x200mm up to 600x400mm. That range covers the vast majority of 37 to 86 inch TVs; check the pattern on the back of your screen or in its manual to confirm the fit.

Which TV brands does this mount work with?

Because it covers VESA patterns up to 600x400mm and loads up to 45 kg, it fits most 37 to 86 inch TVs from major brands including Samsung, LG, Sony, Hisense, TCL, and Philips. Always check your TV's VESA pattern and weight in its manual, or send us the model number and we'll confirm compatibility.

How far does the TV sit from the wall?

This is a slim low-profile mount with just a 20mm (0.79 inch) depth, holding the TV almost flush to the wall for a clean, modern finish. Its open-frame design still leaves room behind the screen for cable access and ventilation.

Does this mount tilt or swivel?

No, this is a fixed low-profile mount, designed to hold the TV flush and stationary against the wall. If you need downward tilt or full-motion movement, ask us about our tilt and full-motion mount ranges for the right alternative.

Does mounts.ae offer installation services?

Yes. Mounts.ae offers professional installation across the UAE as an add-on to your order. Simply select the installation option when you submit the Request a Quote form, or mention it when you message us on WhatsApp, and we'll include it in your quote alongside the mount itself. See our installation services page for full details on residential and bulk installs.

How do I order this for a bulk or project installation?

Use the Request a Quote button on this page, or message us on WhatsApp with your quantity and project details. We supply system integrators and businesses on a project basis across the UAE and GCC, and we'll follow up with next steps for your requirement.

Where can I buy VSYS wall mounts?

VSYS wall mounts are available through mounts.ae, based in the UAE and serving system integrators and businesses across the UAE and GCC. Use the Request a Quote button on this page, or message mounts.ae directly on WhatsApp, to get started with your order or enquiry.
