Technical specifications
| Load capacity | Up to 70 kg (TV), 5 kg per shelf |
|---|---|
| VESA compatibility | 200x200mm - 600x400mm |
| Screen size range | 37" - 70" |

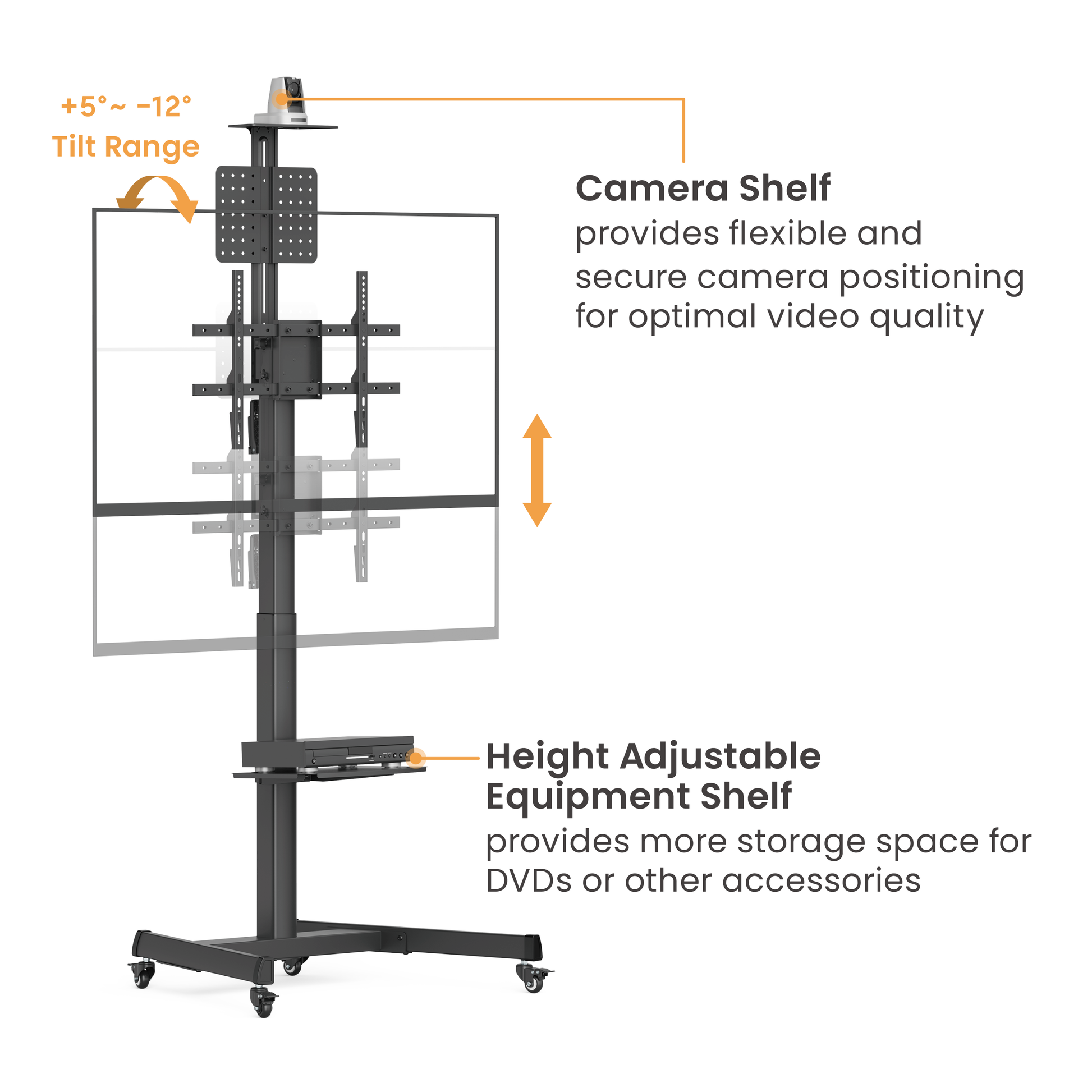

| Mount movement | Tilt +5 to -12 degrees, rotation 0 to 90 degrees (portrait or landscape) |
| Material | Steel and plastic, matte black powder coating |
| Wall clearance | Height adjustable 450mm range (crank handle) |
| Certifications | Strength tested 4x |
Product details
Product details
Use the Request a Quote button on this page or message us on WhatsApp for more on the VTLS17H-46TW.
Package Contents

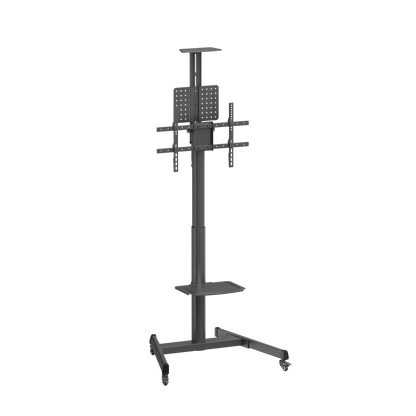

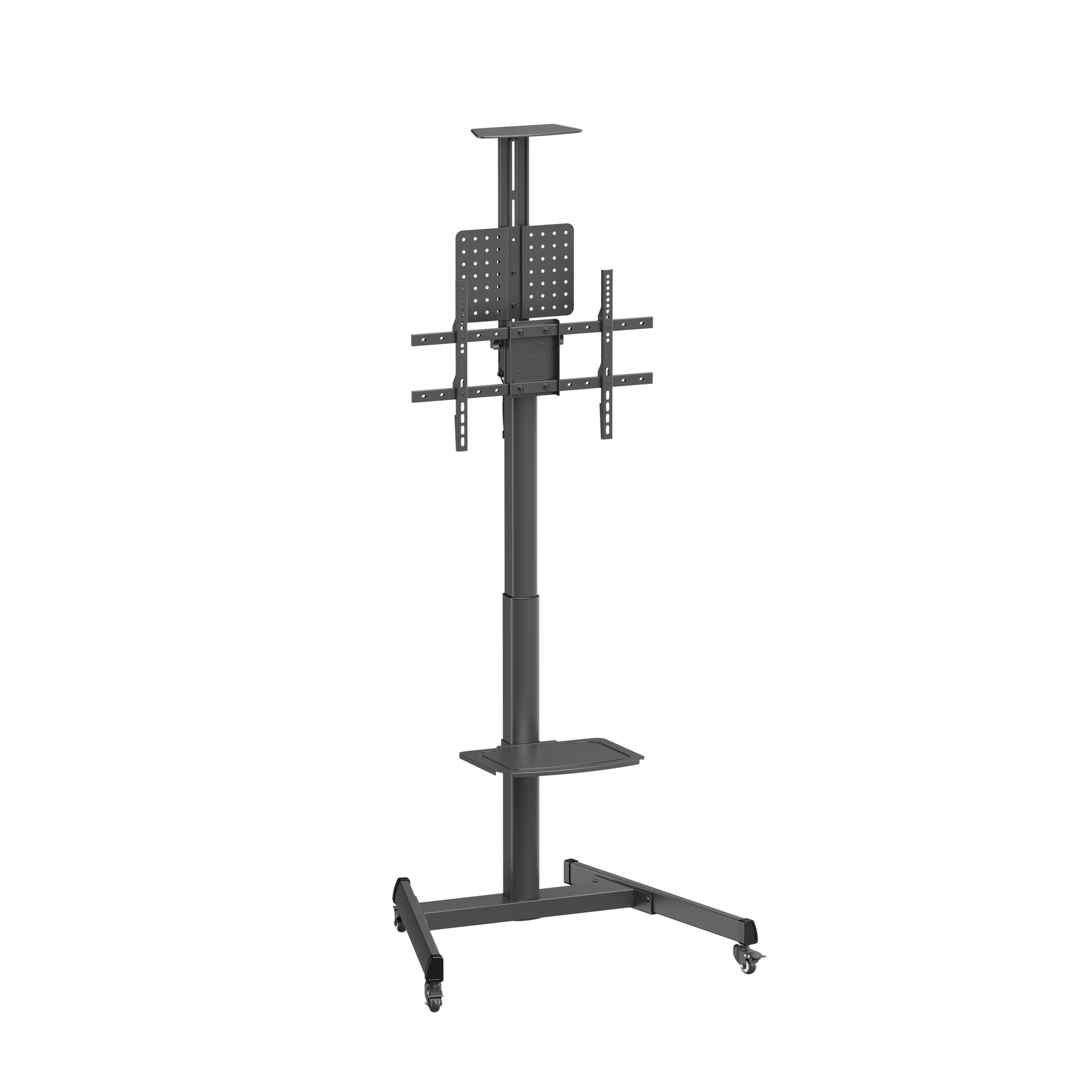

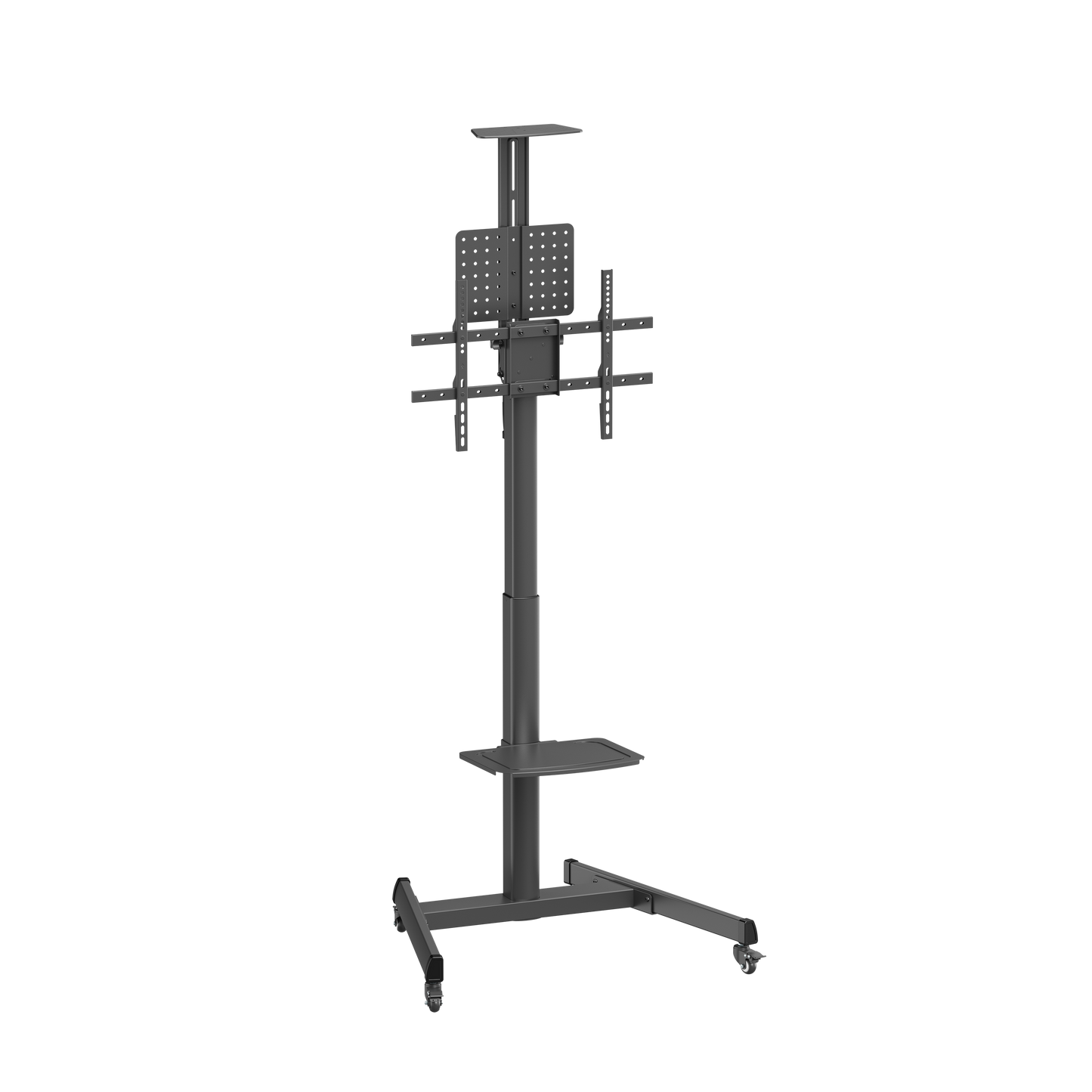

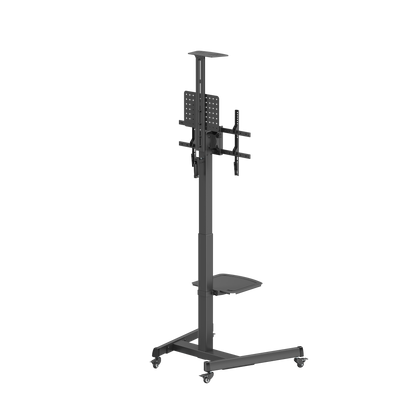

VTLS17H-46TW steel column, TV bracket, crank handle mechanism, pegboard storage panel, height-adjustable equipment and camera shelves, caster base, mounting hardware bag, and printed assembly guide.
Warranty
Mounts.ae backs this cart with a 1-year replacement warranty covering manufacturing defects and product malfunctions. This warranty does not cover damage or performance issues arising from normal usage, misuse, or improper installation. If a genuine manufacturing defect is confirmed within the warranty period, we will replace the product.
Sustainability
Steel construction is fully recyclable at end of life, and packaging uses minimal single-material cardboard.
Expandability
The 200x200mm-600x400mm VESA range and dual adjustable shelves accommodate most future TV and AV equipment upgrades within the 37"-70" size class.
Distribution
Stocked and shipped from the UAE, with delivery available across Dubai, Abu Dhabi, and the wider GCC.
For more information on the VTLS17H-46TW, use the Request a Quote button on this page or message us on WhatsApp.
Frequently asked questions
What screen sizes fit the VTLS17H-46TW?
What screen sizes fit the VTLS17H-46TW?
Most 37"-70" flat or curved TVs with a VESA mounting pattern between 200x200mm and 600x400mm. Check your display's rear panel or manual to confirm its exact VESA size before ordering.
What is the maximum weight this cart can hold?
What is the maximum weight this cart can hold?
The TV bracket is rated for displays up to 70 kg, with the equipment and camera shelves each rated to 5 kg. Confirm your TV's weight on its spec sheet, or use our Find My Mount tool to check compatibility instantly.

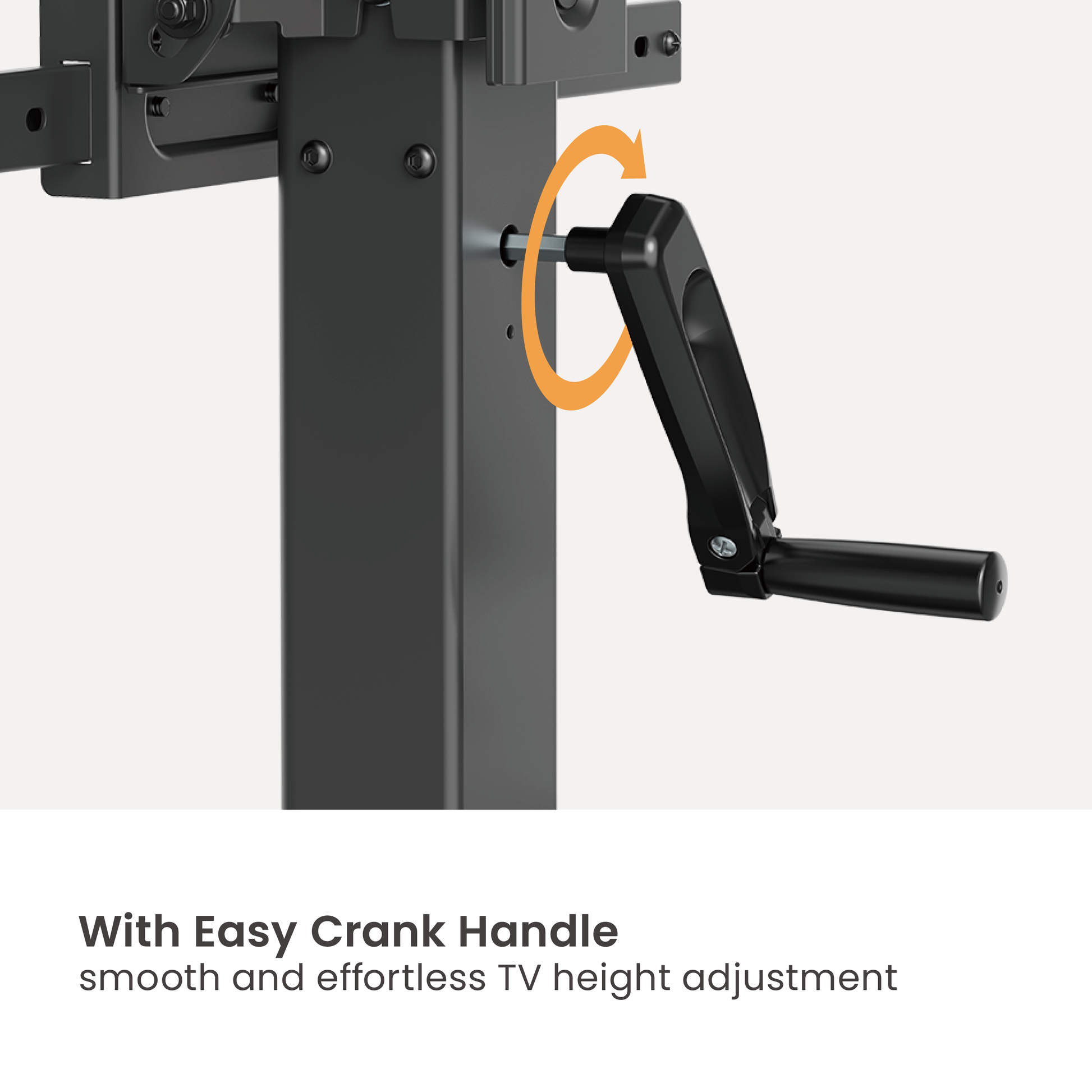

How does the crank handle height adjustment work?
How does the crank handle height adjustment work?
Turning the crank handle smoothly raises or lowers the column across a 450mm range, giving finer control than a spring-lock mechanism.
What is the pegboard panel for?
What is the pegboard panel for?
It gives you a dedicated place to organize cables, hooks, and small accessories directly on the cart, instead of leaving them loose or taped down.
Can the TV be rotated to portrait orientation?
Can the TV be rotated to portrait orientation?
Yes, the bracket rotates 0 to 90 degrees, making it suitable for both standard landscape TV viewing and portrait-orientation digital signage.
Which TV brands is this cart compatible with?
Which TV brands is this cart compatible with?
It works with any TV brand, including Samsung, LG, Sony, Hisense, and TCL, as long as the screen's weight and VESA pattern fall within the cart's supported range.
Does mounts.ae offer installation services?
Does mounts.ae offer installation services?
Yes, professional assembly and installation are available UAE-wide as an add-on service. Request it through the same quote form used for the cart, or mention it when messaging us on WhatsApp. See our installation services page for full details on residential and bulk installs.
Where can I buy the VTLS17H-46TW in the UAE?
Where can I buy the VTLS17H-46TW in the UAE?
Directly from mounts.ae. Use the Request a Quote button on this page or message us on WhatsApp with the product name and SKU to get started.
